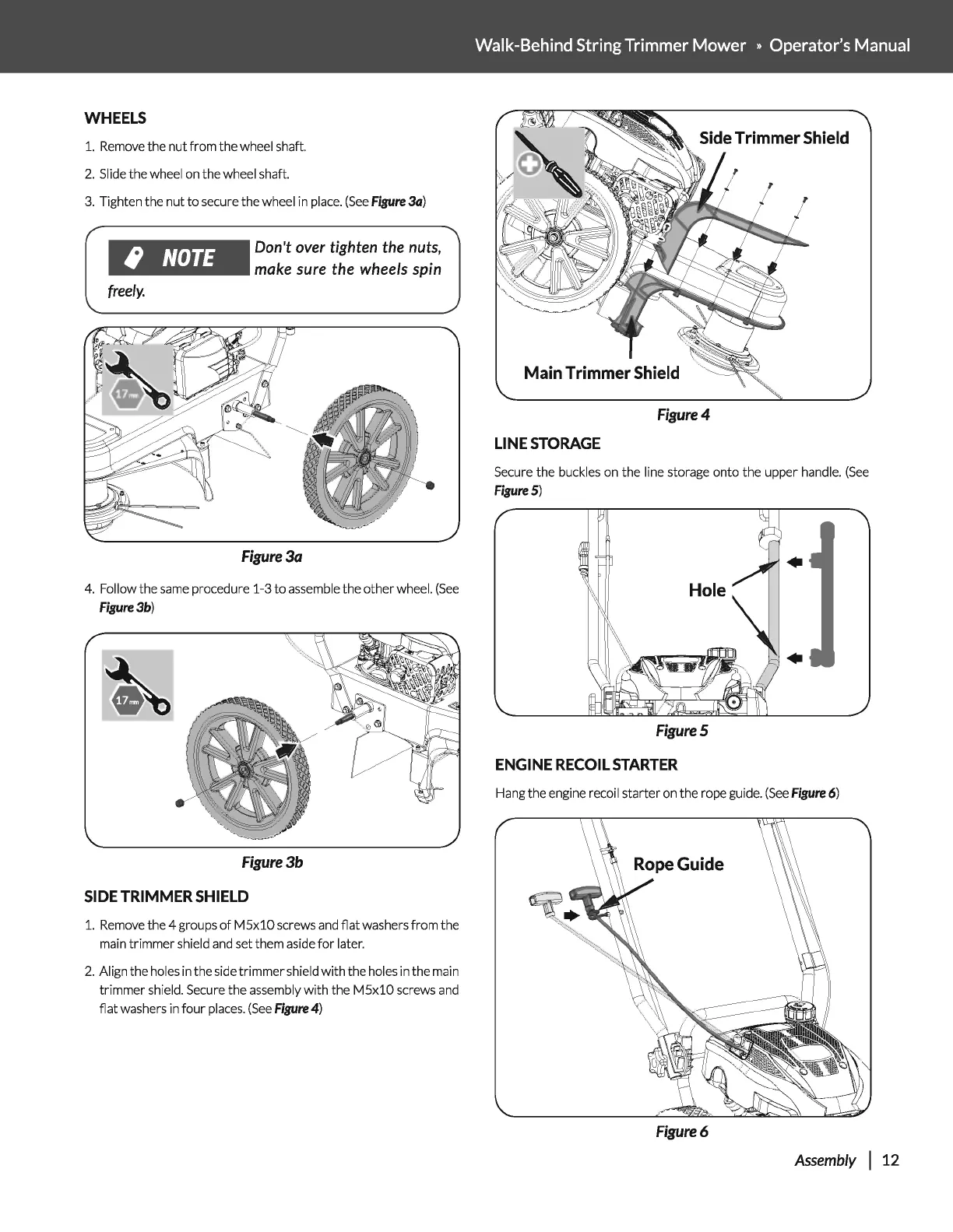

WHEELS
1. Remove the nut from the wheel shaft.
2. Slide the wheel on the wheel shaft.
3. Tighten the nut to secure the wheel in place. (See Figure 3a)
~ NOTE
freely.
Don't over tighten the nuts,
make sure the wheels spin
Figure3a
4. Follow the same procedure 1-3 to assemble the other wheel. (See
Figure3b)
Figure3b
SIDE TRIMMER SHIELD
1. Remove the 4 groups of M5x10 screws and flat washers from the
main trimmer shield and set them aside for later.
2. Align the holes in the side trimmer shield with the holes in the main
trimmer shield. Secure the assembly with the M5x10 screws and
flat washers in four places. (See Figure4)
Walk-Behind String Trimmer Mower » Operator's Manual
Figure4
LINE STORAGE
Secure the buckles on the line storage onto the upper handle. (See
FigureS)
FigureS
ENGINE RECOIL STARTER
Hang the engine recoil starter on the rope guide. (See Figure 6)
Figure6
