YARDMAX YL2250 - Machine Assembly Steps

ASSEMBLY
This walk-behind string trimmer mower was partially assembled at the factory. To assemble your machine follow the below instructions.
UPPER HANDLE
1. Loosen both of the handle adjustment knobs enough and pivot the upper handle backward to the desired position.
2. Stand in the operator's position behind the trimmer to make sure the handle is adjusted to a comfortable position.

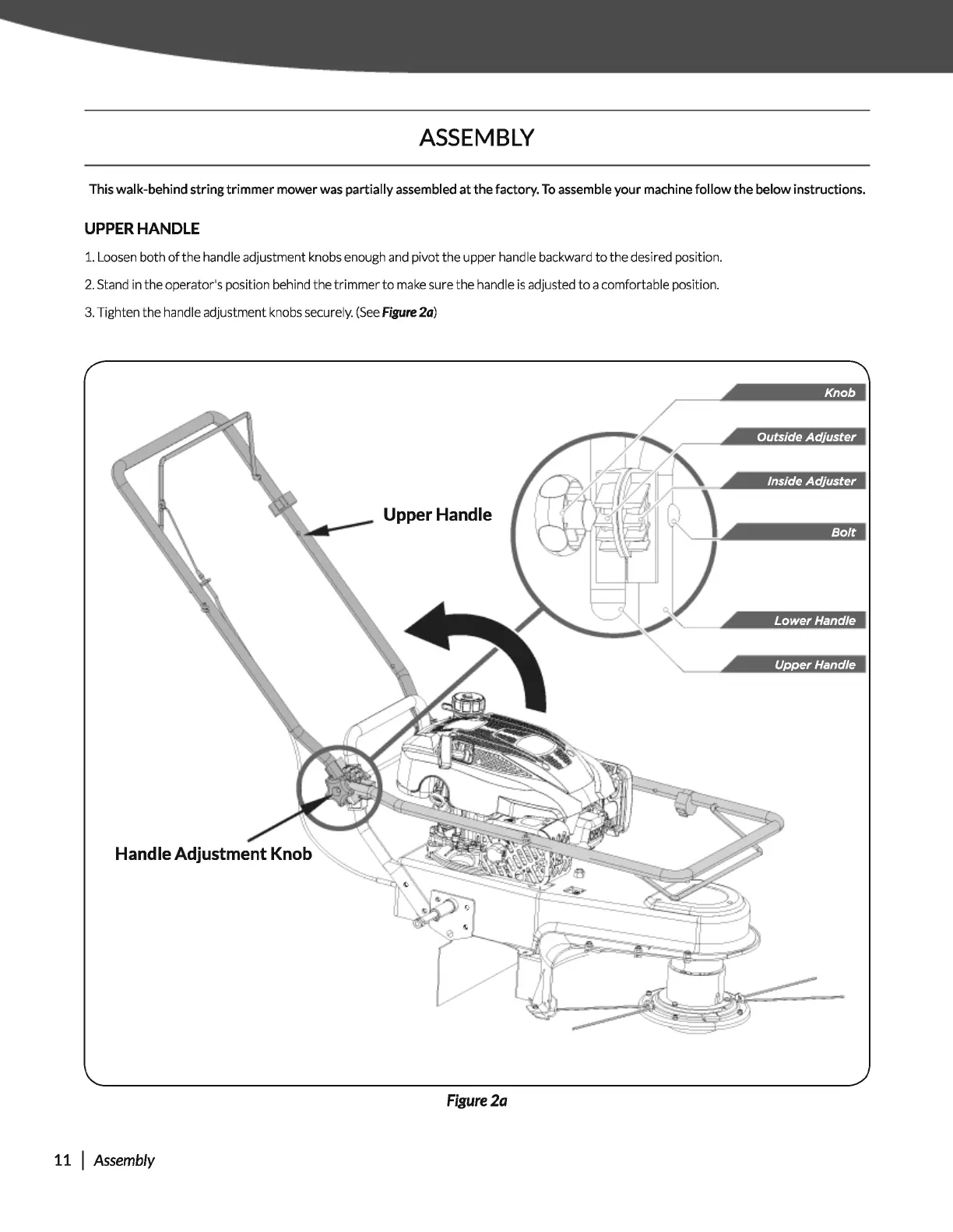

3. Tighten the handle adjustment knobs securely. (See Figure 2a)
Knob
Outside Adjuster
Upper Handle
\'1. :
Upper Handle
Figure2a
11 I Assembly
