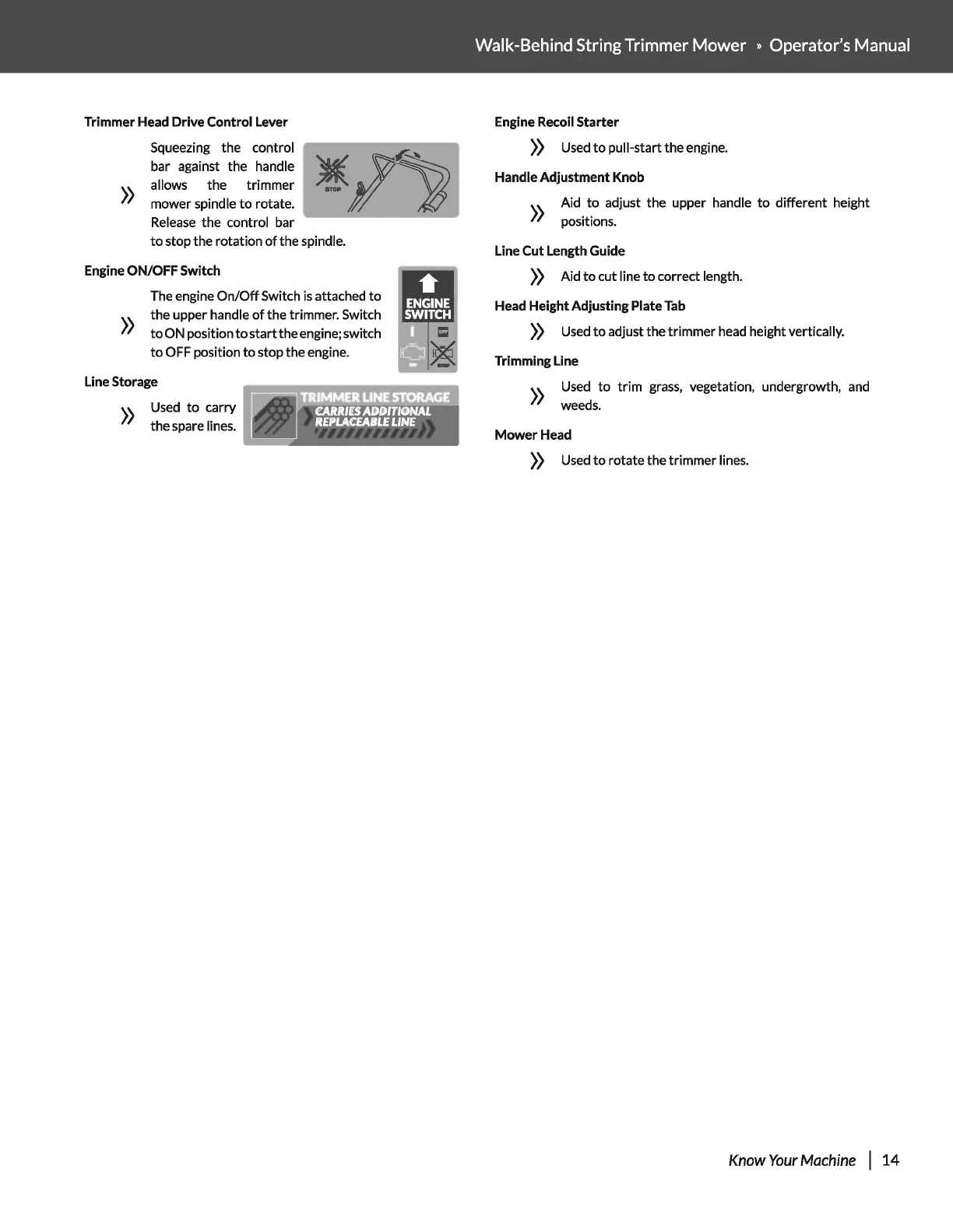

Trimmer Head Drive Control Lever
Squeezing the control
bar against the handle
allows the trimmer
)) mower spindle to rotate.
"""'~
:lit.
Release the control bar ---------
to stop the rotation of the spindle.
Engine ON/OFF Switch
The engine
On/Off Switch is attached to
)) the upper handle of the trimmer. Switch
to ON position to start the engine; switch
to OFF position to stop the engine.
Line Storage
)) Used to carry
the spare lines.
Walk-Behind String Trimmer Mower » Operator's Manual
Engine Recoil Starter
)) Used to pull-start the engine.
Handle Adjustment Knob
)) Aid. t.o adjust the upper handle to different height
pos1t1ons.
Line Cut Length Guide
)) Aid to cut line to correct length.
Head Height Adjusting Plate
Tab
)) Used to adjust the trimmer head height vertically.
Trimming Line
\.\.
Used to trim grass, vegetation, undergrowth, and
// weeds.
Mower Head
)) Used to rotate the trimmer lines.
