YARDMAX YM0146 User Manual

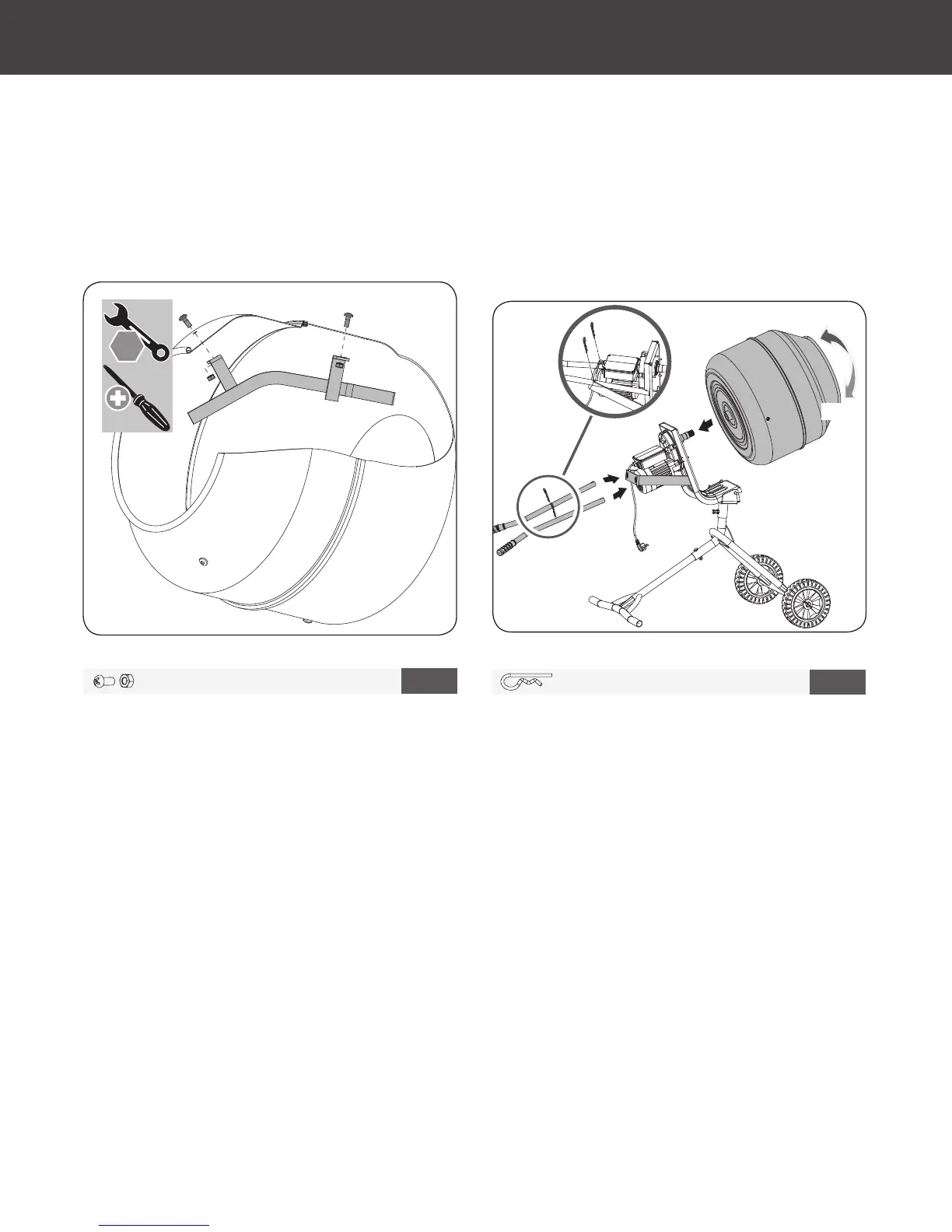

1. Insert a M12x25 philips screw from outside through the hole
in the drum. Mount the mixing blade on the screw from inside.
Secure it loosely with a M12 nut. (See Figure 2)
2. Repeat the above step to secure the second mixing blade to the
inside of the drum.
3. Finally, tighten all nuts and bolts to tightly secure blades.
1. Mount the cement mixer drum onto the gear box shaft. Turn
the drum clockwise on the gear box shaft thread until the shaft
is completely located in the drum. (See Figure 3)
2. Slide drum handles through holes in the drum support frame
and notches.
3. Insert the R-pins through the holes in the handles to hold them
in place.
Figure 2
Figure 3
DRUM AND DRUM HANDLESMIXING BLADES
16 mm
13 mm
18 mm
19 mm
30 mm
32 mm
M12 × 25 × 4
4
Ø 3.5 × 2
5
Tight
Loose
8
Electric Concrete Mixer
»
Operator’s Manual
Assembly
|
