This concrete mixer is partially assembled at the factory. To assemble your machine follow the below instructions.
ASSEMBLY

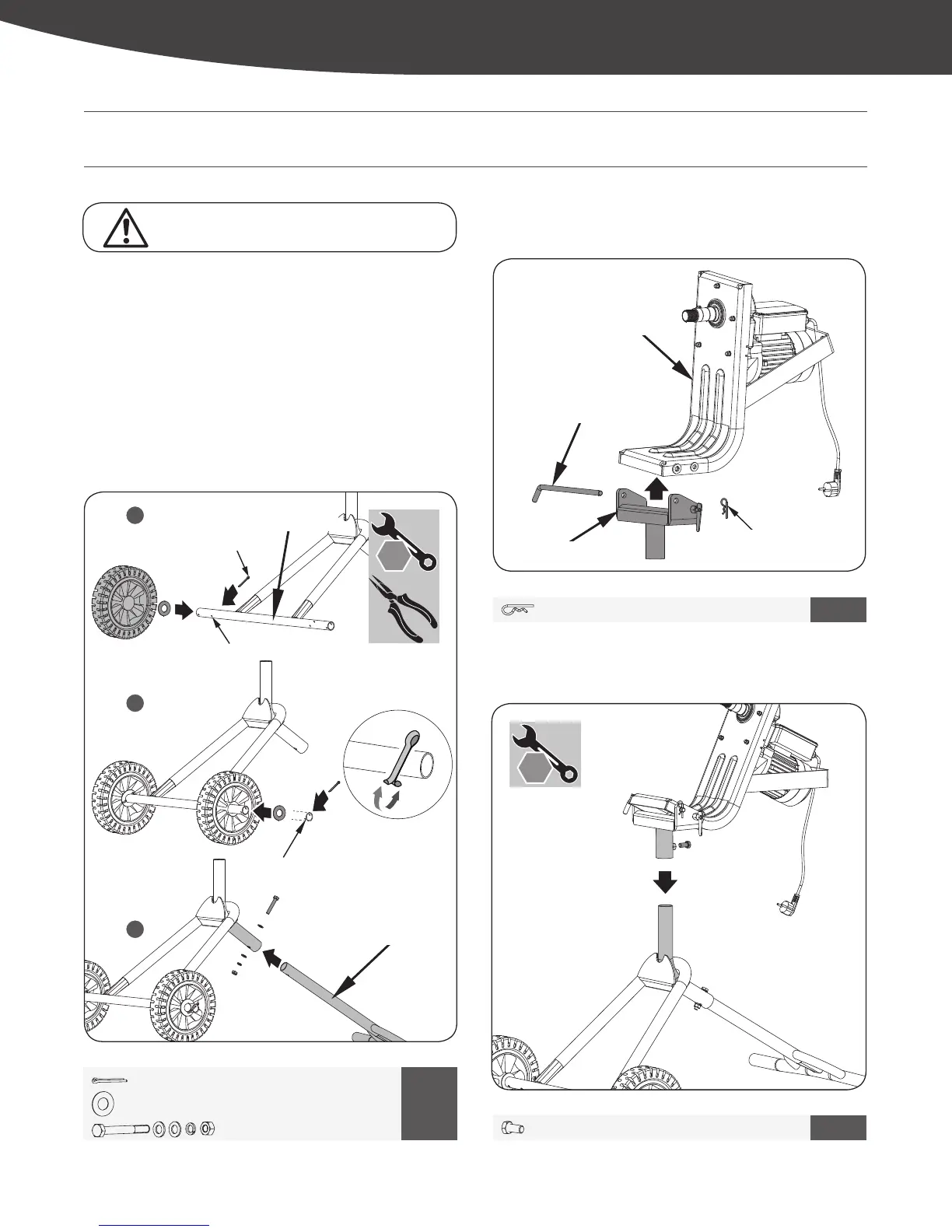

1. Insert a cotter pin into the inside hole on each side of the front
frame axle. Then, slide a at washer and a wheel onto each side
of the axle. (See Figure 1a, Illustration 1) Secure each wheel
with a at washer on the outside, and then insert a cotter pin
on each side in the outer hole. Bend and spread all the cotter
pin prongs in opposite directions. (See Figure 1a, Illustration 2).
2. Insert the rear leg of the stand into the front frame. (See Figure 1a,
Illustration 3) Insert an M10x60 bolt with arc washer through the
hole from upper side. Then, put an arc washer, lock washer, and
nut on the bolt from the other side. Secure tightly with wrenches.
4. Slide the swivel bracket and drum support frame onto the
shaft of the cement mixer frame. Secure them together with a
M10x25 bolt. (See Figure 1c)
3. Attach the swivel bracket to the drum support frame with a
12 X 240 pivot pin. Then insert the R-pin to hold the pivot pin
in place.
Ø6 × 50 × 4
1
× 4
M10 × 60 × 1
Ø 3 × 1
2
M10 × 25 × 1
3
Assembly requires two persons (recommended).
STAND
Figure 1a
Figure 1b
Figure 1c
17
mm
Drum Support Frame
Swivel Bracket
12x240 Pivot Pin
R-pin
Inside Hole
Cotter Pin
1
3
2
Outside Hole
Front Frame Axle
Rear Leg
17
mm
× 2
7
|
Assembly
