Maintenance
• Release the tip of the guide bar, and
turn the chain tensioning knob 1/2 turn
clockwise.
• Hold the tip of the guide bar up and
tighten the chain cover lock knob.
The chain is correctly tensioned when there is
no sag on the underside of the guide bar, and
when the chain is snug but can be turned by
hand without binding (see Fig. 28).
CHAIN TENSIONING PIN HOLE
BAR STUDS
Cutters Chain Rotation
Chain Drive Links
Bar
Groove
Chain Drive Links

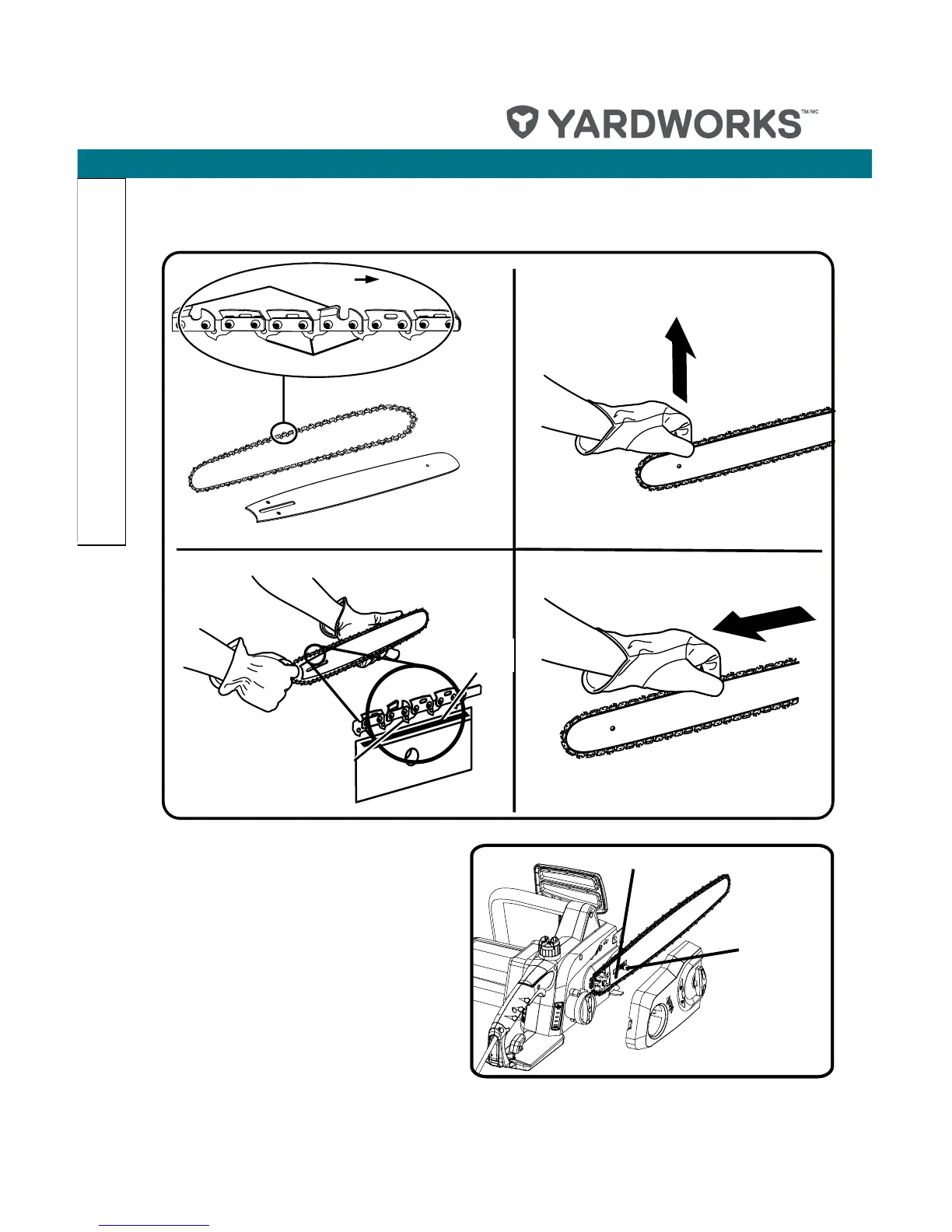

Fig. 25
Fig. 28
Fig. 29
Fig. 27
Fig. 26
Chain rotation
Chain drive links
Bar
groove
Chain drive links
Chain tensioning pin hole
Bar studs
NOTE: If chain is too tight, it will not rotate. Loosen the chain cover lock knob slightly, and turn the
chain tensioning knob 1/4 turn counter-clockwise. Lift the tip of the guide bar up, and retighten the
chain cover lock knob. Ensure that the chain will rotate without binding.
