ASSEMBLY

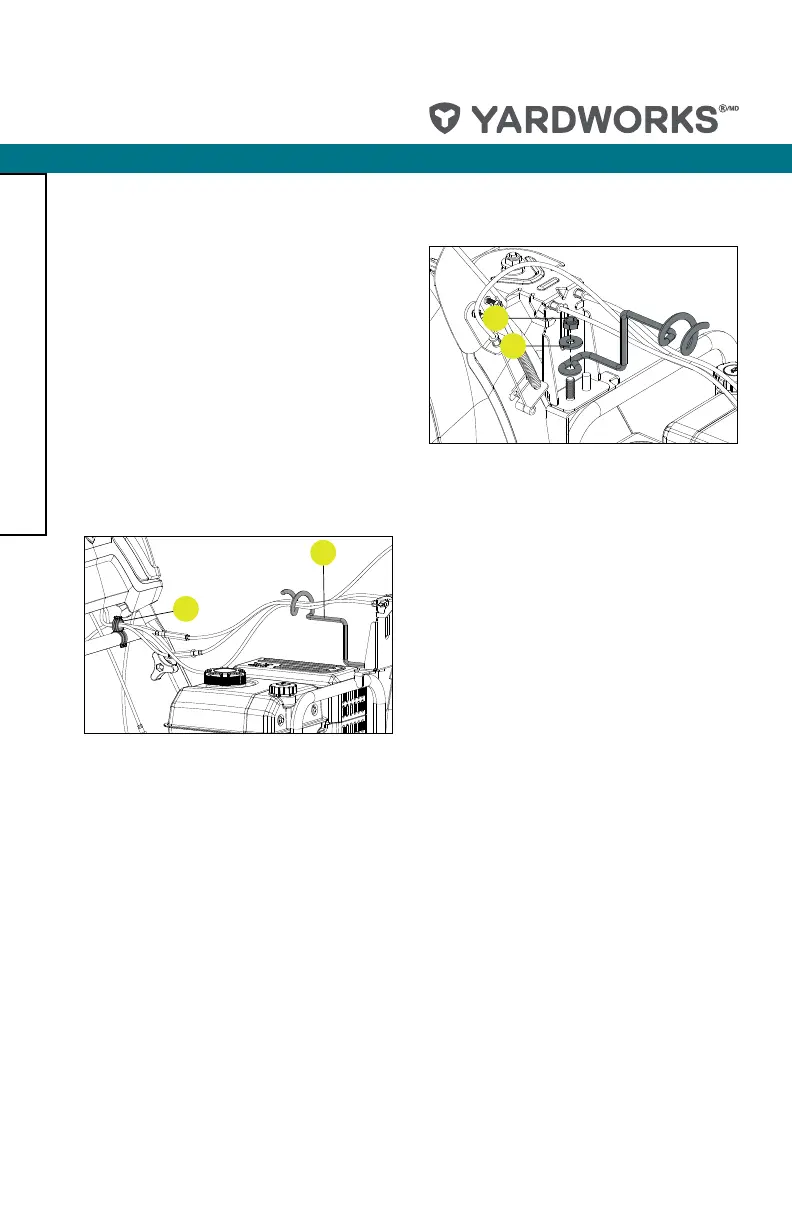

4. Put the snow discharge chute cable
wire form on the snow discharge
support using the washer (4-1) and nut
(4-2). Securely tighten the assembly
(Fig. 4) using included tool or your own
16mm wrench. This will be the guide
that channels all the cables over the
engine from the chute area.
4-2
4-1
Figure 4
5. Route the cables through the support
rod wire form (5-1) and cord clamp
(5-2) on the lower handle. Additional
cable ties are included to neaten up
the cables. Keep loose before first use
and adjust. When comfortable all the
cabling is in proper position, tighten up
the cable ties (Fig. 5).
5-1
5-2
Figure 5
