Yardworks 060-1526-0 User Manual

model number 060-1526-0 | contact us: 1 866 523-5218 model number 060-1526-0 | contact us: 1 866 523-5218
4 5
Item Description Qty Item Description Qty

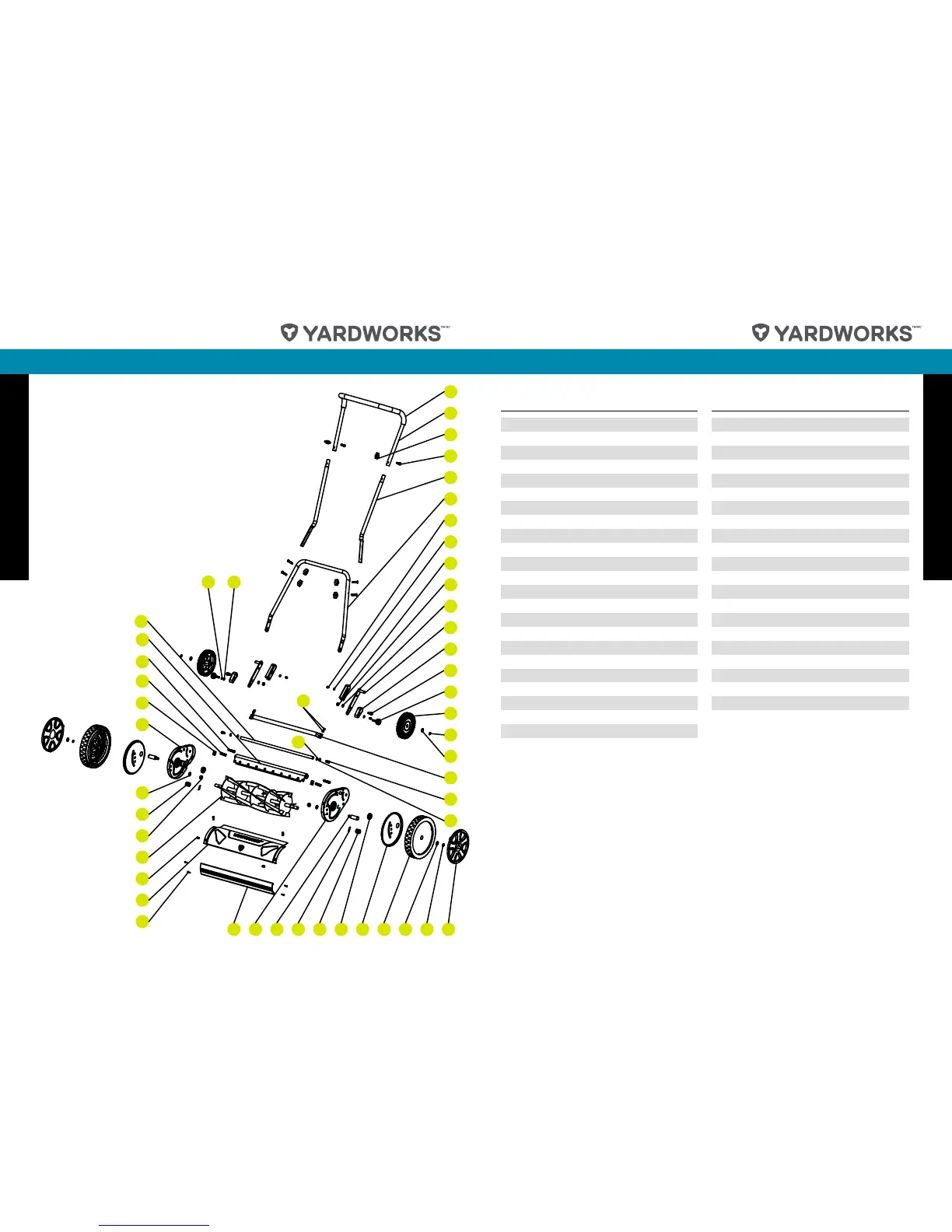

Exploded View Part List
1 Foam grip 1
2 Top handle 1
3 Knob 6
4 6
6 Lower handle 1
7 Bolt M6*8 6
8 Washer 6*12 4
5 Centre handle pieces 2
9 Bracket 2
10 Nut M8 2
11 Washer 8*17 4
12
Rear wheel bracket assembly
2
14 Bolt M8*20 2
15 Adjusting knob assembly 2
16 Rear wheel 2
13 Adjusting bracket 2
2 21Ø gnir pilC 71
18 Washer 12*20 2
19 Bearing stiffener 1
20 Bolt M8*15 2
22 Cover 2
23 Clip ring Ø19 2
21 Spring washer Ø8 2
2 53*02 rehsaW 42
25 Front wheel 2
26 Supporting plate 2
27 Bearing 2
29 Pin 2
30 Wheel shaft 2
31 Left supporting assembly 1
28 Gear (L) 1
1 revoC 23
33 Self-tapping screw bolt 4
34 Cover 1
37 Nut M10 2
38 Gear (R) 1
39 Washer 15*35 2
36 Cylinder blade assy. 1
40 Right supporting assembly 1
41 Adjusting nut 2
42 Adjusting spring 2
43 Adjusting bolt 2
45 Cutting bar pivot rod 1
44 Blade assembly 1
35 Bolt M6*12 2
14
13
12
5
11
10
9
8
7
4
3
1
6
2
28 27 26 25 24 23
21
19
20
18
17
16
15
223032 31 29
33
34
35
36
37
38
41
40
42
43
7
44
7 8
11
39
45
Carriage bolt

Yardworks 060-1526-0 Specifications

General

Brand	Yardworks
Model	060-1526-0
Category	Lawn Mower
Language	English
