Operation

CHARGING PROCEDURE

• Plug the charger into an AC power outlet.

• Insert the battery pack (1) into the charger (2).

This is a diagnostic charger. The Charger LED Lights (3) will illuminate in specific order to

communicate the current battery status. They are as follows:

BATTERY IS CHARGING:

FULLY CHARGED:

BATTERY IS TOO WARM:

(REMOVE FOR APPROX. 30

MINUTES TO ALLOW TO COOL)

DEFECTIVE BATTERY:

(REMOVE AND REPLACE WITH

NEW BATTERY IF THIS OCCURS)

NO BATTERY PRESENT

RED

GREEN

ORANGE

OFF

RED

BLINKING

RED

BLINKING

CHECKING THE CHARGE

If the battery pack does not charge properly:

• Check the current at the power outlet with another tool. Make sure that the outlet is not turned

off.

• Check that the charger contacts have not been shorted by debris or foreign material.

• If the surrounding air temperature is not normal room temperature, move the charger and

battery pack to a location where the temperature is between 7 °C (45 °F) and 40° C (104 °F).

NOTE: The battery is not shipped fully charged. It is

recommended to fully charge before first use to ensure

that maximum run time can be achieved. This lithium-

ion battery will not develop a memory and may be

charged at any time. A fully discharged battery pack will

require approximately 60 minutes to fully charge from a

discharged state.

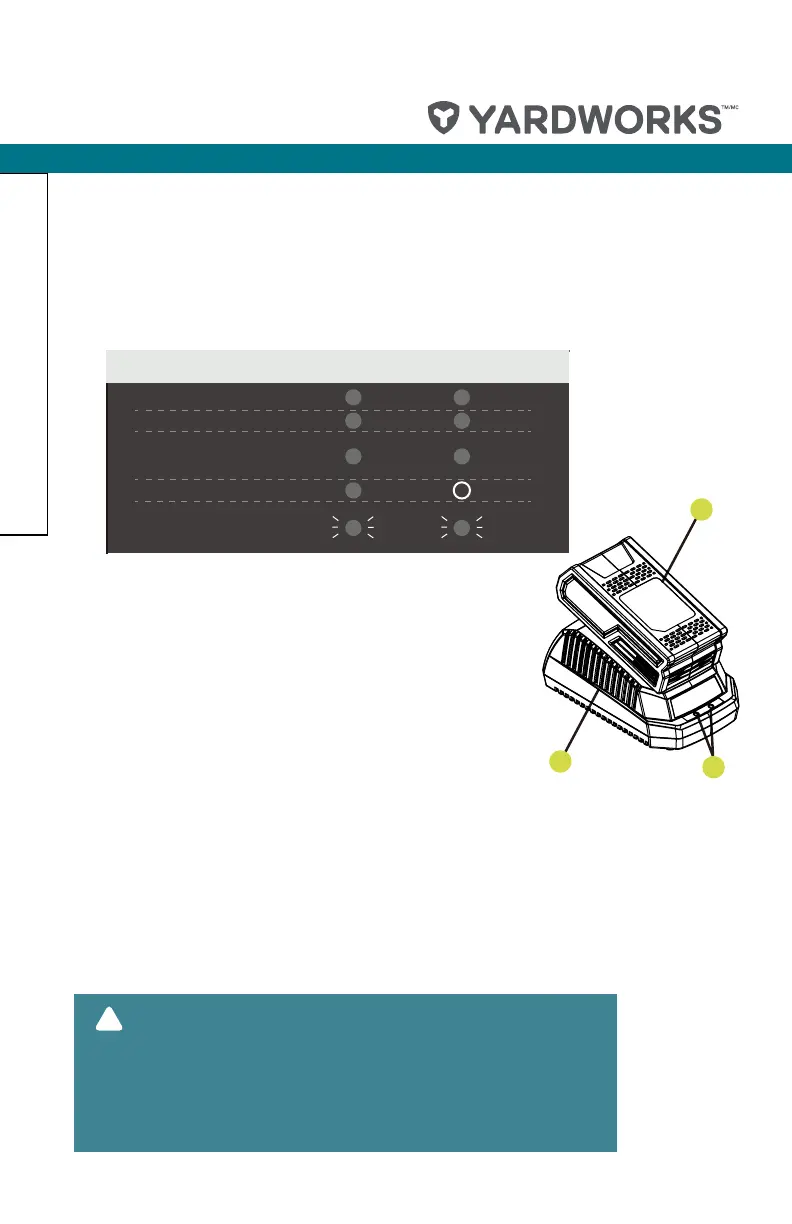

CHARGING PROCEDURE (LED INDICATOR)
