7
ASSEMBLY

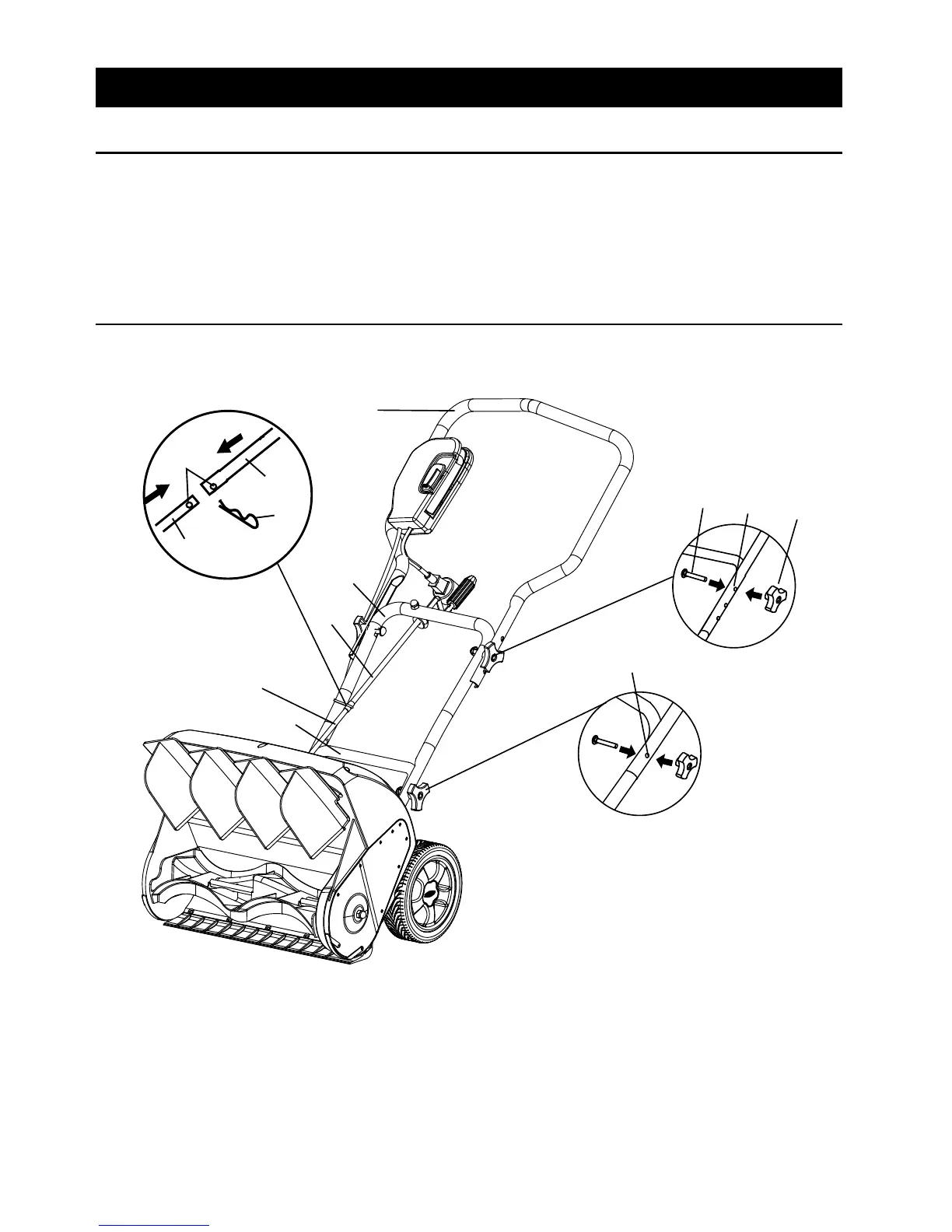

Assembling the Handle (Fig. 1)
1. Remove any packing material that may have been inserted between the upper and lower handles for shipping
purposes.
2. Align the holes (4) on the upper handle (1) with the holes on the middle handle (2). Insert the bolts (5), and use
the wing nuts (6) to tighten them.
3. Align the holes (7) on the middle handle (2) and the lower handle (3). Insert the bolts (5), and tighten them using
the wing nuts (6) provided.
Assembling the Discharge Directional Control (Fig. 1)
1. Align the holes (11) on the upper tubing (8) with the holes on the lower tubing (9). Insert the hitch pin (10).
Fig. 1
1
2
10
11
8
8
5
4
6
7
3
9
9
