2 INSTALLATION
17
• Install the units in the directions shown in Figs. 1 to 8. There will be
no problem if they are installed vertically.

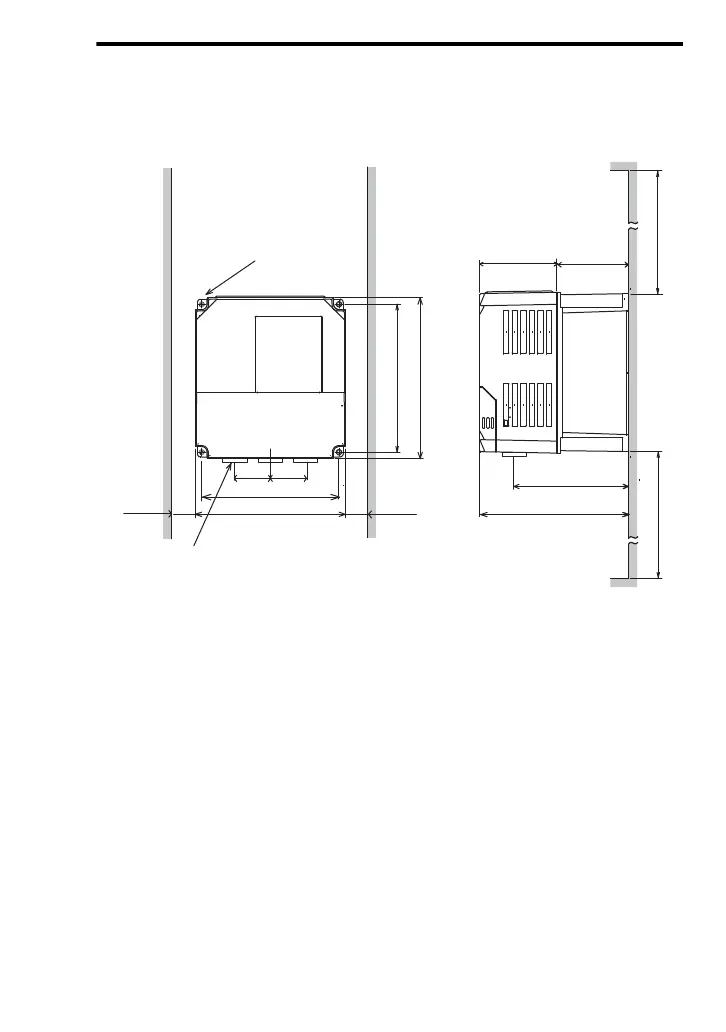

Fig. 1 Braking Unit Dimensions in inches (mm) CDBR-2015B, -2015C,
-2022B,-2022C,-4030B, -4045B
4−M4 MTG HOLE
1.5 (38) 1.5 (38)
1.18 (30)
OR MORE
3−LEAD WIRE OUTLET
[0.87 (20) DIA RUBBER BUSH]
5.04 (128)
5.51 (140)
2.83 (72)
2.73 (66.5)
4.51 (114.5)
5.45 (138.5)
1.18 (30)
OR MORE
5.43 (138)
5.91 (150)
3.94 (100) OR MORE
3.94 (100) OR MORE
