YASKAWA Varispeed-616G3

OPTIONS
(2)

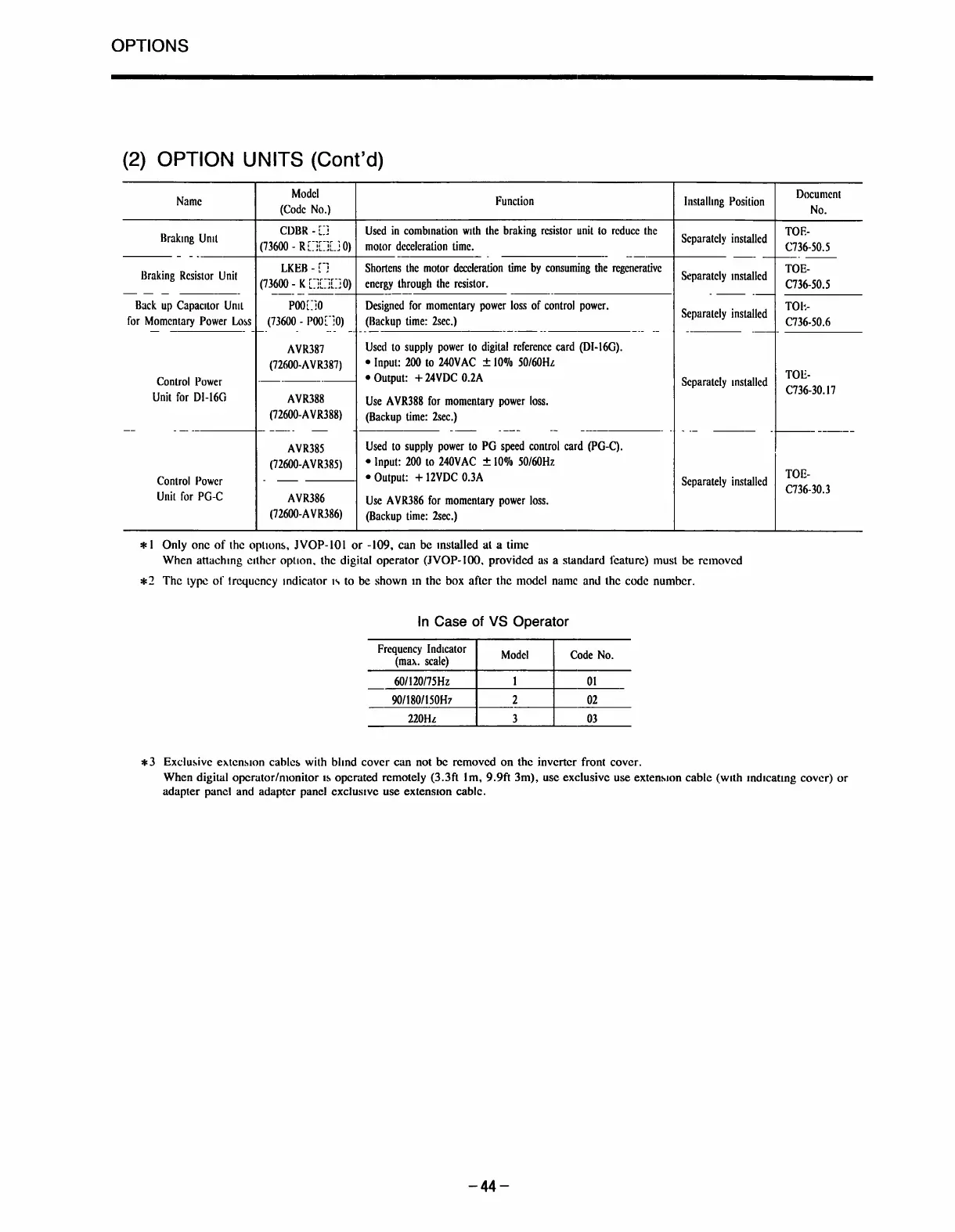

OPTION UNITS (Cont'd)
* I

Only one of the options, JVOP-101 or -109, can be installed at a time
When attaching either option,
the
digital operator (JVOP-100, provided as a standard feature)
must be removed
*2 The type of Fequency indicator i% to be shown m the box after the model name and the code number .
In Case of VS Operator
*3 Exclusive extension cables with blind cover can not be removed on the inverter front cover .
When digital operator/monitor is operated remotely (3 .3ft 1 m, 9 .9ft 3m), use exclusive use extension cable (with indicating cover)
or
adapter panel and adapter panel exclusive use extension cable .
Name
Model
I
Function
Installing Position
Document
(Code
No .) No .
CDBR - E : : Used in combination with the braking resistor unit to reduce the
TOE-
(7 3 600 - R E~_ ; 0) motor deceleration time .
Separately installed
0736-50 .5
LKEB - ? Shortens the motor deceleration time by consuming the regenerative
TOE-
Braking Resistor Unit Separately installed
(73600 - K energy thro ugh the resisto r . C 7
36-50 .5
Back up Capacitor Unit P00 . :?0 Designed for momentary power loss of control power .
Separately installed
TOE-
for Momentary Power Loss (73600 - P00' :0) (Backup time : 2sec .)
0736-50 .6
AVR387
Used to supply power to digital reference card (DI-16G) .
(72600-AVR387)
"
Input : 200 to 240VAC ± 10% 50160Hc
ControlControl Power
--
-- "
Output : + 24VDC 0.2A
Separately installed
C7
3 TOE-
Unit for DI-16G
AVR388
Use AVR388 for momentary power loss .
(72600-AVR388)
(Backup time : 2sec .)
AVR385
Used to supply power to PG speed control card (PG-C) .
(72600-AVR385)
" Input : 200 to 240VAC ± 10% 50/60Hz
Control Power -
" Output : + 12VDC 0 .3A
Separately installed
TOE
-
Unit for PG-C
AVR386
Use
AVR386 for momentary power loss
.
C736-30 .3
(72600-AVR386)
(Backup time : 2sec .)
Frequency Indicator
(max . scale)
Model Code No .
601120/75Hz 1 01
90/180/1 50H7 2 02
220Hc 3 03
