YASKAWA Varispeed-616G3

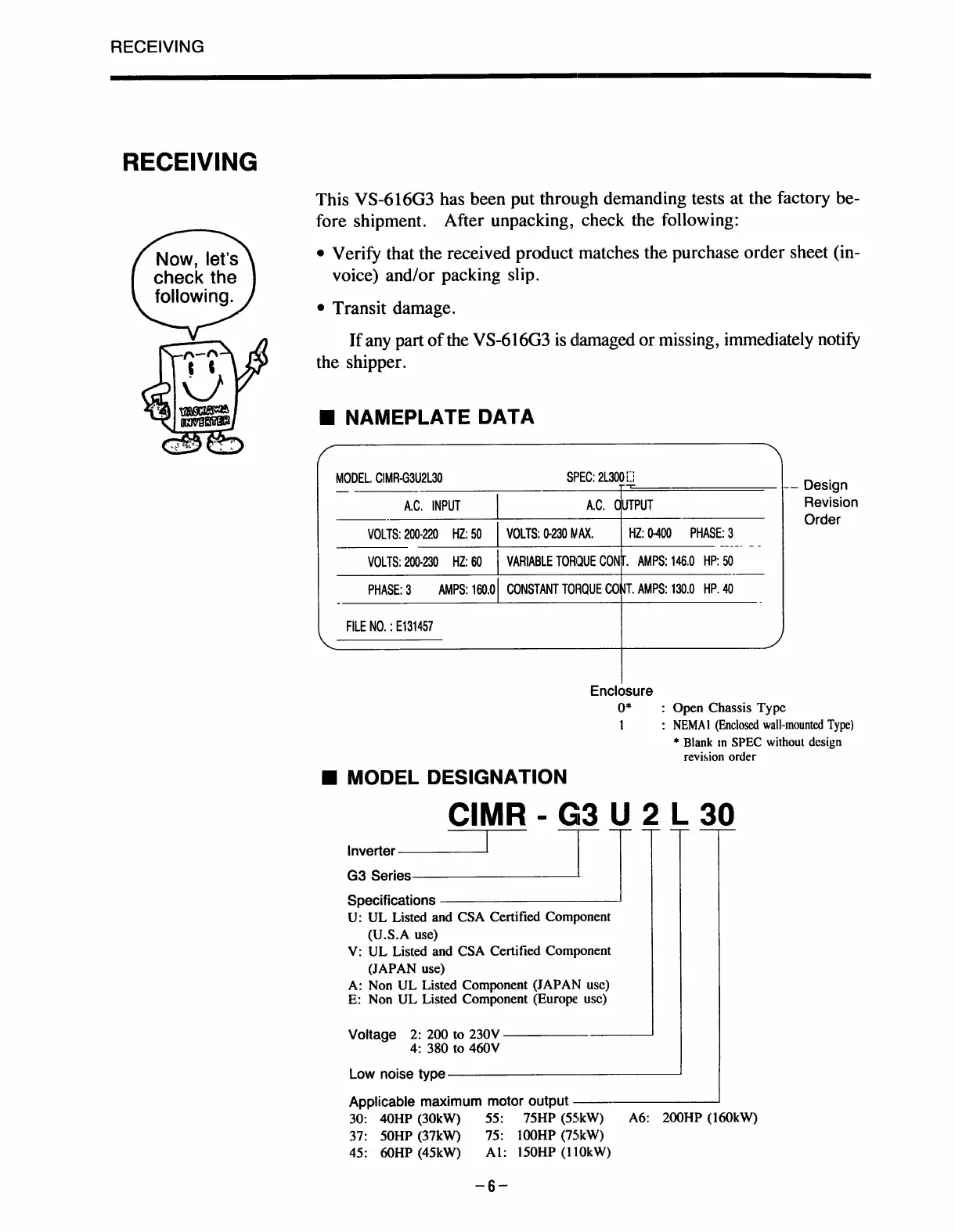

RECEIVING
RECEIVING
This VS-616G3 has been put through demanding tests at
the factory
be-
fore shipment . After unpacking,
check the following :
" Verify that the received product matches
the purchase order sheet (in-
voice) and/or
packing slip .
" Transit damage .
If
any part of the VS-616G3 is damaged or missing, immediately notify
the shipper .
"
NAMEPLATE DATA
" MODEL DESIGNATION
Inverter
G3 Series
Specifications
U : UL Listed and CSA Certified Component
(U .S .A use)
V : UL Listed and CSA
Certified Component
(JAPAN use)
A : Non UL Listed Component (JAPAN use)
E : Non UL Listed Component (Europe use)
Voltage

2 : 200 to 230V
4 : 380 to 460V
Low noise type
Applicable maximum
motor output
---
55 :

75HP (55kW)

A6 :

200HP (160kW)
75 :

100HP (75kW)
A1 : 150HP (110kW)
30 : 40HP (30kW)
37 : 50HP (37kW)
45 :
60HP (45kW)
CIMR - G3 U 2 L 30
S
FTTTT
---- Design
Revision
Order
MODEL .
CIMR-G3U2L30 SPEC : 21 .300 :- ;
T
--
A .C . INPUT I A .C .
i1-
UTPUT --
VOLTS
:
200-220 HZ : 50 VOLTS : 0-230 MAX . HZ : 0-400 PHASE : 3
VOLTS : 200-230 HZ : 60 I VARIABLE TORQUE CON . AMPS : 146 .0
HP :
50
PHASE : 3 AMPS : 160 .0 CONSTANT TORQUE COT
.
AMPS : 130 .0
HP . 40 --
FILE
NO .
: E131457
Enclosure
0* : Open Chassis Type
1 : NEMA I (Enclosed wall-mounted Type)
* Blank m SPEC without design
revision order
