YASKAWA Varispeed-616G3

INSTALLATION
MOUNTING SPACE
1181n(30mm)
1181n(30mm)
OR MORE

ORMORE
" Never move, lift or handle the
VS-616G3 cabinet by the front cover .
" Lift the cabinet
from the bottom .
" Do not
drop the inverter .
Install the VS-616G3 vertically and
allow
sufficient space for effective
cooling as shown in Fig . 1 .
7v
CAUTION
T
5 91n(150mm)
OR MORE
ALLOWABLE
TEMPERATURE_
OF CONTROL
SECTION IN THE
INVERTER
131 °F (55°C)
(a) Front View

(b) Side View
Note :

For product external and
mounting dimensions, refer to
APPENDIX
B "DIMENSIONS" on page 31
.

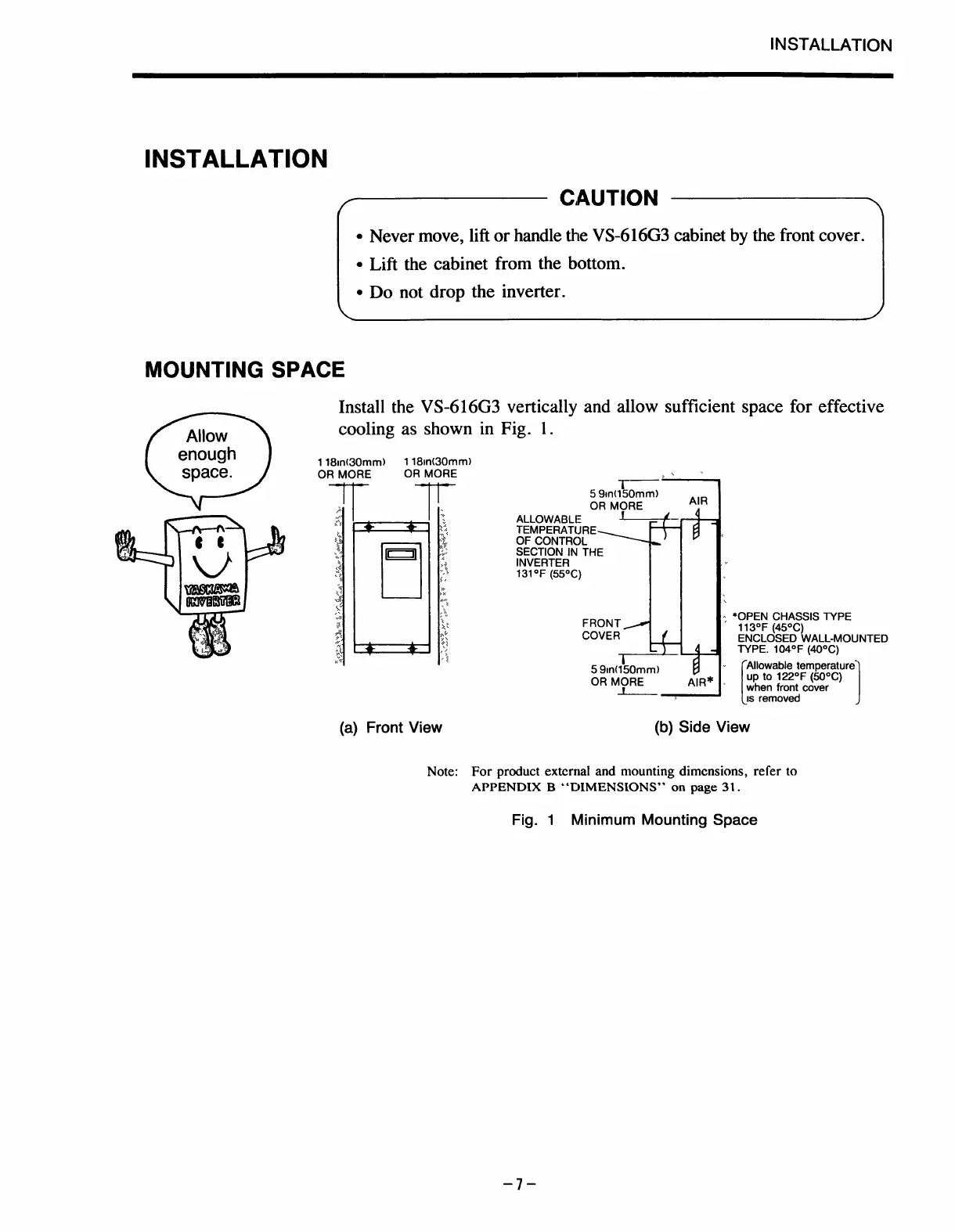

Fig . 1

Minimum Mounting Space
INSTALLATION
n
*OPEN CHASSIS TYPE
+ 113°F
(45°C)
ENCLOSED
WALL-MOUNTED
TYPE . 104°F (40°C)
Allowable temperature
up to 122*F (50°C)
when front cover
is removed
