10

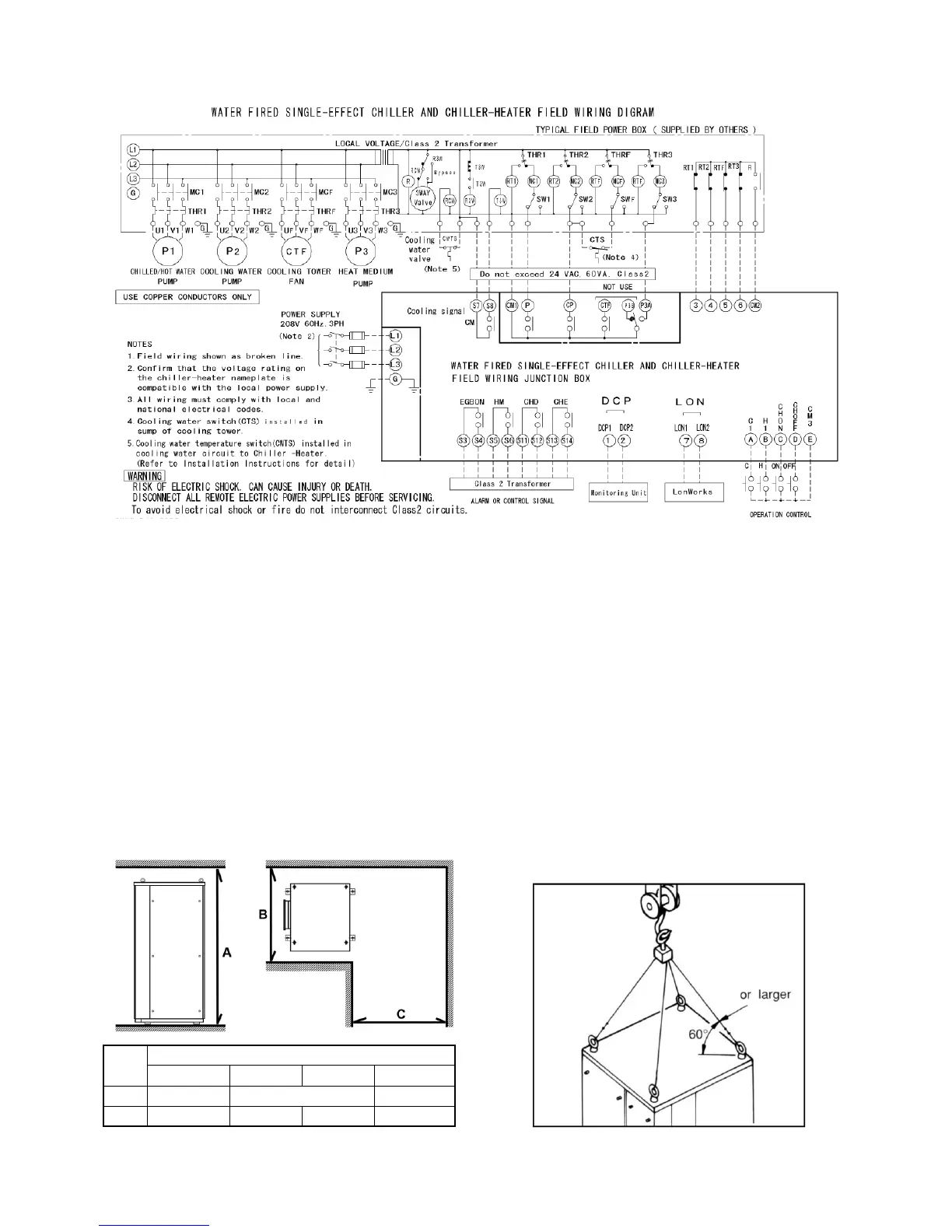

Figure 3 – Field Wiring Diagram as Supplied in the Junction Box
INSTALLATION
RIGGING AND MOVING
When the absorption chiller or chiller-
heater is delivered, it should be inspected for
transit damage. Should any damage be
found, do not proceed with installation until
the Yazaki distributor has been notified and
any required remedial actions have been
completed.
Table 2 – Hallway Clearances
Remember to properly plan the route to
the installation site. Also, keep in mind when
choosing the site that the unit will someday
have to be removed, so be mindful of
permanent and semi-permanent barriers.
The Yazaki chiller-heater is designed for
overhead rigging with lifting lugs provided
from the factory.
Figure 4 – Rigging
To Next Page
