Yealink SIP-T27G Recovery Guide

Recovery Mode on Yealink IP phones
14

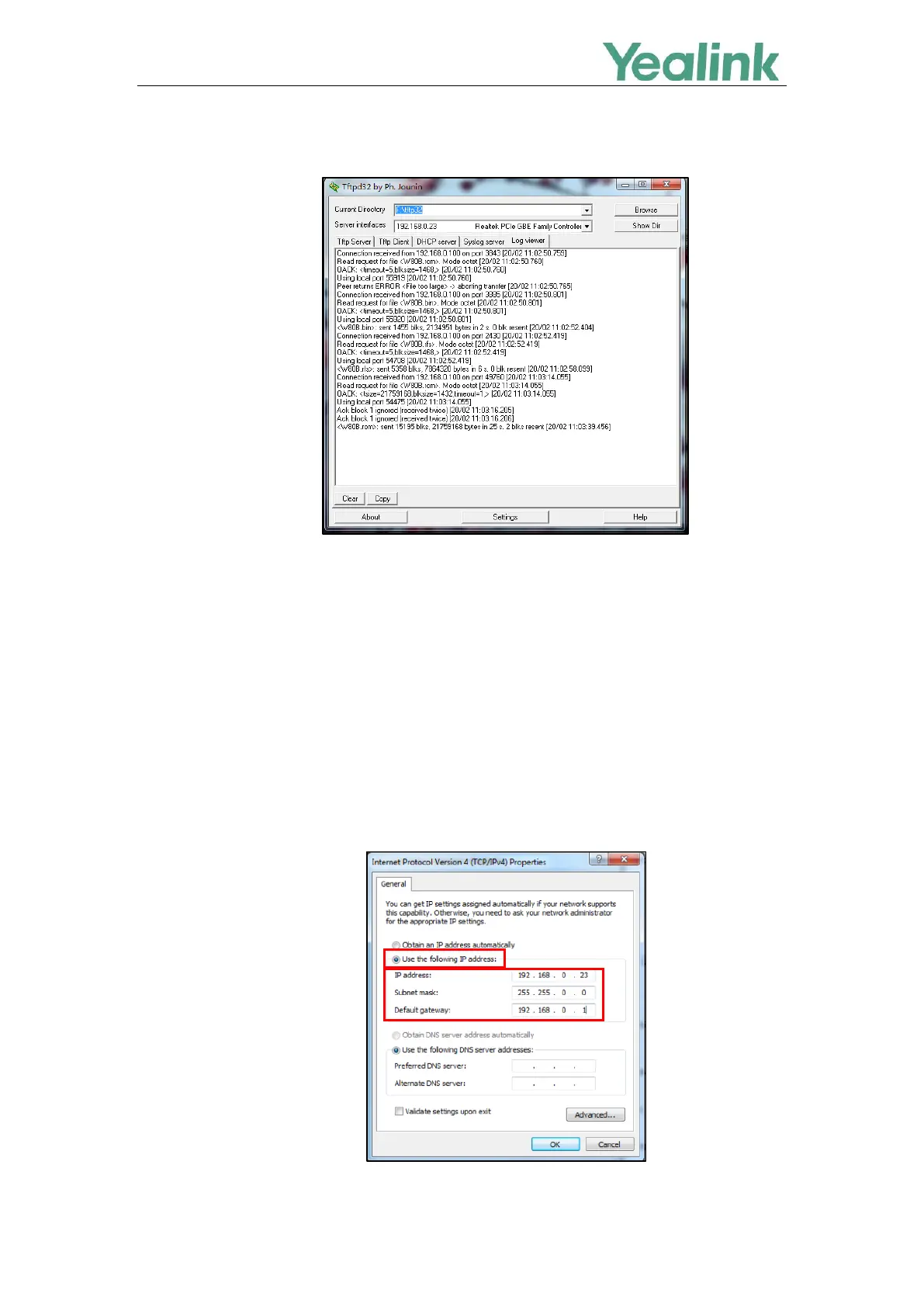

You can view the syslog of the TFTP server to check if the W80DM/W80B downloads the firmware
successfully as shown below:
4. Find the current IP address of the device on the DHCP server in the list of registered DHCP clients.
For W90DM/W90B
For the W90DM/W90B, there is no screen to show information for you. The W90DM/W90B uses
192.168.0.23 as its default IP address, so you need to configure a static IP address for your local PC
where you have the TFTP server installed.
Procedures:
1. Configure the static IP address on your local PC.
It must be configured as below:

Yealink SIP-T27G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Gold
Wall mountable	Yes
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
RJ-9 ports quantity	2
USB 2.0 ports quantity	1
Voice codecs	CNG, G.711, G.722, G.723.1, G.726, G.729, G.729ab, VAD, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	SIP info
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Bluetooth	-
Security algorithms	AES, MD5
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Volume control	Digital
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
