Yealink SIP-T27G Getting Started

Recovery Mode on Yealink IP phones
4

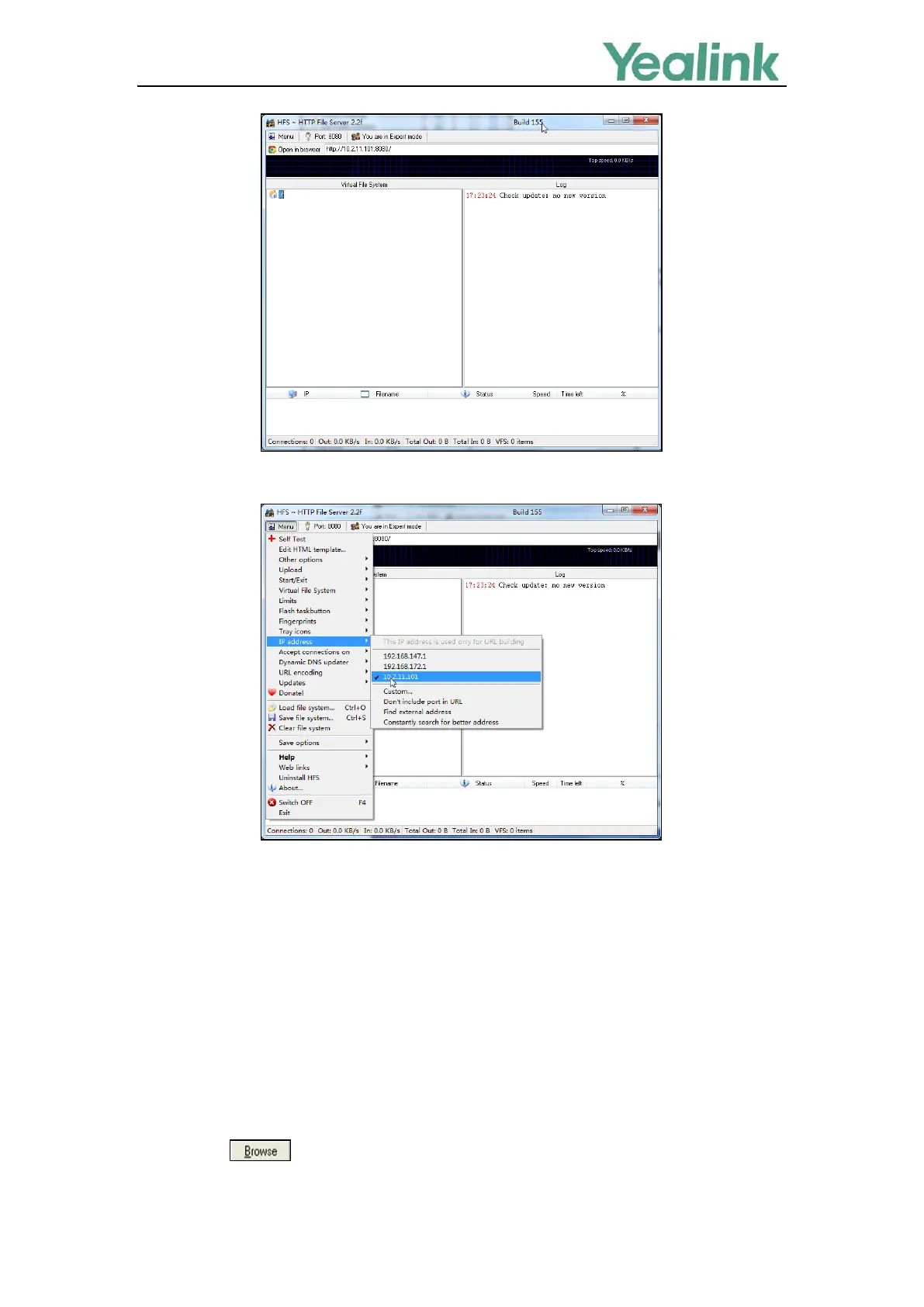

4. Click Menu in the main page and select the IP address of the PC from IP address.
Configuring the TFTP Server
This section shows how to configure a TFTP server for the windows system using the tftpd32 application.
You can download the tftpd32 application online: http://tftpd32.jounin.net/tftpd32_download.html. If there
is a TFTP server installed on your local system, you can skip this section and go to the next.
Procedures
1. Create a TFTP root directory on the local system.
2. Place resource files to this root directory.
3. Double click the tftpd32.exe to start the application.
4. Click the button to locate the TFTP root directory from the local system.
5. Select the local IP address from the Server interface drop-down menu.

Yealink SIP-T27G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Gold
Wall mountable	Yes
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
RJ-9 ports quantity	2
USB 2.0 ports quantity	1
Voice codecs	CNG, G.711, G.722, G.723.1, G.726, G.729, G.729ab, VAD, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	SIP info
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Bluetooth	-
Security algorithms	AES, MD5
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Volume control	Digital
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
