Yealink SIP-T33G Recovery Guide

Recovery Mode on Yealink IP phones
13
4. After a handset is registered, press (for W52P/W56P base) or (for W60B base) on the
handset to verify the current firmware version.
For W80DM/W80B

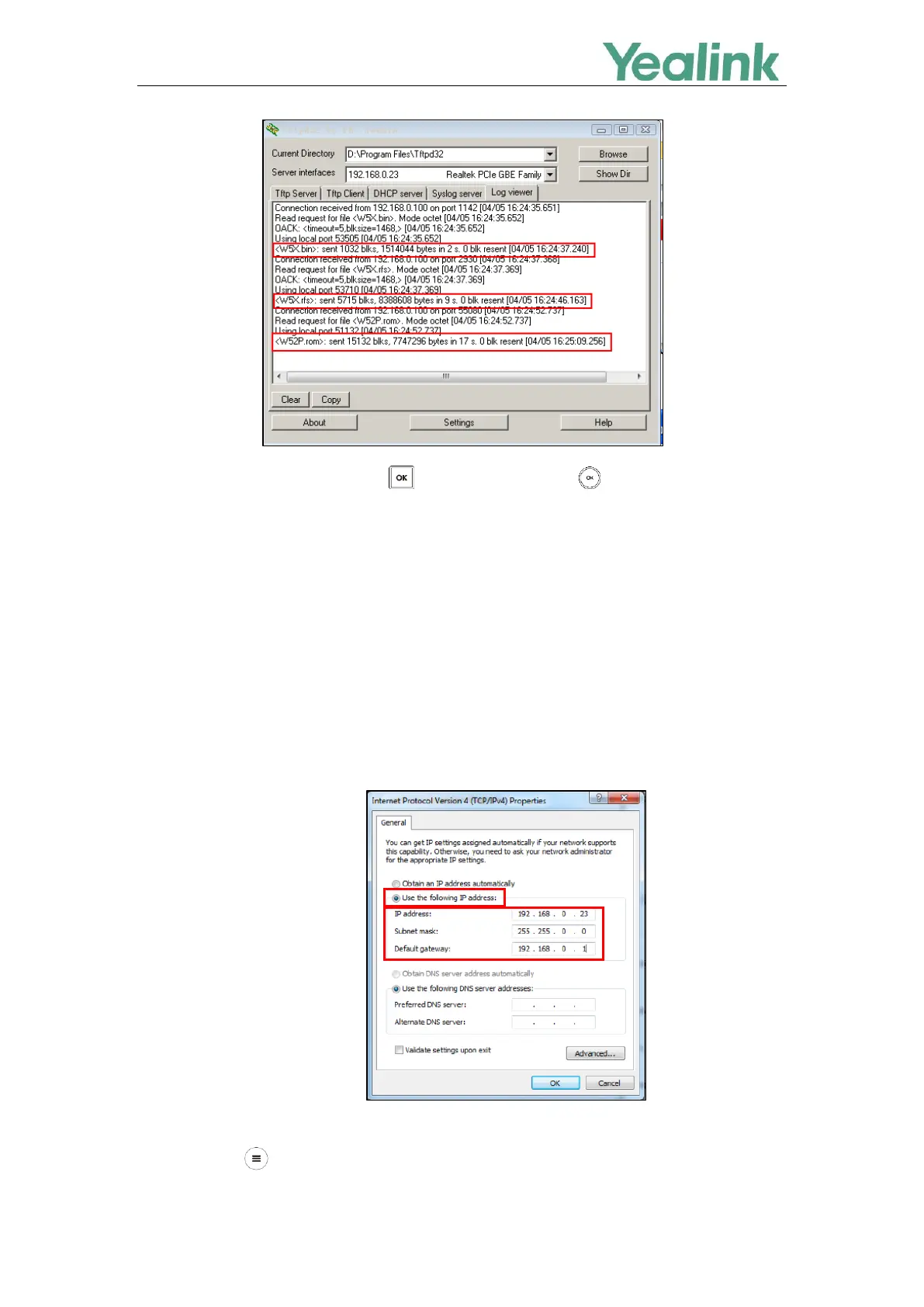

For the W80DM/W80B, there is no screen to show information for you. The W80DM/W80B uses
192.168.0.23 as its default IP address, so you need to configure a static IP address for your local PC
where you have the TFTP server installed.
Procedures:
1. Configure the static IP address on your local PC.
It must be configured as below:
2. Click OK twice to save the settings.
3. Long press and reconnect the power adapter to trigger the recovery mode.
The W80DM/W80B will download and upgrade the firmware from the TFTP server.

Yealink SIP-T33G Specifications

General

Wall Mountable	Yes
Local Phonebook	1000 entries
Opus Codec	Yes
Lines	4
Supported Codecs	Opus, G.722, G.711(A/μ), G.729AB, G.726, iLBC
Headset Port	RJ9
Network	Dual-port Gigabit Ethernet
PoE	Yes (IEEE 802.3af)
Audio Features	HD voice
SIP Accounts	4
Buttons	4 context-sensitive soft keys
Headset Support	Yes
Supported Protocols	SIP
Operating Temperature	0 ~ 40°C
Humidity	10% to 90% (non-condensing)
