Yealink SIP-T57W Getting Started

Recovery Mode on Yealink IP phones
11
For W52P/W56P/W60B Base
For the W52P/W56P/W60B base, there is no screen to show information for you. The W52P/W56P/W60B
base uses 192.168.0.100 as its default IP address, so you need to configure a static IP address for your
local PC where you have the TFTP server installed.
Procedures

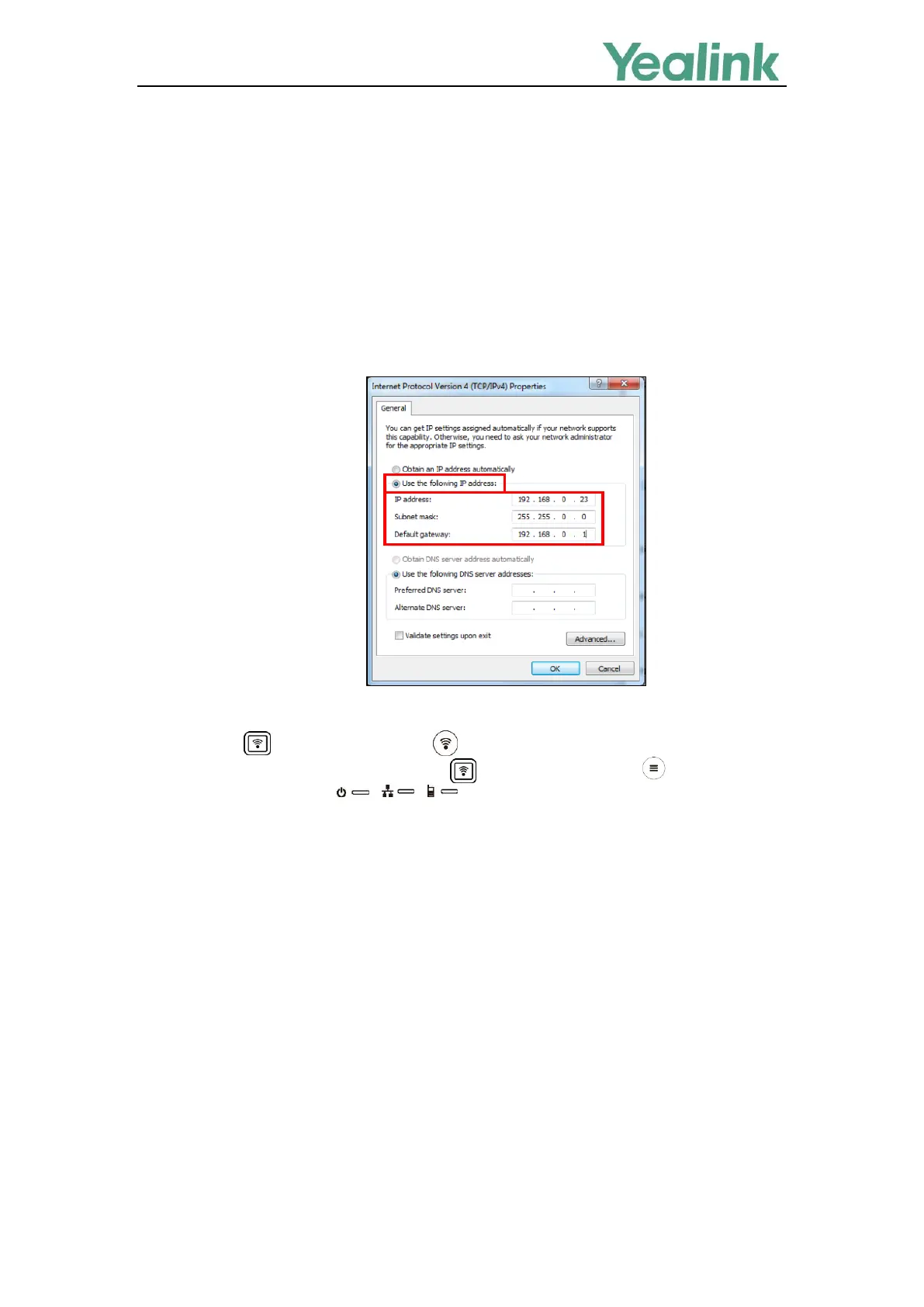

1. Configure the static IP address on your local PC.
It must be configured as below:
2. Click OK twice to save the settings.
3. Long press (for W52P/W56P base) or (for W60B base) and reconnect the power adapter
to trigger the recovery mode. Do not release (for W52P/W56P base) or (for W60B base)
until three LED indicators ( -> -> in turn) are all turned on.
The W52P/W56P/W60B base will download and upgrade the firmware from the TFTP server.
You can view the syslog of the TFTP server to check if the W52P/W56P/W60B base downloads the
firmware successfully as shown below:

Yealink SIP-T57W Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Ethernet LAN	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Security algorithms	AES, HTTPS, MD5, SRTP
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Volume control	Buttons
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	7 \
Display resolution	800 x 480 pixels
Front camera	No
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Voice codecs	G.722, G.723.1, G.726, G.729A, G.729B, iLBC

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	211 mm
