YETI 160E | OWNER’S MANUAL 11
FRAME ASSEMBLY
TABLE OF CONTENTS |
12

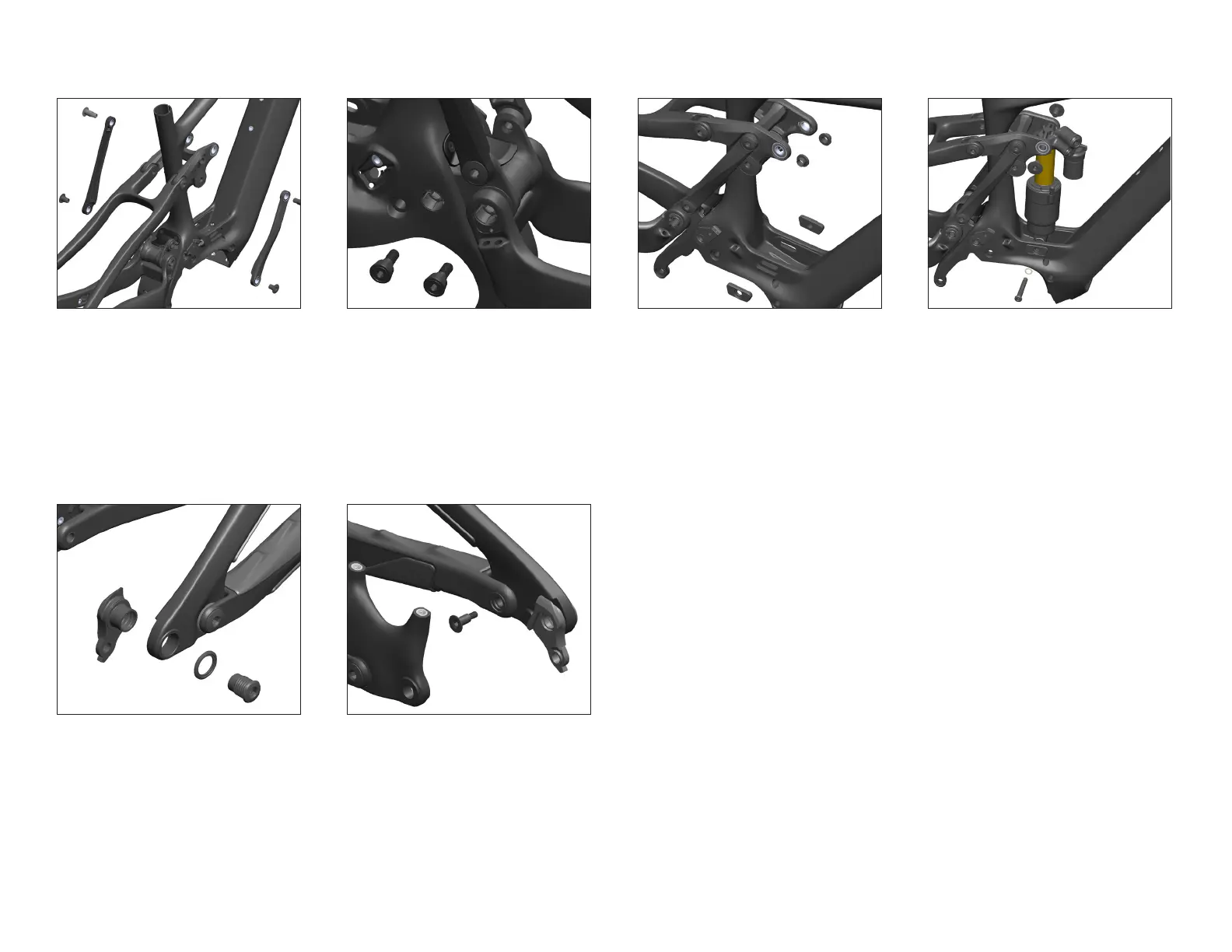

Install Timing Link (4.4) and Timing Link (4.5) onto
the Rocker Link Assembly using 2X Tie Link Bolt,
Long (4.61) and to the Switch Link Assembly (4.1)
using 2X Tie Link Bolt, Short (4.10).
Torque all Tie Link bolts to 12 Nm.
13
Install 2X Collet Wedge Bolt, 15mm (4.9) into the
two 15mm Collet Axles at the main pivot.
Torque to 14-15Nm.
QC CHECK: Cycle Rear Triangle through to make
sure motion is smooth.
15
Install UDH Derailleur Hanger (4.37)
into seatstay.
Torque (left-hand thread) to 25 Nm.
16
Install chainstay Guard Retention Screw (4.64)
through chainstay Guard and into the opposing
clevis bolt.
Tighten until snug - be careful to not
overtighten!
Note: This bolt must be loosened prior to removing
the Clevis Bolt (4.14) it threads into.
14
Install 2X 12/10mm Reducer (4.18) on the insides of the front Rocker Link bearings. Install Shock into frame
using 2X Upper Shock Bolt (4.11). Secure lower eyelet with 30% Shock Chips (4.29 & 4.30), 8mm x 63L
Shoulder Screw (4.46) and Washer (4.28).
Torque fasteners to 12 Nm
