SB120 | OWNER’S MANUAL
5

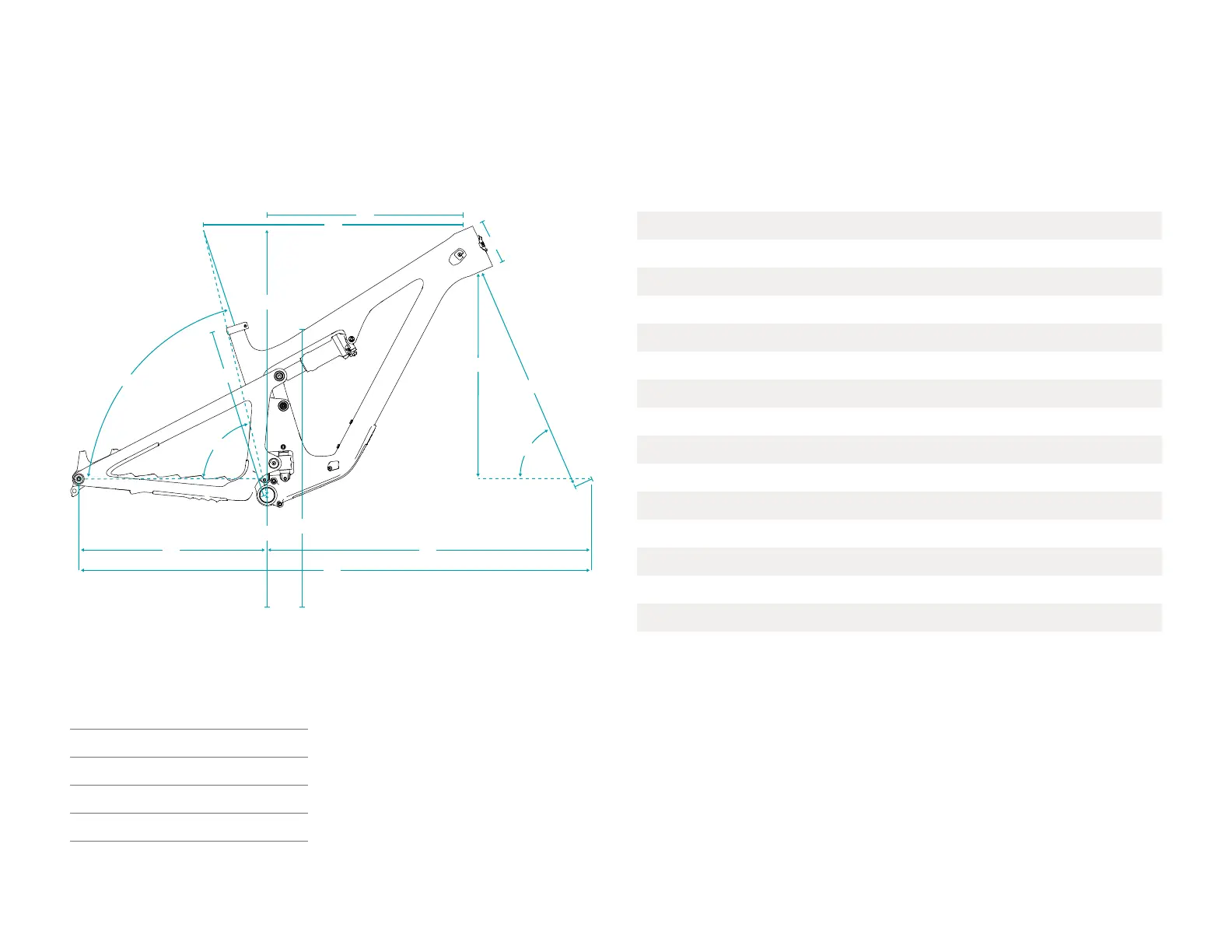

GEOMETRY SB120
FIT
X-SMALL
4'10" (145 CM) – 5'3" (160 CM)
SMALL
5’1” (155 CM) – 5’7” (170 CM)
MEDIUM
5'5" (165 CM) – 5'11" (180 CM)
LARGE
5'10" (178 CM) – 6'3" (191 CM)
X-LARGE
6’1” (185 CM) – 6’7” (200 CM)
XX-LARGE
6'5" (195 CM) – 6'11" (210 CM)
B
M
A
D
N
F
G
H
I
O
P
L
J
K
C
E
A SEAT TUBE LENGTH
345 365 400 440 470 485
B EFF. TOP TUBE LENGTH
540 571 603 625 652 672
C HEAD TUBE ANGLE˚
66.5 66.5 66.5 66.5 66.5 66.5
D EFF. SEAT TUBE ANGLE˚
76.5 76.5 76.5 76.5 76.5 76.5
E ACTUAL SEAT TUBE ANGLE˚
71.1 71.5 71.9 72.3 72.7 73.2
F CHAINSTAY LENGTH
433 435 437 439 441 443
G WHEELBASE
1122 1157 1191 1217 1249 1274
H ESTIMATED BB HEIGHT
335 335 335 335 335 335
I STANDOVER
699 709 714 718 720 725
J HEAD TUBE LENGTH
92 98 104 115 126 147
K FORK (AXLE TO CROWN)
544 544 544 544 544 544
L FORK (OFFSET)
44 44 44 44 44 44
M STACK
604 610 615 625 635 655
N REACH
395 425 455 475 500 515
O FRONT CENTER
689 722 754 778 808 831
P VERTICAL FORK TRAVEL
119 119 119 119 119 119
130MM FORK XS SM MD LG XL XXL
