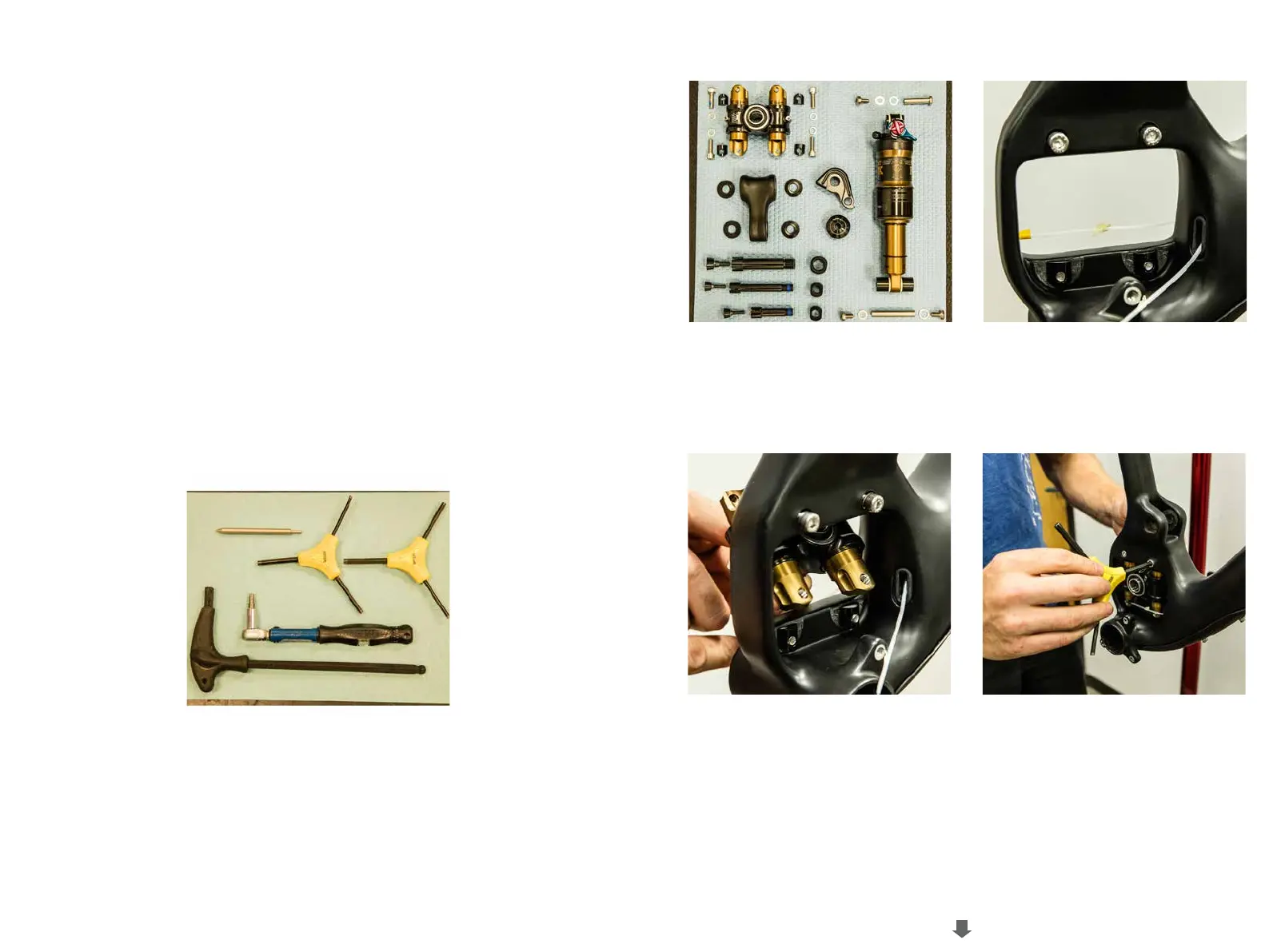

FRAME ASSEMBLY
Make sure your tools are in good condition.
A worn allen key can round the hex on a bolt
not allowing for proper torque.
Torque settings are listed throughout the
instructions. It is important to prep all bolt
threads. The instructions denote whether to
use a Loctite compound or grease.
YETI TIPS TOOLS NEEDED
Warning: Service on Yeti bicycles requires special knowledge
and tools. Yeti Cycles recommends that all service and
repairs be performed by an authorized Yeti Dealer
• 2.5mm allen key
• 5mm allen keys
• 4mm allen keys
• 10mm allen key
• Guide pin tool (Or two)
• Torque wrench
• Grease
• Blue (242) Loctite
All the parts you’ll need to get your SB5+ frame
assembled. Please refer to the exploded view
later in this manual for more information.
Insert the Innity Link from the non-drive side. The
Innity logo should be on top and the Fox logos
facing the non-drive side. Rock the link into place
capturing the black tting washers. Make sure that
they have not slipped or rotated. The at end of
the tting washers must be facing the opening in
the frame and they must nestle into the Innity Link
stanchions.
01. 02.
03. 04.
While holding the link in place lightly tighten the
bolts. You want them to snug so that the link
does not move and so that the tting washers
are fully captured, but don’t try to torque them by
hand! Finish the job with a torque wrench.
*Torque to 12 Nm
Place washers (300030214) over the Innity Link
attachment bolts (300030057) and blue LocTite
242 to the threads. Insert the bolts in the frame
and hang the black Innity link spacers from them
as shown above. Be sure the at surface of the
spacer is ush with the opening.
