YOKOGAWA 751552 Quick Start Guide

Load Impedance 1 Ω or less
Max. Output Voltage 30 V peak or less (restricted by the output protection circuit).
Working Voltage Max. 600 Vrms
Inuence of Adjacent Conductor When the frequency of the current in an adjacent conductor is 50 Hz, the
inuence on the primary current is 0.5 mA/A or less.
Inuence of Conductor Position in the Jaws 0.1% or less in the output signal for a frequency of 400 Hz or less.
Inuence of Load Impedance r When 1 Ω < r ≤ 5 Ω, under 0.1% of output signal, and phase shift under 0.2 degrees
Inuence of Frequency f
5
30 Hz ≤ f < 48 Hz: under 0.5% of output signal
65 Hz < f ≤ 1 kHz: under 1% of output signal
1 kHz < f ≤ 5 kHz: under 2% of output signal
Inuence of Crest Factor Under 1% of output signal, given a crest factor of 6 or less for a 2000 A peak
(333 Arms) current or less
Inuence of DC Current Superimposed on Nominal Current
Under 1% of the output signal, assuming a current of DC 15 A or less.
Operating Temperature –10°C to +50°C
Storage Temperature –40°C to +70°C
Temperature Inuence 0.02%/°C or less of the output signal
Operating Humidity 0 to 90% RH (no condensation) However, if 35°C is exceeded, humidity will impair the
primary functionality (by a factor of 0.5% RH/°C)
Inuence of Humidity Under 0.1% of the output signal given 10% RH ≤ Humidity < 20% RH or
75% RH < Humidity ≤ 90% RH
Operating Altitude 2000 m or less above sea level
Installation Indoor use
Max. Jaws Openin g 53 mm (open jaws height: 139 mm (W))
External Dimensions Approx. 111(W) x 216(H) x 45(D) mm
Weight Approx. 620g.
Output Safety jacks (Φ4 mm)
1 This instrument is a measurement category III (600V) product. In this case do not use it for measurement
category IV measurements. This instrument is a measurement category IV (300V) product.
Measurement category O applies to measurement of other types of circuits that are not directly connected
to a main power source.
Measurement Category II applies to electrical equipment that is powered through a xed installation, such
as a wall outlet wired to a distribution board, and to measurement performed on such wiring.
Measurement category III applies to measurement of facility circuits, such as distribution boards and
circuit breakers.
Measurement category IV applies to measurement of power source circuits, such as entrance cables to
buildings and cable systems, for low-voltage installations.
2 Pollution degree describes the degree to which a solid, liquid, or gas which deteriorates dielectric strength
or surface resistivity is adhering.
Pollution Degree 2 applies to the normal indoor atmosphere. Normally, only non-conductive pollution
occurs. Occasionally, however, temporary conductivity caused by condensation must be expected.
3 For conformity to environmental regulations and/or standards other than EU, contact your nearest
YOKOGAWA o󰀩ce (PIM 113-01Z2).
4 Reference Conditions
Temperature: 23 °C±3°C Humidity: 20 to 75% RH External magnetic eld < 40 A/m
No AC magnetic eld Conductor centered in jaws Load impedance ≤ 1 Ω (≤ 1 VA)
No inuence of current owing in adjacent conductors
When the primary current is sinusoidal, the sinusoidal conditions are: frequency; 48 to 65 Hz, distortion
factor < 1%, no DC component
5 There is no frequency inuence in the range 48 Hz ≤ f ≤ 65 Hz.
99
111
101
52
216
43.5
31
35
45

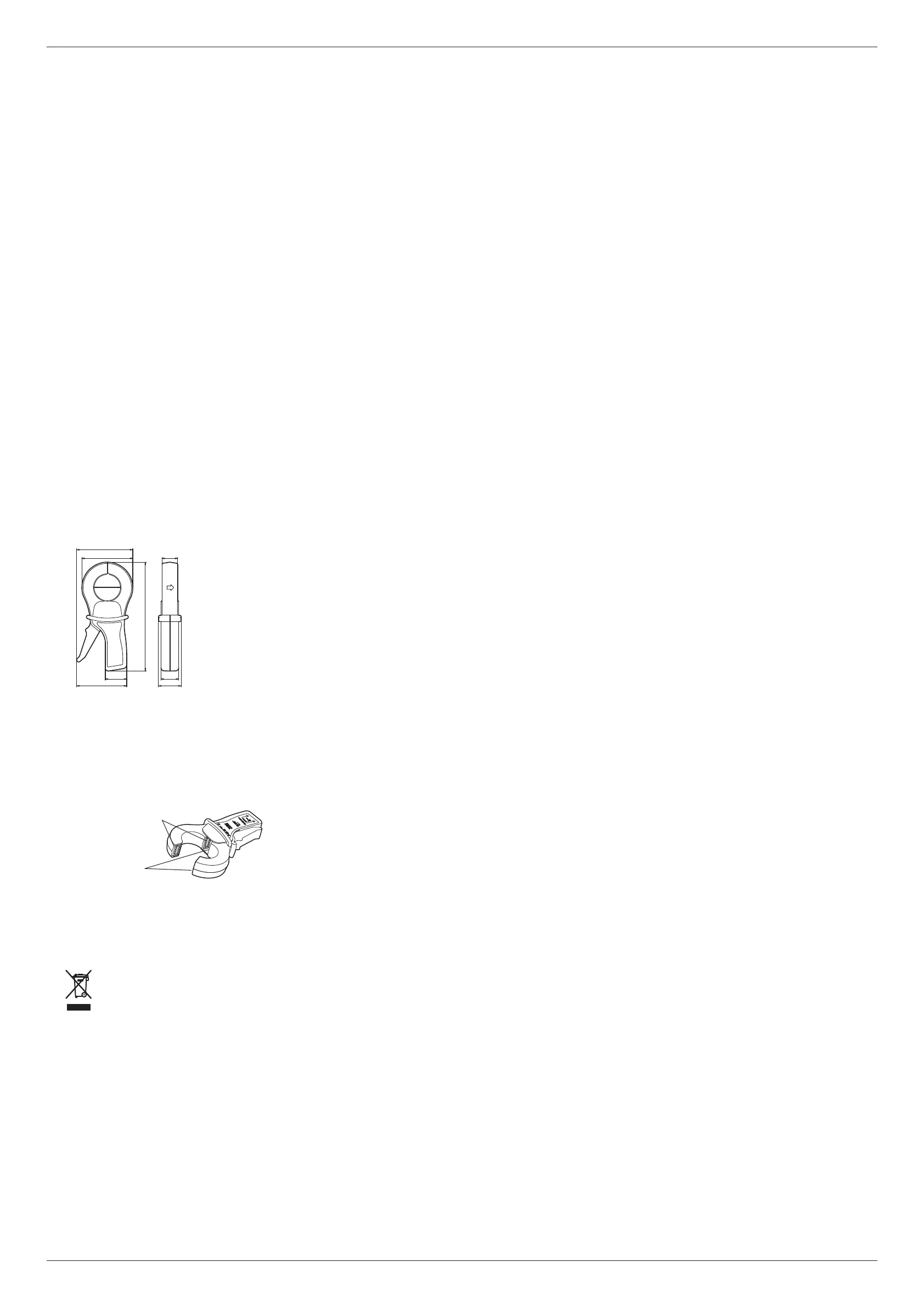

External Dimensions (Units: mm)
6. Maintenance
• Note the following when cleaning the probe.
• Do not clean the probe while clamped to a conductor. Likewise, do not clean while
connected to a measuring instrument.
• Do not allow water to contact the jaws.
• When opening the jaws, keep the exposed metal areas clean. If dust accumulates, wipe with a
clean dry cloth. To prevent rust, wipe metal surfaces with oil from time to time. Avoid getting oil on
non-metallic surfaces. Use only high quality, low-viscosity machine oil such as sewing machine oil.
• This product undergoes a 100% inspection at the time of shipment. If any layers of the core
come apart slightly during shipment, this will not a󰀨ect the functioning of the product.
Four metal surfaces are
exposed with the clamp
is opened.
Metal surfaces
7. Servicing
If you encounter any problems during use, or if the device does not appear to be operating normal-
ly, contact your dealer or nearest YOKOGAWA representative.
8. Appendix
Waste Electrical and Electronic Equipment (WEEE)
(EU WEEE Directive valid only in the EEA* and UK WEEE Regulation in the UK)
This product complies with the WEEE marking requirement. This marking indicates that
you must not discard this electrical/electronic product in domestic household waste.
When disposing of products in the EEA or UK, contact your local Yokogawa o󰀩ce in
the EEA or UK respectively.
* EEA: European Economic Area
Authorized Representative in the EEA
Yokogawa Europe B. V. is Authorized Representative of Yokogawa Test & Measurement Corporation
in the EEA for this Product. To contact Yokogawa Europe B. V., see the separate list of worldwide
contacts, PIM 113-01Z2.
Disposing of the Instrument
When disposing of the instrument, follow the laws and ordinances of your country or region.
IM 751552-01E 2/2
