2. Style of Upgrade
In principle, the method of upgrading is by batch-upgrade from the currently installed CENTUM V
and CENTUM-XL systems to the latest CENTUM VP (Vnet/IP, FIO).
To upgrade the FCS of CENTUM-XL, use the Cabinet Utility Kit (ACUKT2). To upgrade from
CENTUM V, please contact the Yokogawa operation desk.
2.1 Batch-upgrade to Vnet/IP, FIO
For HMI, upgrade the existing operator station (COPSV or EOPS, etc.) to the human interface
station (HIS) of CENTUM VP. In this HIS, use VI702 as the interface card for connecting to Vnet/IP.
For the control station, upgrade the existing CFCS2 or EFCS, etc. to FFCS-V (*1). Replace
theconventionalstationcontrolnest(SCN)withaneweldcontrolunit(FCU),replacethe
I/O nestwith a node unit, and replace the SIO-system I/O card with a FIO-system I/O card,
respectively.
ThecurrentlyinstalledSCcardsandeldwiringcanbeusedasis.
*1: FFCS-V is an FCS for V-net/IP and FIO of CENTUM VP. At the time of upgrade, use AFV30 as an FCU.

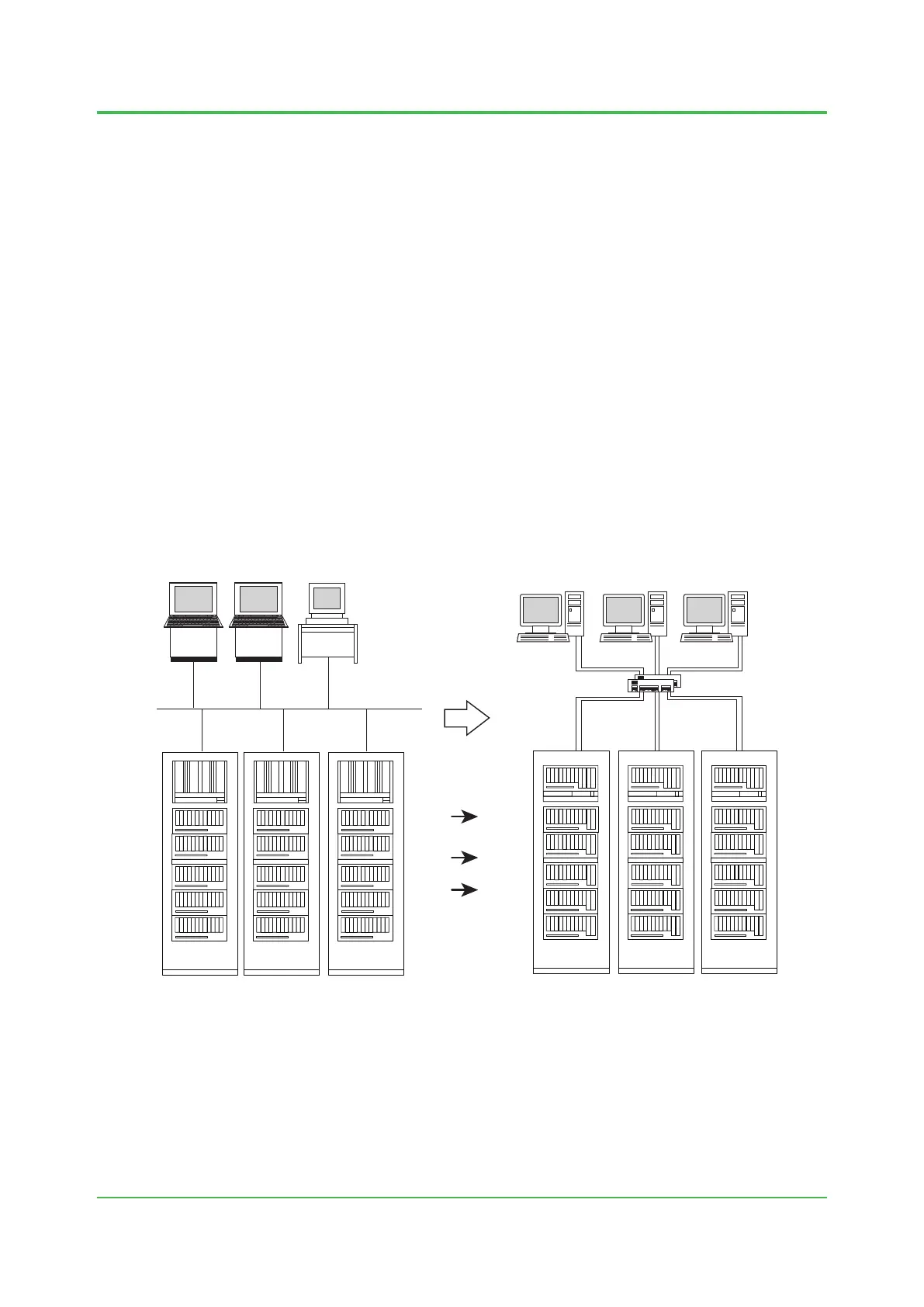

Thefollowinggureshowsanexampleofbatch-upgradeofCENTUM-XLtoCENTUMVP(Vnet/IP,
FIO).
HF bus
FCU
Node
Unit
FIO
SCN
I/O
Nest
SIO
L2SW
FFCS-VEFCD
Vnet/IP
F020101E.ai
EOPS EOPS ENGS HIS HIS ENG
Figure An example of batch-upgrade from CENTUM-XL to CENTUM VP (Vnet/IP, FIO)
