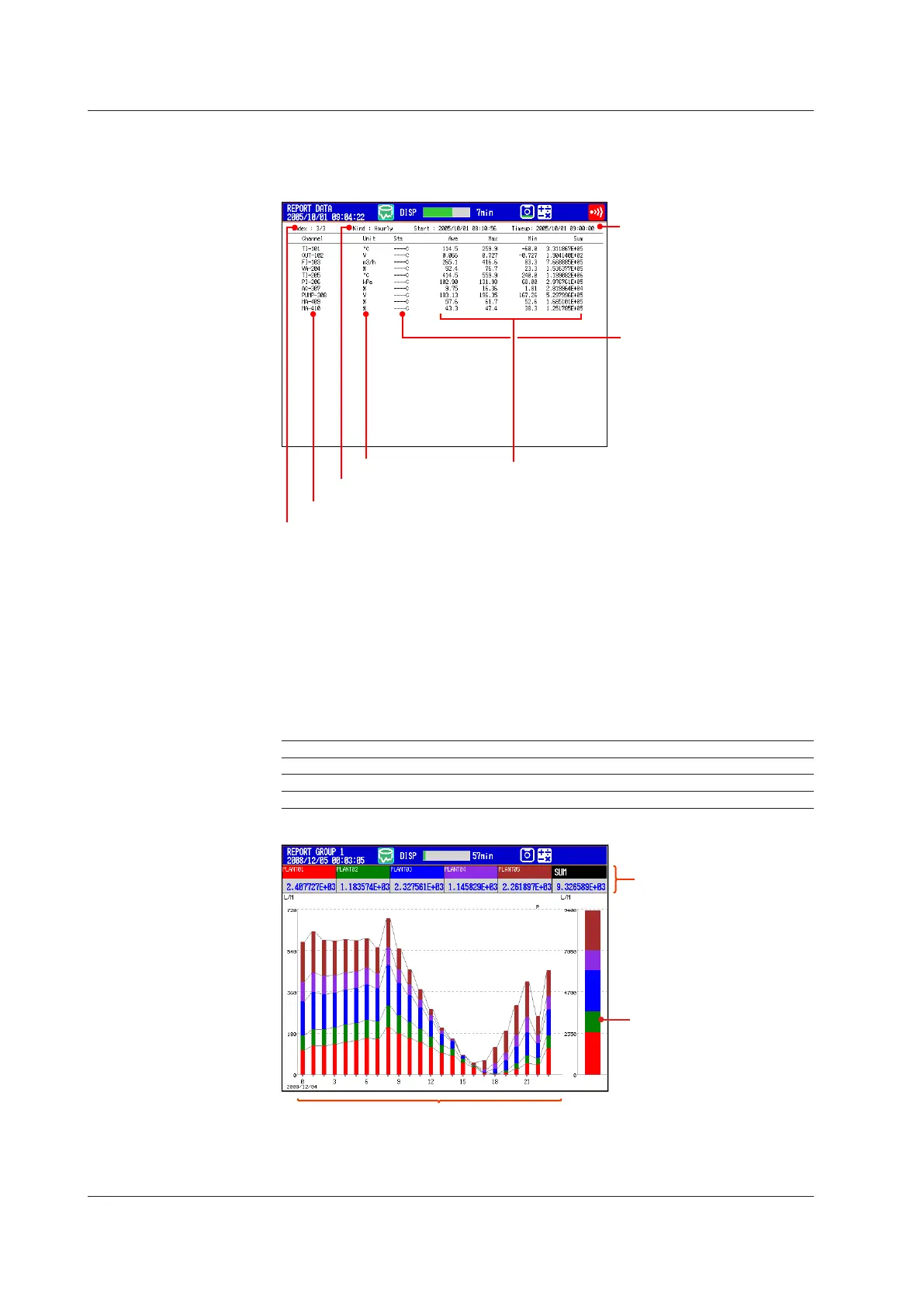

ReportData(/M1and/PM1Options)
Report data residing in the internal memory can be displayed.
For the operating procedure, see section 4.5.
Number of the displayed report data/number of report data in the internal memory
Start: Start date/time
Timeup: Report date/time
Tag or channel number
Unit
Report type
Report data status
Indicates that the following
occurred between the report
interval.
E: Error data
O: Over data
P: Power failure
C: Time change
B: Burnout
Average, maximum, minimum, sum,
or instantaneous value
StackedBarGraph(/M1and/PM1options)
You can display the report data (that is stored in the internal memory) of each report
group in a stacked bar graph.
For operating instructions, see section 4.11.
For information about report groups, see section 9.5.
• TypesofDisplayedData
The type of displayed data is determined by the report kind, which is set using the
report function.
ReportKind DisplayedReportData
Hourly, Hourly + daily Sums for each hour and sums for the day
Daily + weekly Sums for each day and sums for the week
Daily, Daily + monthly Sums for each day and sums for the month
Hourly report group sums (bar graph)
Sums for the day (bar graph)
of a report group
Example: Hourly + daily display
Daily sums of each channel
and the daily sums of all
channels of the report group
If you select a bar graph, the
sum of the hour selected with
the cursor is displayed.
1.3Display
