• DisplayModes

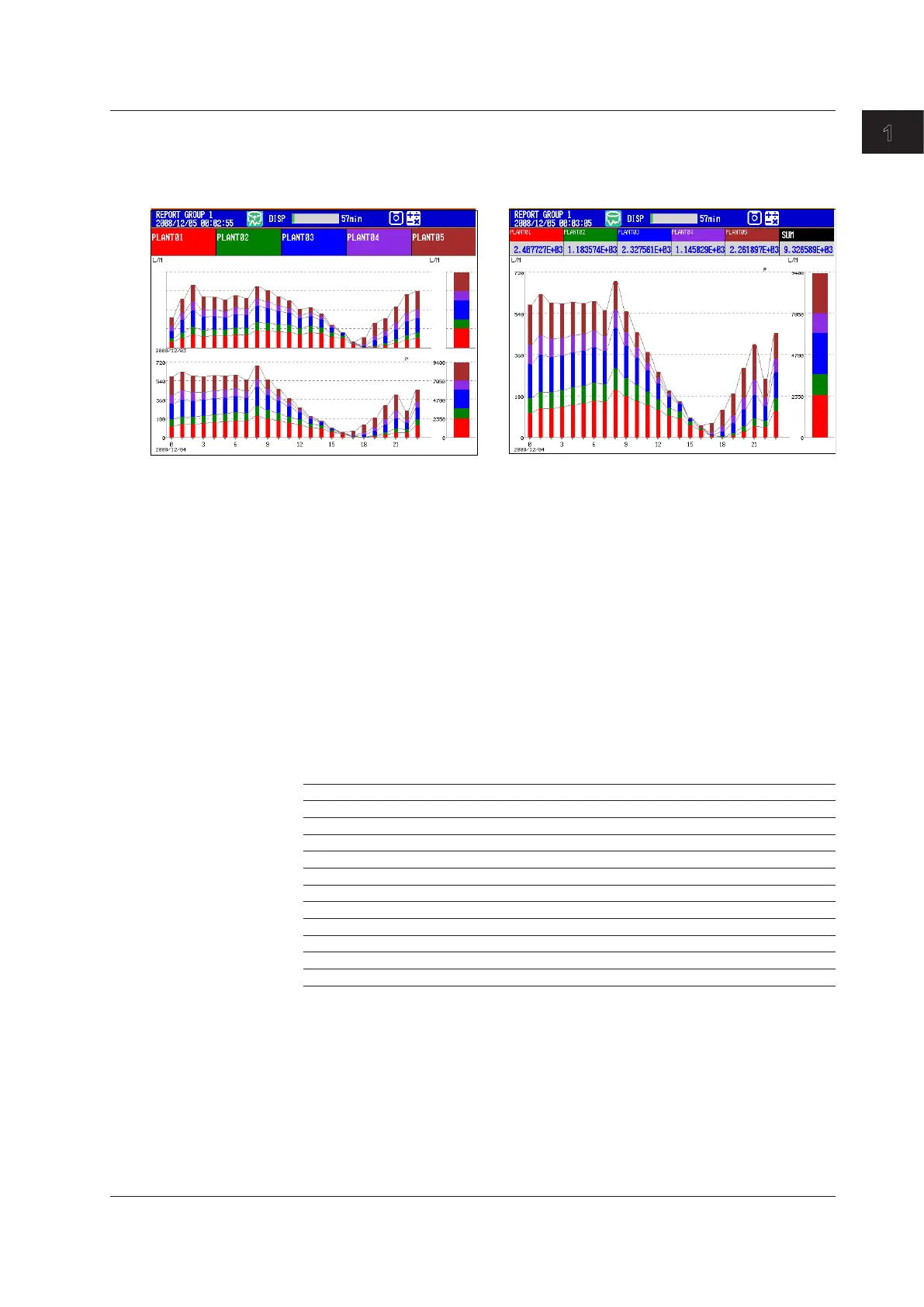

You can switch the bar graph between single graph and dual graph display.
Single graph display
Dual graph display (Shows the data from two
consecutive periods)
StatusDisplay
The following displays available.
For the operating procedure, see section 4.5.
• RelayStatusDisplay
Displays the status of the alarm output relay and internal switch.
• ModbusClientStatusDisplayandModbusMasterStatusDisplay
Displays the command status.
• EventLevelSwitchStatus(Releasenumber3orlater)
Displays the status of the event level switches.
LogDisplay
Displays various logs (operation log).
For the operating procedure, see section 4.9.
LogType Description
Login
*1
Log of login/logout, log of time setting, and log of power failure
Error Log of error messages
Communications Log of communication commands
FTP transfer Log of FTP transfers
WEB Log of Web operations
E-mail transmission Log of e-mail transmissions
SNTP Log of accesses to the SNTP server
DHCP Log of accesses to the DHCP server
MODBUS Log of communications using Modbus client or Modbus master
Operation
*2
Log of operations
Change settings
*2
Log of setting changes
*1 Only on DXs without the /AS1 advanced security option
*2 Only on DXs with the /AS1 advanced security option
