3.4 Mounting FU20 using quick removal adapters
The FU20 can also be mounted using one of the optional quick-removal adapters (/NSS,
/NTI, /BSS, /BTI, see Figure 5). For a detailed description of these adapters see Sections
4 and 7 of this Instruction Manual.
1 Apply Teflon tape to the threaded end of this adapter;
2 Install the adapter in the process connection. Tighten the adapter using a
wrench on the adapter flats.
3 Apply Teflon tape to the appropriate threaded end of the sensor;
4 Place the O-ring and screw the mating part of the adapter on the sensor;
5 Mount the sensor in the adapter, making sure that the O-ring seals properly;
6 Hand-tighten the adapter nut.
Other mounting examples of the FU20 are given in Figure 6 and 7.
Note: DO NOT over tighten the adapter to prevent damage.
The maximum Applicable torque see chapter 2.8.

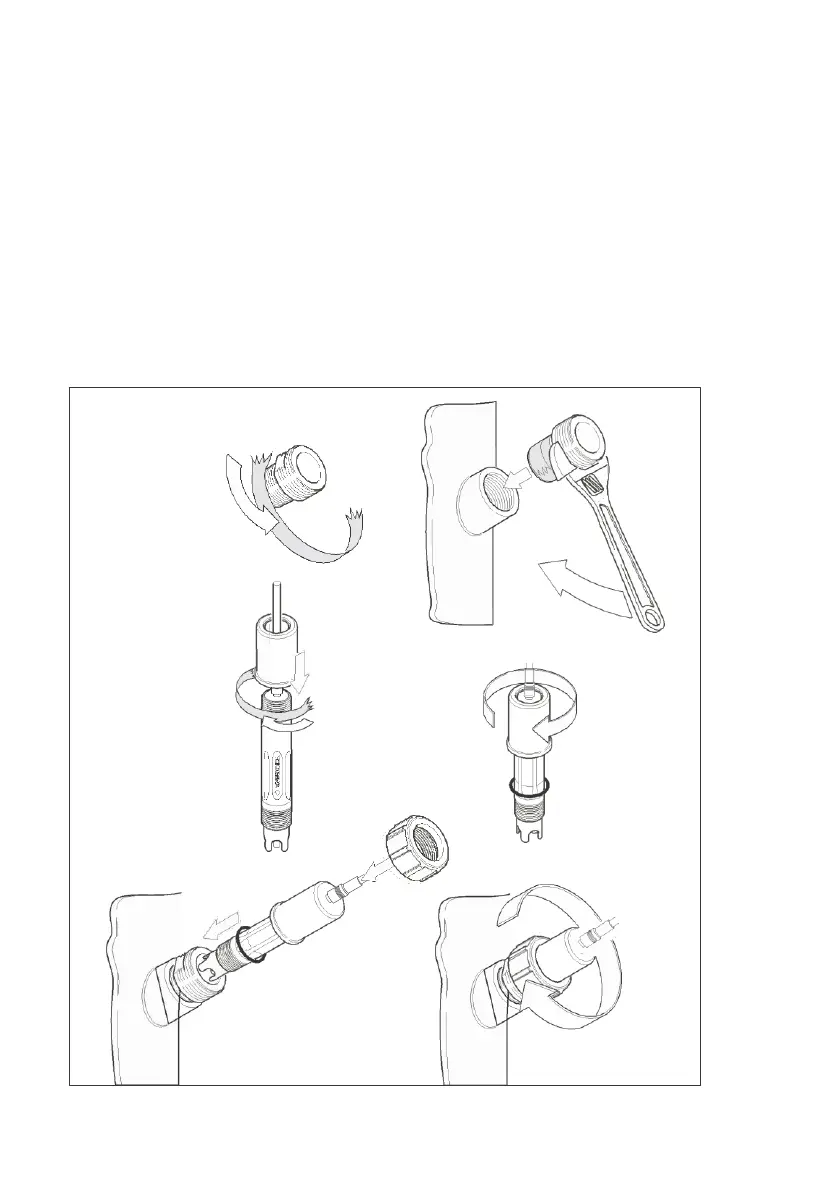

Figure 5: Mounting of sensor with option /NSS, /NTI, /BSS or /BTI
5
3
1
2
4
6
