8
IM 12B06J03-02EN-P

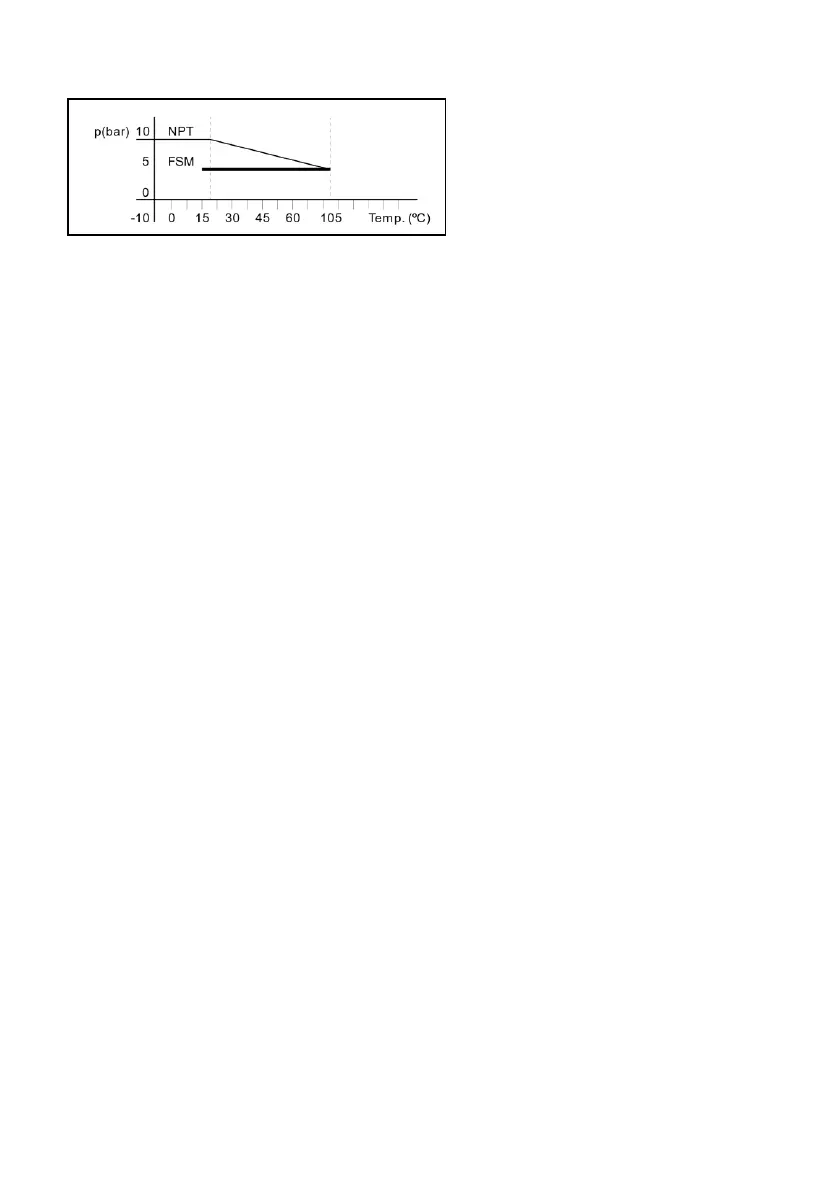

Graph 1: Pressure & Temperature range FU20
Note: The pH operating range at room temperature is 0-14 pH, but at high temperature or
range outside 2-12 pH the lifetime will be seriously shortened.
Note: The upper process temperature for the intrinsically safe version is limited by the
ambient temperature (T
amb
.) defined for each temperature class (T3, T4, T5 and T6)
2.6 Shipping details
FU20-03/05/10 FU20-20 FU20-VP/VS
Package size (LxWxH) 410 x 130 x 75 mm 360 x 220 x 105 mm 300 x 100 x 75 mm
16.1 x 5.1 x 3.0 inch 14.2 x 8.7 x 4.1 inch 11.8 x 3.9 x 3.0 inch
Package weight (max.) 0.92 kg (2.02 lbs) 1.62 kg (3.57 lbs) 0.33 kg (0.73 lbs)
2.7 Environmental conditions
Storage temperature : -10 to +50 ºC (14 to 122 ºF)
Ingress Protection : IP67 (conform IEC 60529)
2.8 Mechanical specifications
Max. torque on sensor body : - NPT, FSM 12 Nm
- FTD 8 Nm
