YOKOGAWA ISC450G User Manual

6
IM 12D06D05-01E
min.185 (7.25 " )
min.195(7.75
"
)
138(5.43 " )
138
(5.43
" )
M6
M6
M5
138
(5.43
" )
+1
0
138 (5.43
"
)
+1 0

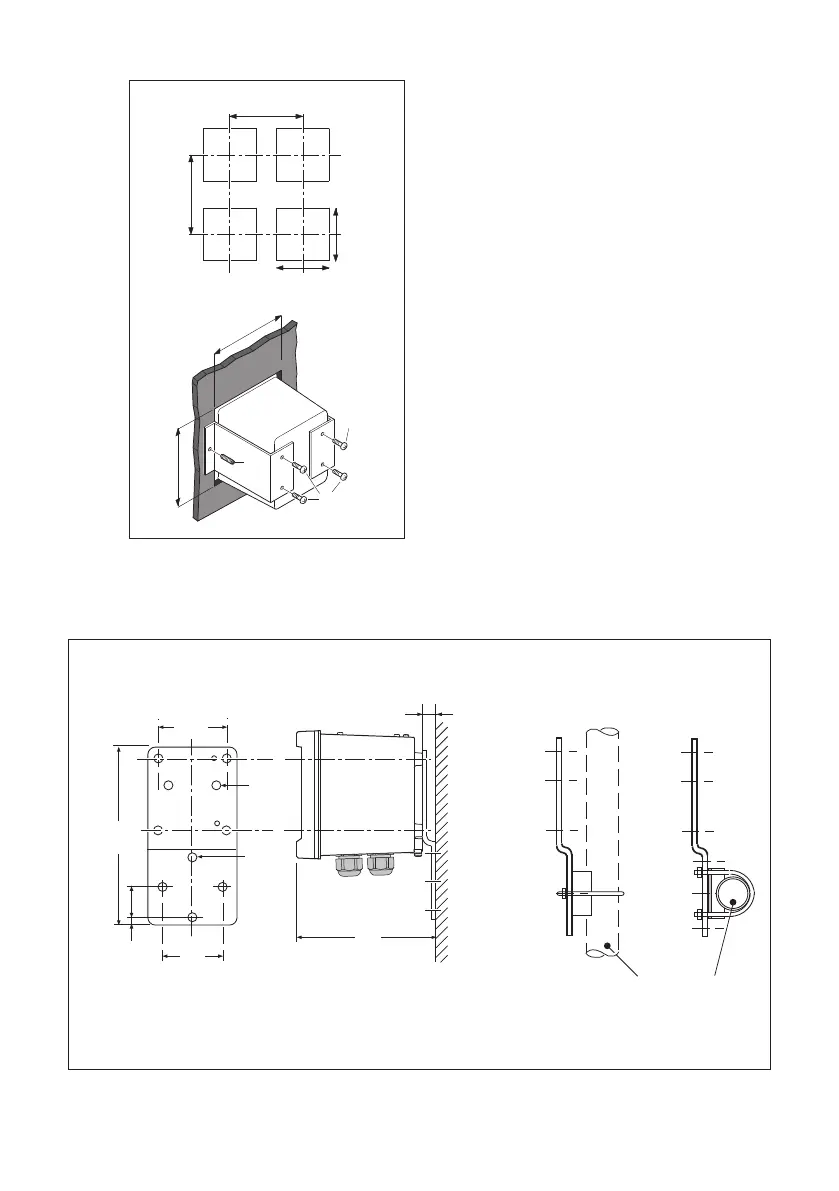

Figure 3-2. Option /PM: panel mounting diagram
Figure 3-3. Option /U: wall and pipe mounting diagram
80
(3.15")
2x Ф6.5
(0.26")
4x Ф10
(0.4")
200
(7.87")
70
(2.75")
154.5
(6.08")
2" ND. pipe
pipe mounting
(horizontal)
pipe mounting
(vertical)
wall mounting
15
(0.6")
35
(1.38")
13
(0.51")
Unit: mm (inch)
(Note) When option code "/UM" is specified, universal pipe/wall/pannel mounting kit are supplied-
--same as option code "/U" and "/PM" both specified.
