Extension cable may be purchased in bulk
quantities or in pre-finished lengths. In the case
of bulk quantities cut to length, then it is neces-
sary to terminate the cable as shown below.
TerminationprocedureforWF10cable.
1. Slide3cmofheatshrinktube(9x1.5)
over the cable end to be terminated.
2. Strip9cmoftheouter(black)insulating
material, taking care not to cut or damage
internal cores.
3. Remove loose copper screening, and cut
off the cotton packing threads as short as
possible.
4. Stripinsulationfromthelast3cmofthe
brown, and the white coaxial cores.
5. Extract the coaxial cores from the
braid, and trim off the black (low-noise)
screening material as short as possible.
6. Insulate the overall screen and the 2
coaxial screens with suitable plastic
tubing.
7. Stripandterminateallendswithsuitable
(crimp) terminals and identify with
numbers as shown.
8. Finallyshrinktheoverallheatshrinktube
into position.
14 Overall Screen
11
12
12
13
14
14 16
15
1314141615
17
11
17
11 Red
12 Blue
15 Core 16 Screen
White Co-axial cable
13 Core 17 Screen
Brown Co-axial Cable
17 (screen)
14 (overall screen)
12 (blue)
11 (red)
13 (core)
16 (screen)
15 (core)
Co-axial cable
(white)
Co-axial cable
(brown)
11
12
13
14
15
16
17
11
12
13
14
15
16
17
BA10 WF10 EXA TRANSMITTER
/ CONVERTER

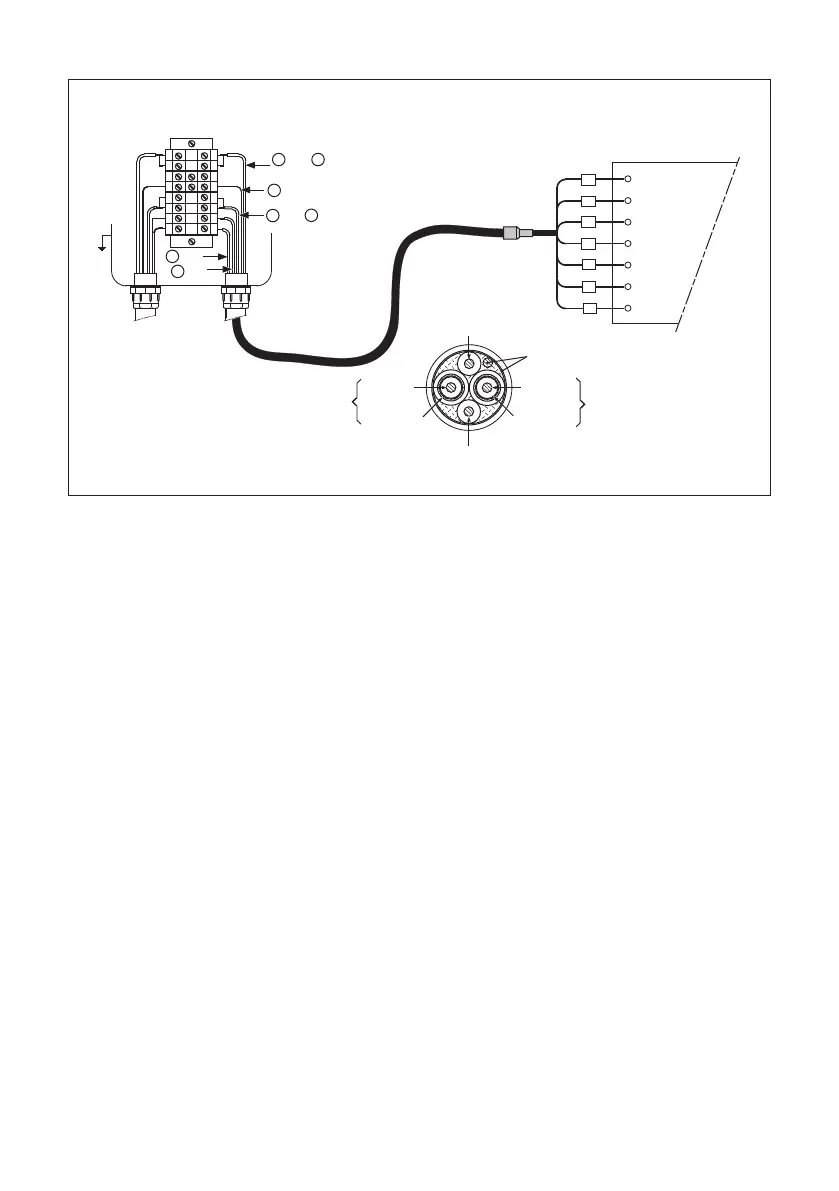

Figure 3-10. Connection of WF10 extension cable and BA10 junction box
