YOKOGAWA ISC450G - Page 33

25
IM 12D06D05-01E
5

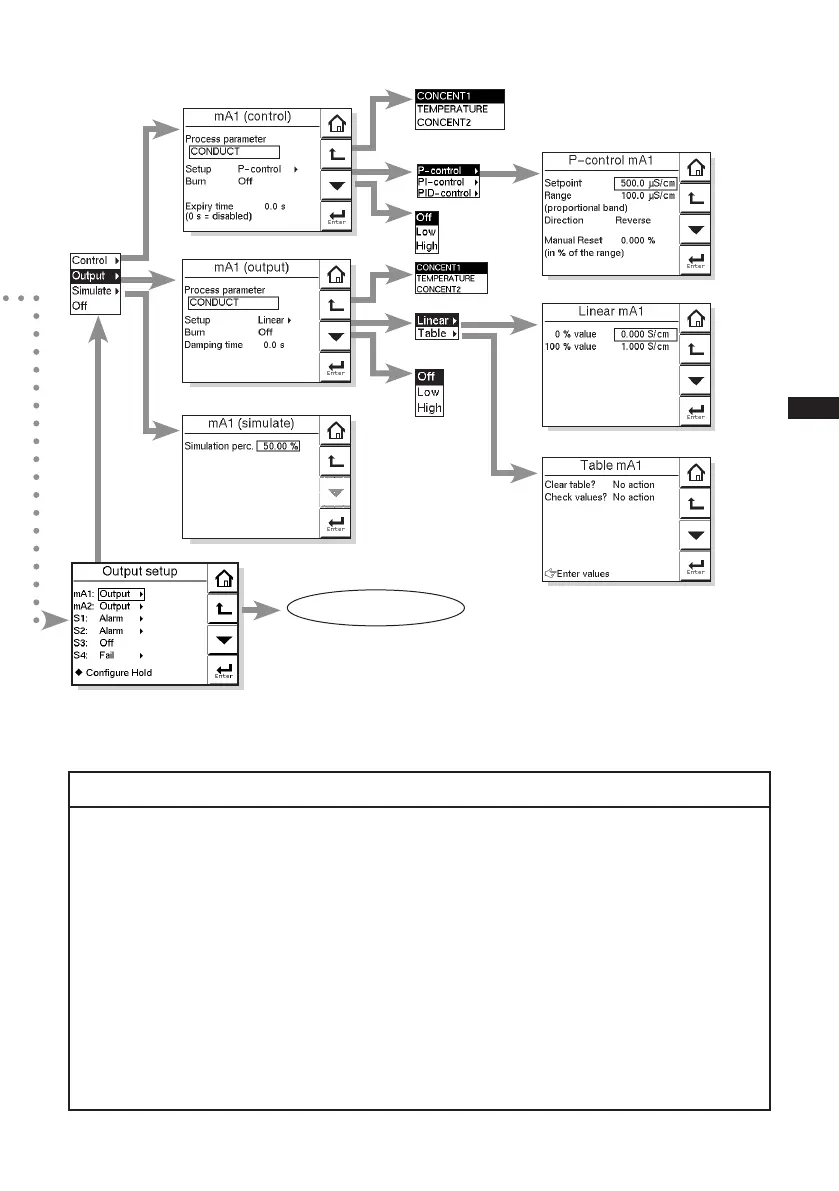

MENU STRUCTURECOMMISSIONING
Menu Parameter Default Range
values min. max.
mA1 (output) Damping time 0.0 sec. 0.0 sec. 3600 sec.
LinearmA1 0%Value 0.000S/cm -inf  +inf
LinearmA1 100%Value 1.000S/cm -inf  +inf
LinearmA2 0%Value 0.0ºC/ºF -inf  +inf
LinearmA2 100%Value 100.0ºC/ºF -inf  +inf
P-controlmA1 Setpoint 500.0mS/cm -inf  +inf
P-controlmA1 Range 100.0mS/cm -inf  +inf
P-controlmA1 ManualReset 0.000% 0%  100%
P-controlmA2 Setpoint 25.0ºC/ºF -inf  +inf
P-controlmA2 Range 10.0ºC/ºF -inf  +inf
P-controlmA2 ManualReset 0.000% 0%  100%
mA1(simulate) Simulationperc. 50% 0%  100%
Hold FixedvaluemA1 12.00mA 3.6mA  21mA
Hold FixedvaluemA2 12.00mA 3.6mA  21mA
mA2 similar structure to mA1
