YOKOGAWA MT300 Adjustment Manual

2/12 IM MT300-71EN
6.
Press ENTER. The adjustment menu appears.
The features that can be adjusted on this instrument appear.
Adjust the D/A output.
Adjust the voltage/current
measurement.
Adjusting the D/A Output
1.
Connect this instrument to a digital multimeter.
Forthewiringmethodandinstrumentsetup,see“Explanation.”
2.

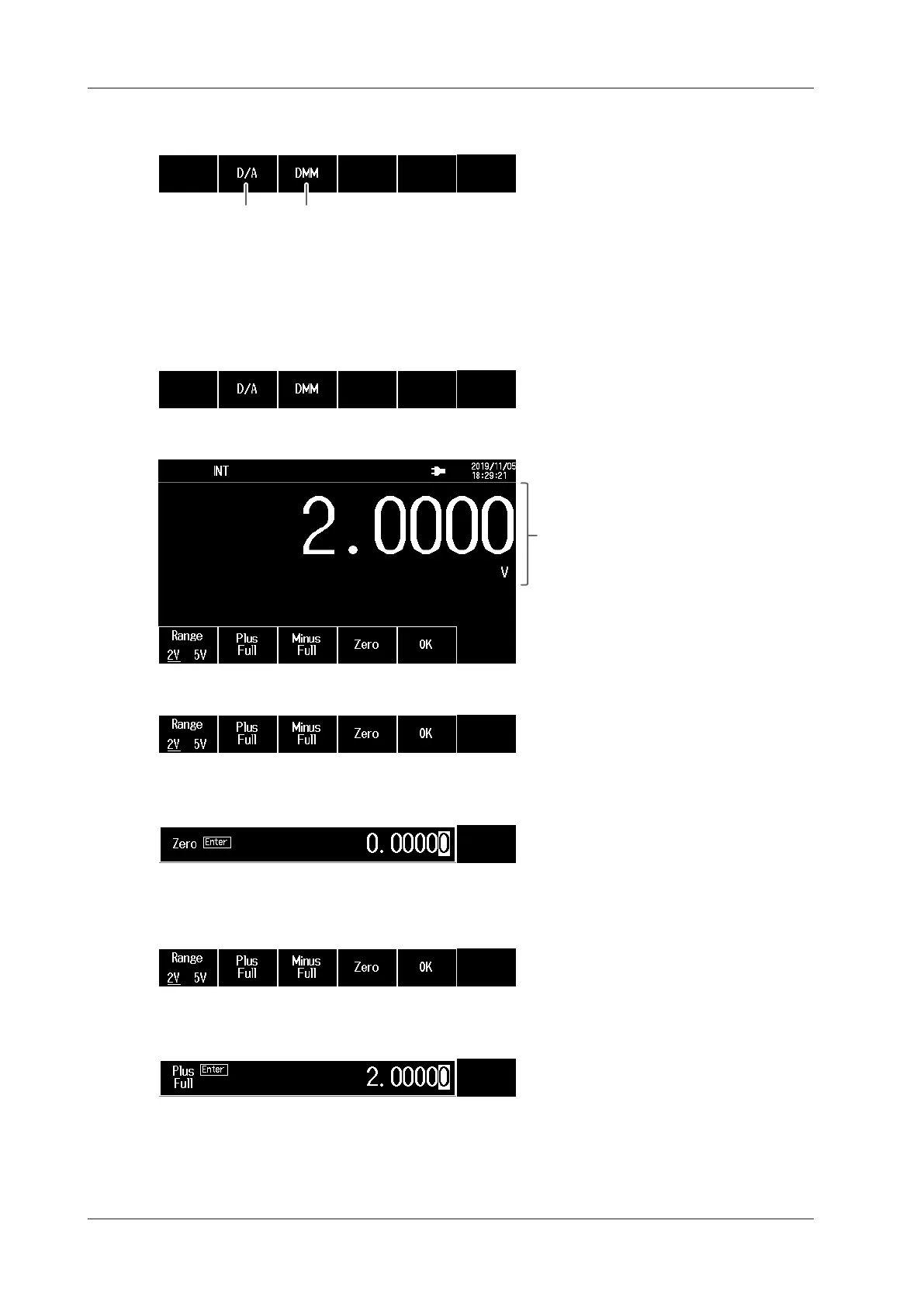

Press the D/A soft key. Either 2 V or 5 V is output, and the D/A output adjustment menu appears.
3.
Press the Range soft key to select the 2 V range.
Output value
4.
Press the Zero soft key. The zero point (0 V) is output, and the input screen appears.
5.
When the digital multimeter display stabilizes, use the arrow(▲,▼,◄,and►)keystoinputthevalue
displayed on the digital multimeter.
6.
Press ENTER. The zero point adjustment value is set.
7.
Press the PlusFull soft key. The full-scale positive value (+2 V) is output, and the input screen appears.
8.
When the digital multimeter display stabilizes, use the arrow(▲,▼,◄,and►)keystoinputthevalue
displayed on the digital multimeter.
9.
Press ENTER. The full-scale positive adjustment value is set.
