Quick Reference Instruction Manual

Wiring

Transmitter

44 / 54

IM01U10A00-00EN-R, 2nd edition, 2017-08-29

Passive status

output P/Sout

Value

Output current ≤ 200 mA

Power supply ≤ 30 V

P/Sout+ or Sout+

P/Sout- or Sout-

ROTAMASS

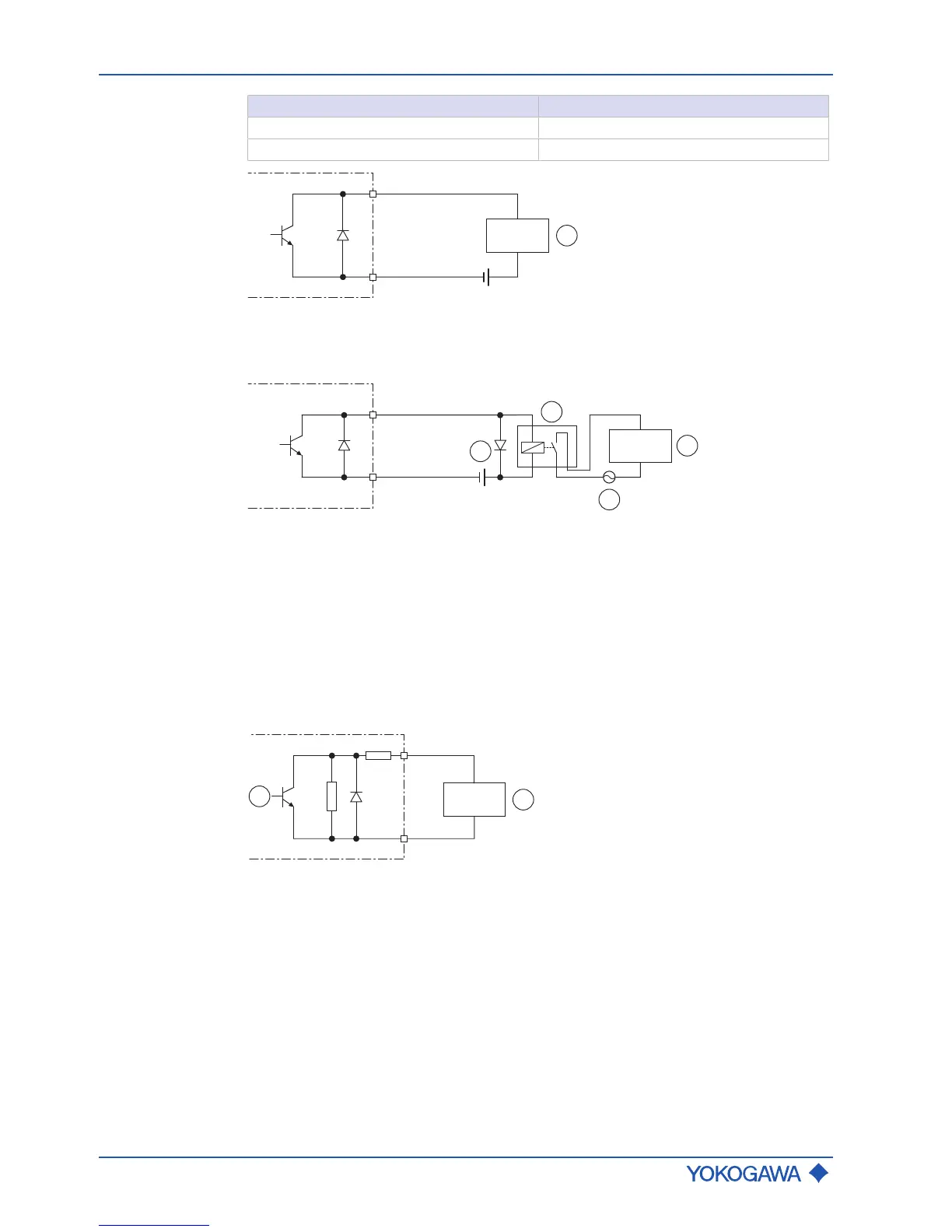

Fig.33: Passive status output connection P/Sout

① External device

P/Sout- or Sout-

P/Sout+ or Sout+

ROTAMASS

Fig.34: Passive status output connection P/Sout for solenoid valve circuit

① Relay

② Solenoid valve

③ Magnetic valve power supply

④ Protective diode

A relay must be connected in series to switch alternating voltage.

Passive pulse

or status output

P/Sout (NAMUR)

Output signals according to EN 60947-5-6 (previously NAMUR, worksheet NA001):

10kΩ

1kΩ

ROTAMASS

P/Sout+

P/Sout-

Fig.35: Passive pulse or status output with switching amplifier connected in series

① Passive pulse or status output

② Switching amplifier
