YOKOGAWA Rotamass Prime Quick Reference Instruction Manual

Quick Reference Instruction Manual
Wiring
Transmitter
48 / 54
IM01U10A00-00EN-R, 2nd edition, 2017-08-29
NOTICE
Connect the grounding conductor to the grounding screw (see chapter Connection
terminals [}35], figure, point 2).

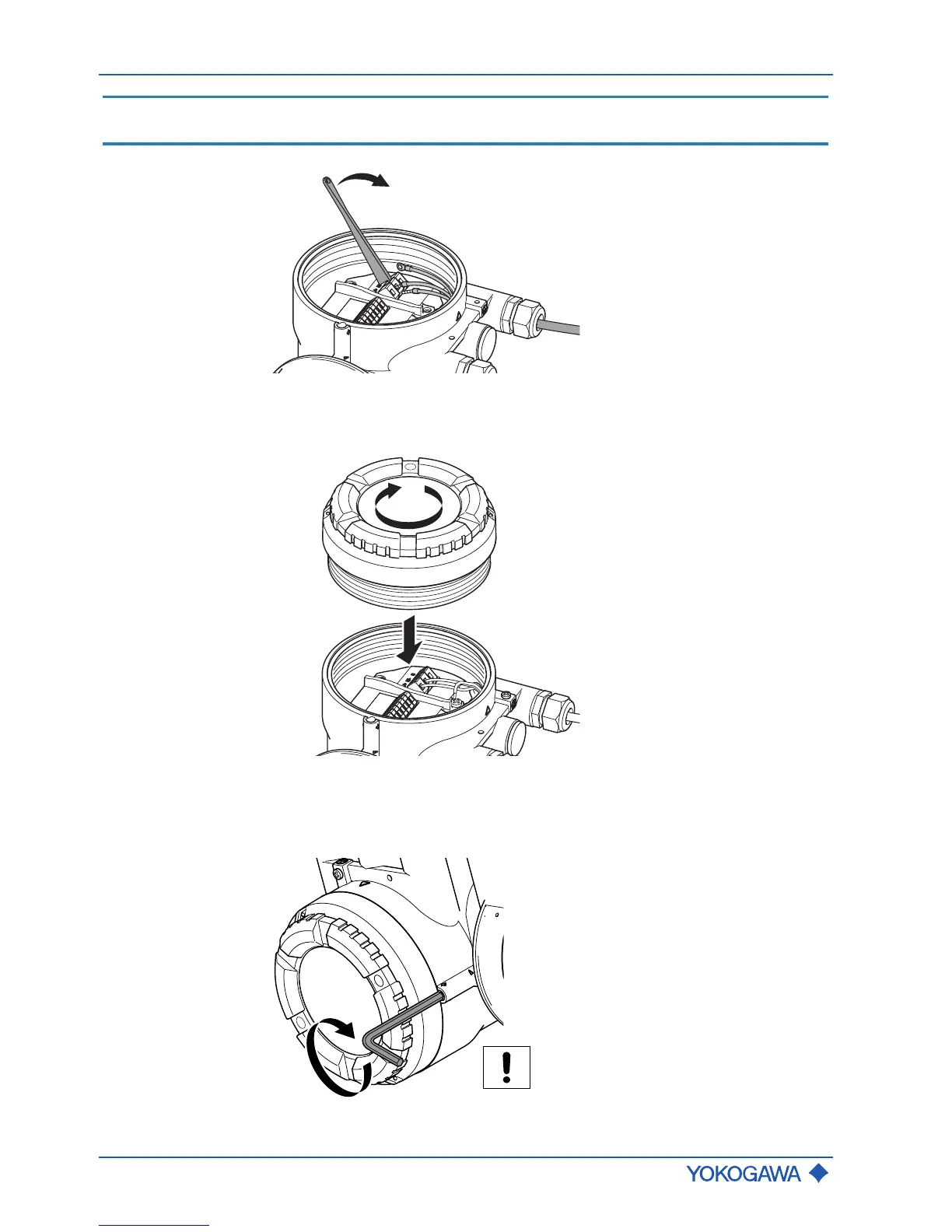

6. Fit grounding conductor with a terminal lug and affix to grounding conductor.
7. Screw cable gland on tightly.
8. Screw back cover onto transmitter housing in clockwise direction.
9. Using an Allen wrench (Size: 3.0), tighten the locking screw in clockwise direction.
