Connecting cable
Quick Reference Instruction Manual
Wiring
IM01U10A00-00EN-R, 2nd edition, 2017-08-29
33 / 54
7.3.1 Connection terminals of connecting cable
The delivery includes an operating tool for connecting the connecting cable to the
connection terminals.
D +
D -
S1 +
S1 -
S2 +
S2 -
TP1
TP2
TP3
D +
D -
S1 +
S1 -
S2 +
S2 -
TP1
TP2
TP3
COM
3 2 1
1 2 3 4 5 6
1 Driver circuit (D+/D-) 4 Signal grounding
2 Sensor circuits (S1+/S1-, S2+/S2-) 5 Transmitter
3 Temperature measurement circuits
(TP1, TP2, TP3)
6 Sensor
Standard
connecting
cable
option L
␣␣␣

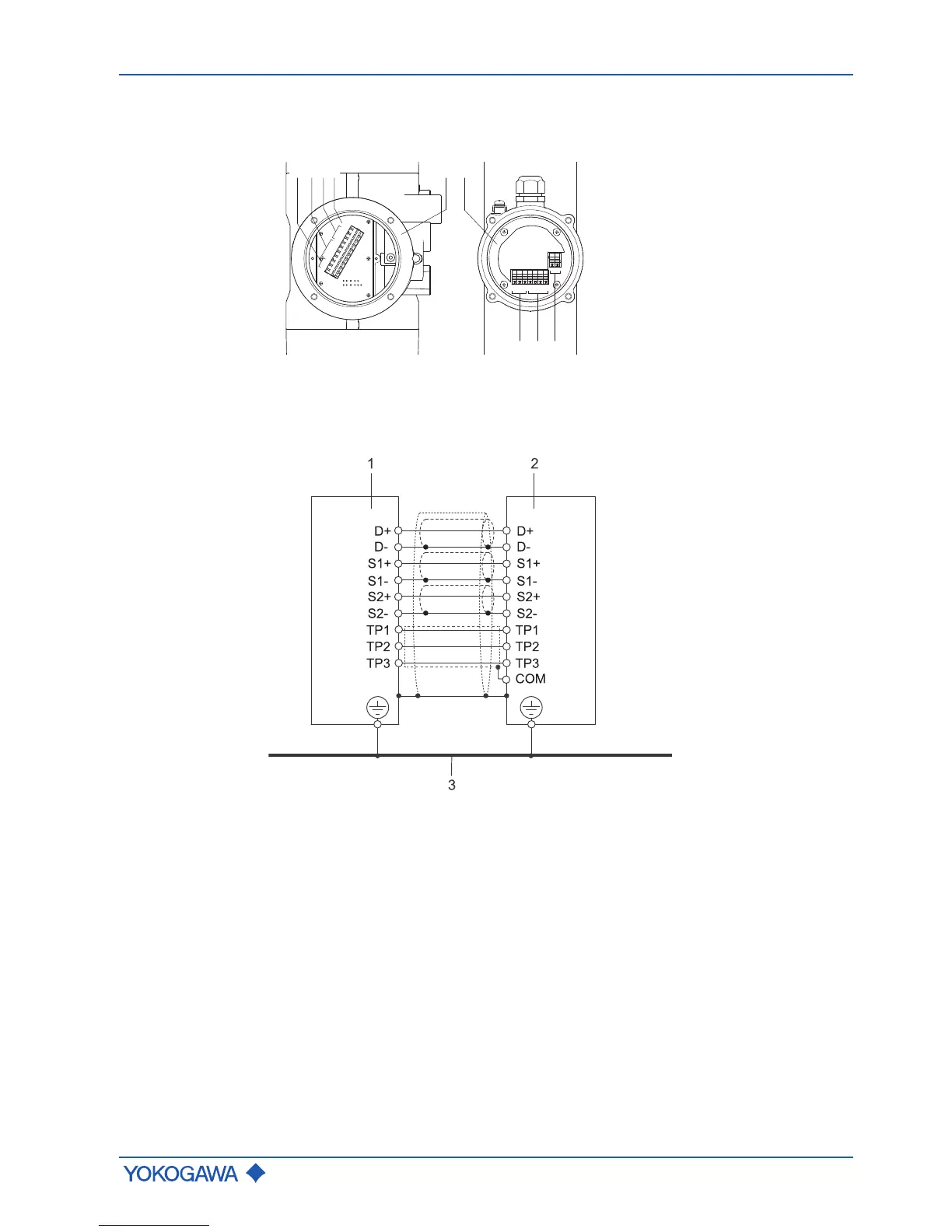

Fig.18: Electrical terminal diagram: Connection terminals on transmitter and sensor
1 Sensor
2 Transmitter
3 Potential equalization system
