Quick Reference Instruction Manual

Wiring

Transmitter

48 / 54

IM01U10A00-00EN-R, 2nd edition, 2017-08-29

NOTICE

Connect the grounding conductor to the grounding screw (see chapter Connection

terminals [}35], figure, point 2).

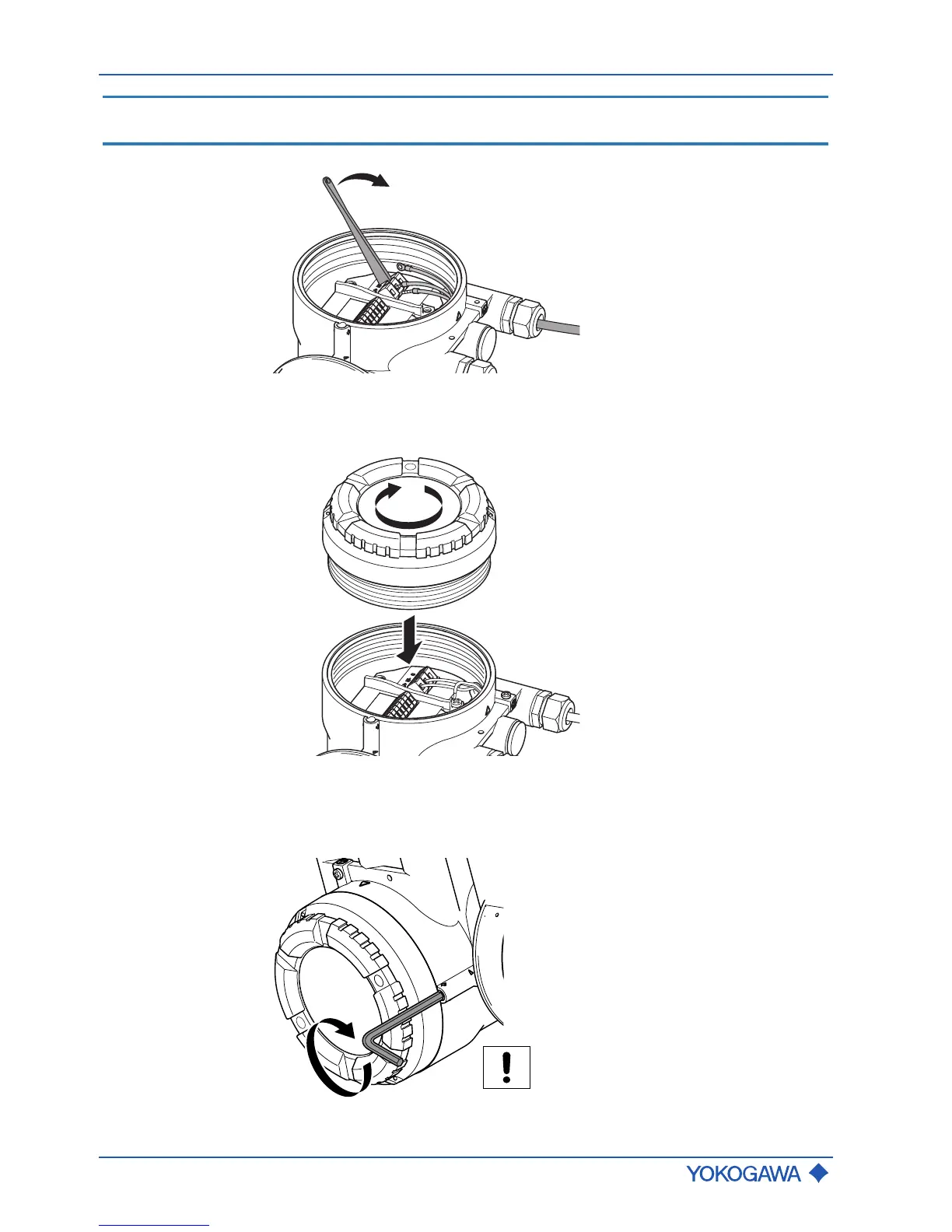

6. Fit grounding conductor with a terminal lug and affix to grounding conductor.

7. Screw cable gland on tightly.

8. Screw back cover onto transmitter housing in clockwise direction.

9. Using an Allen wrench (Size: 3.0), tighten the locking screw in clockwise direction.

YOKOGAWA Rotamass Supreme Quick Reference Instruction Manual
