YOKOGAWA UM33A Operation Guide

IM 05P03D21-11EN page 8/8

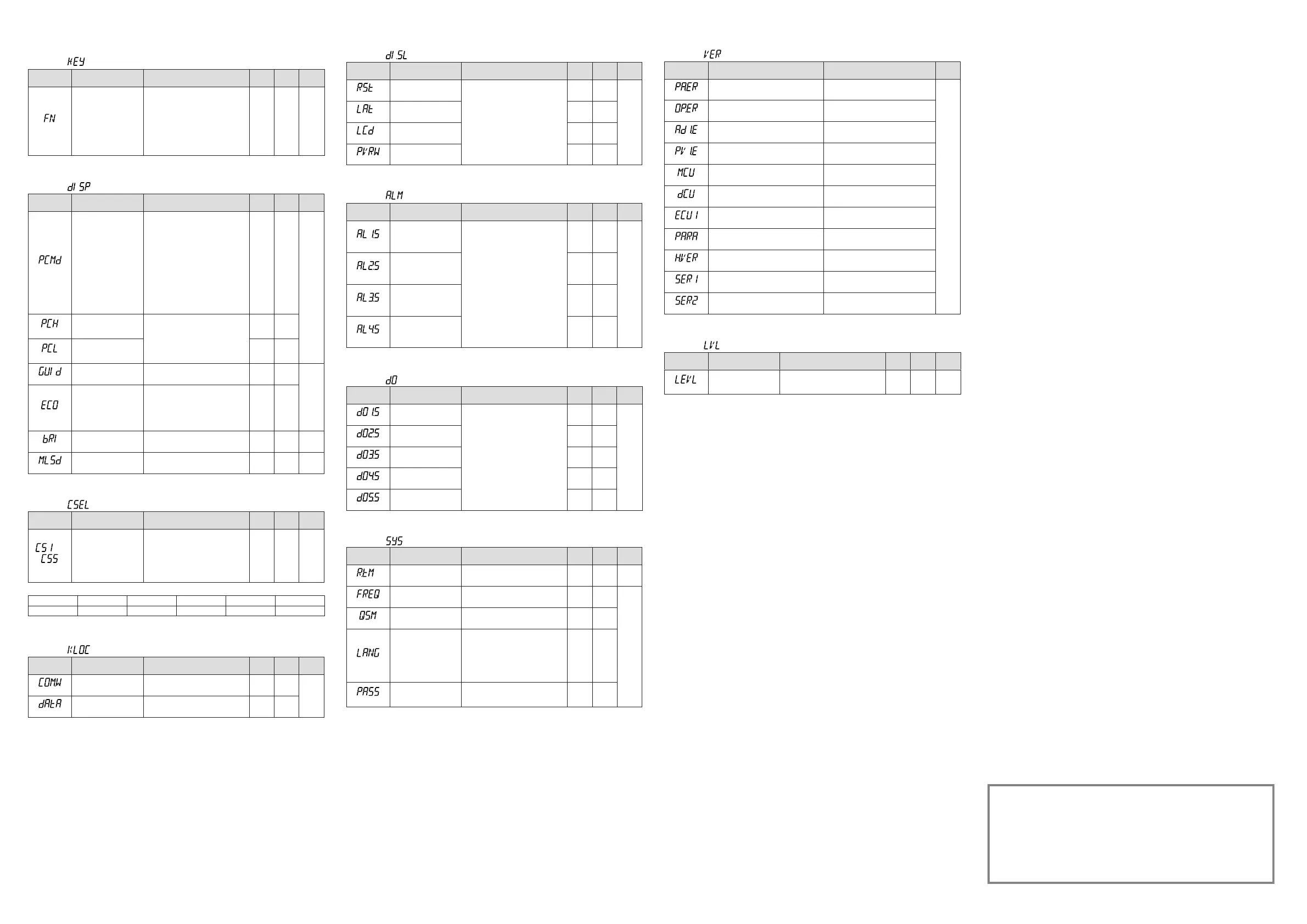

■KeyActionSettingParameter
Menusymbol: (KEY)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(Fn)
Userfunctionkey-n
actionsetting
OFF:Disable
LTUP:LCDbrightnessUP
LTDN:LCDbrightnessDOWN
BRI:AdjustLCDbrightness
LCD:LCDbacklightON/OFFswitch
LAT:Latchrelease(ACK)
AL:Alarmsetpointsetting
RST:PVpeakandbottomvalues
reset
RST EASY
■DisplayFunctionSettingParameter
Menusymbol: (DISP)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(PCMD)
ActivecolorPVdisplay
switch
0:Fixedinwhite
1:Fixedinred
2:Linktoalarm1(AlarmOFF:white,
AlarmON:red)
3:Linktoalarm1(AlarmOFF:red,
AlarmON:white)
4:Linktoalarm1or2(AlarmOFF:
white,AlarmON:red)
5:Linktoalarm1or2(AlarmOFF:
red,AlarmON:white)
6:PVlimit(Withinrange:white,Out
ofrange:red)
7:PVlimit(Withinrange:red,Outof
range:white)
10:LinktoDI(ON:red,OFF:white)
0
EASY
(PCH)
PVcolorchangehigh
limit
SetadisplayvaluewheninPVlimit
orSPdeviation.
-19999to30000(Setavaluewithin
theinputrange.)
Decimalpointpositiondependson
the input type.
0
(PCL)
PVcolorchangelowlimit
0
(GUID)
GuidedisplayON/OFF OFF:Non-display,ON:Display
ON
STD
(ECO)
Economymode
OFF:Disable
1:EconomymodeON(Allindications
exceptPVdisplayOFF)
2:EconomymodeON(Allindications
OFF)
3:Brightness10%(wholeindication)
OFF
(BRI)
Brightness (Dark)1to5(Bright) 3 EASY
(MLSD)
Leastsignicantdigital
maskofPVdisplay
OFF:Withleastsignicantdigit
ON:Withoutleastsignicantdigit
OFF STD
■SELECTDisplaySettingParameter
Menusymbol: (CSEL)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
to
(CS1toCS5)
SELECTDisplay-1to-5
registration
Registertheoperationparameter
(excepttheOperaitonMode)thatis
frequentlymodiedtodisplayitinthe
OperationDisplay.
OFF,2301to5000
Forthesettingrange,seeUser's
Manual.
OFF STD
UsethefollowingtabletorecordSELECTDsipalysettingvalue.
Parameter n=1 n=2 n=3 n=4 n=5
CSn
■KeyLockSettingParameter
Menusymbol: (KLOC)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(COM.W)
Communicationwrite
enable/disable
OFF:Enable,ON:Disable
OFF
STD
(DATA)
Front panel parameter
data(▼,▲)keylock
OFF:Unlock,ON:Lock
(AvailableforOperationDisplayonly.)
OFF
■DIFunctionResistrationParameter
Menusymbol: (DI.SL)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(RST)
PVpeakandbottom
valuesreset
SetanIrelaynumberofcontactinput.
Set“OFF”todisablethefunction.
Standard terminals
DI1:5025,DI2:5026
5025
STD
(LAT)
Latchrelease(ACK)
5026
(LCD)
LCDbacklightON/OFF
switch
OFF
(PVRW)
PVred/whiteswitch
OFF
■AL1-AL4FunctionRegistrationParameter
Menusymbol: (ALM)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(AL1.S)
AL1functionselection
SetanIrelaynumber.Fortheitems
otherthanbelow,seeUser'sManual.
Ex.)Setthenumber4353forAL1.S
to use the alarm 1.
Set“OFF”todisablethefunction.
Nofunction:OFF
Alarm1:4353
Alarm2:4354
Alarm3:4355
Alarm4:4357
Alarm5:4358
Alarm6:4359
Alarm7:4361
Alarm8:4362
FAIL(NormallyON)output:4256
4353
STD
(AL2.S)
AL2functionselection
4354
(AL3.S)
AL3functionselection
4355
(AL4.S)
AL4functionselection
4357
■DOSettingParameter(E1-terminalArea)
Menusymbol: (DO)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(DO1.S)
DO11functionselection
SameasAL1.S
Set“OFF”todisablethefunction
4358
STD
(DO2.S)
DO12functionselection
4359
(DO3.S)
DO13functionselection
4361
(DO4.S)
DO14functionselection
4362
(DO5.S)
DO15functionselection
4256
■SystemSettingParameter
Menusymbol: (SYS)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(R.TM)
Restarttimer 0to10s.
0 STD
(FREQ)
Powerfrequency AUTO,60:60Hz,50:50Hz
AUTO
EASY
(QSM)
Quicksettingmode
OFF:Disable
ON:Enable
ON
(LANG)
Guidedisplaylanguage
ENG:English
FRA:French
GER:German
SPA:Spanish
Depe-
nds on
the
model
and
sufx
codes
(PASS)
Passwordsetting
0(Nopassword)to65535
Setting“0”means“withoutpassword
protection.”
0
■ ErrorandVersionConrmationParameter(fordisplayonly)
Menusymbol: (VER)
Parameter
symbol
Name of Parameter Status record
Display
level
(PA.ER)
Parameter error status
EASY
(OP.ER)
Optionerrorstatus
(AD1.E)
A/Dconvertererrorstatus1
(PV1.E)
PVinputerrorstatus
(MCU)
MCUversion
(DCU)
DCUversion
(ECU1)
ECU-1version(E1-terminalarea)
(PARA)
Parameterversion
(H.VER)
Productversion
(SER1)
Serialnumber1
(SER2)
Serialnumber2
■ParameterDisplayLevelParameter
Menusymbol: (LVL)
Parameter
symbol
Name of Parameter Setting Range
Initial
value
User
setting
Display
level
(LEVL)
Parameterdisplaylevel
EASY:Easysettingmode
STD:Standardsettingmode
PRO:Professionalsettingmode
STD EASY
*ForProfessionalsettingmode,seeUser’sManual.
