23
Step 2:
Press key for at least 1
second.
“RUN” lamp is lit, and starts the
program operation.
Step 1:
Press key to reset the
program operation, and confirm
that the UP150 shows the
operation display ➀, ➁ or ➂.
Confirm that “RUN”
lamp is not lit.
Step 2:
To enter the Program parameter
setting display, do key operation
as followings ([1] to [7]).
[1] Press the key for at
least 3 seconds, and enter the
Operating parameter setting display.
= Only figure of display are showed in following [2] to [7] =
[2] Press the key
repeatedly until “LOC” appears in
the PV display.
[3] Press the key once to
show “–1” in the SP display.
[4] Press the key once to
enter the Setup parameter setting
display.
[5] Press the key
repeatedly until “PRG” appears in
the PV display.
[6] Press the key once to
show “–1” in the SP display.
[7] Press the key once to
enter the program parameter
setting display.
Step 1:
Confirm that the controller shows
the operation display ➀, ➁ or ➂.
Step 3:
Set the parameter from “EV1” to
“WTZ” by using ,
and keys.
• Use or key to
change the value of parameters.
• Use key to register the
setting.
• When “creating program” is
finished, press the key (at least 3 seconds)
to return to the operation display ➀.
The period flashes
while the value is
being changed.

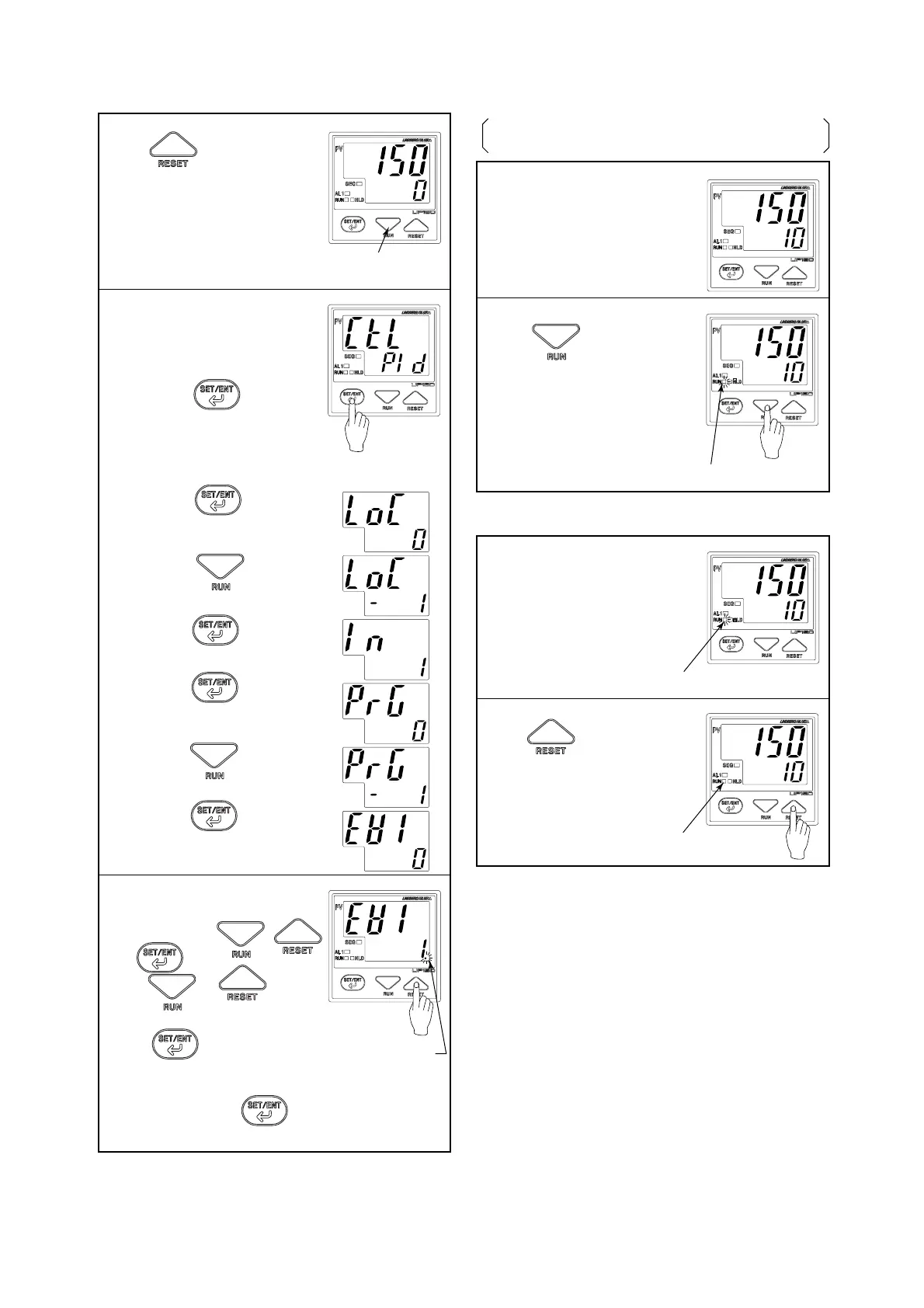

■ Creating Program ■ Start Program Operation
“Creating program” must be finished before starting
program operation.
“RUN” lamp is lit.
Step 2:
Press key for at least 1
second.
“RUN” lamp goes out, and
reset(stop) the program operation.
Step 1:
Confirm that the controller is in
program operation.
■ Reset(Stop) Program Operation
“RUN” lamp goes out.
“RUN” lamp is lit.
Note:
➀ “Program operation” mode can be changed (run/reset) by key
operation, communication or digital input signal.
➁ When the program operation is stopped (reset), control action is
also stopped, and the value of control output is to be 0%. (When 4
to 20 mA DC output type is used, 4 mA signal is output.)
