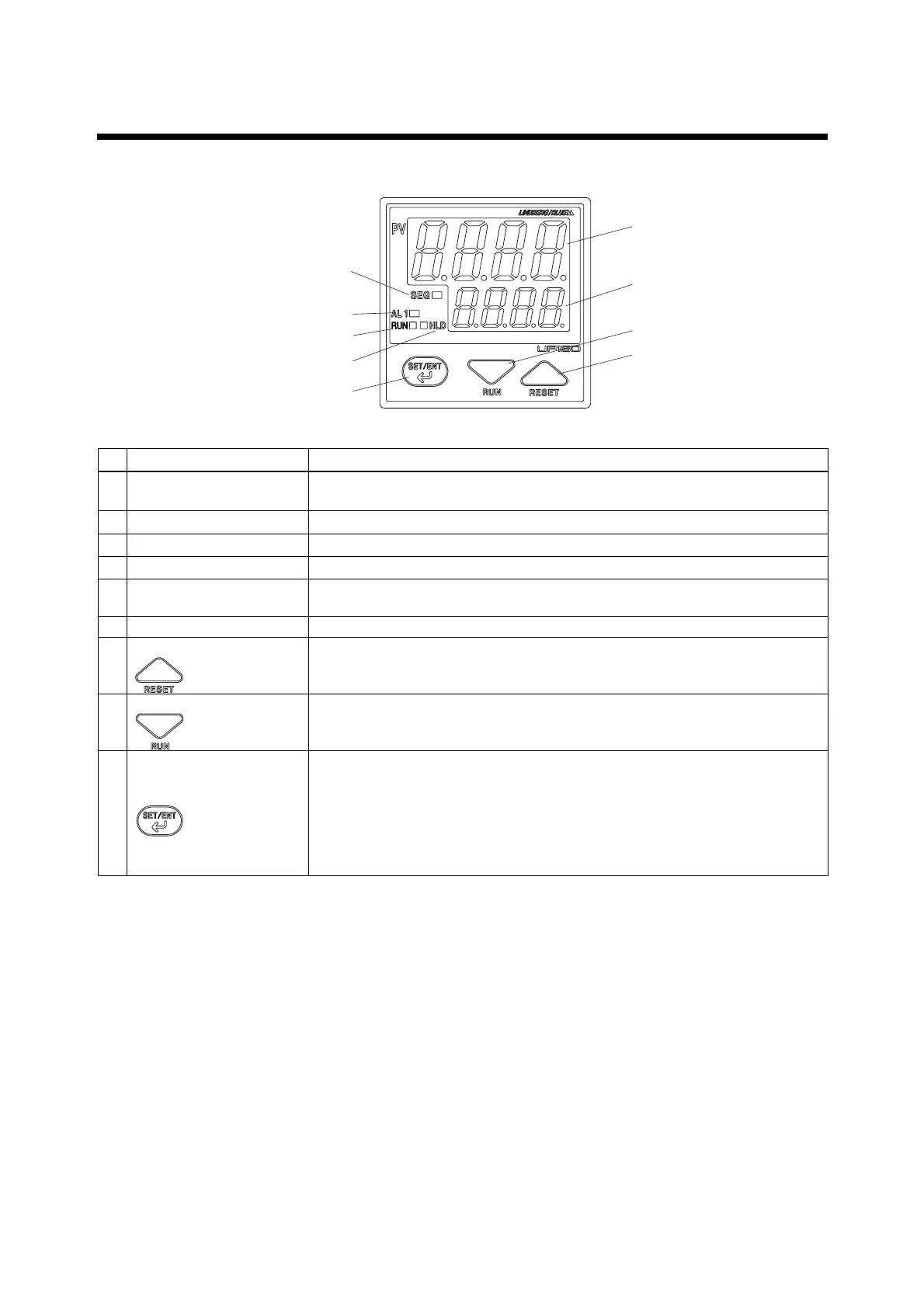

2. WHAT IS ON THE FRONT PANEL?
a. PV display (red)
Indicates PV (measured value) and character information such as parameter codes and
error codes. Indicates PV and “AT” alternately during Auto-tuning.
b. SP display (green)
Indicates SP (target setpoint) and parameter values.
d. AL1 lamp (red)
Lit when event 1 is activated.
c. SEG lamp (green)
Lit when the value of “Segment No.” or “Remaing segment time” is displayed.
e. RUN lamp (orange)
Lit while the operation mode is in “RUN”. Flashed while the operation mode is in
“WAIT”.
f. H (hold) lamp (green)
Lit while the operation mode is in “HOLD”.
g. Data change key (Reset key)
• Changes the parameter values. Pressing this key increases the data value. Holding
down the key will gradually increase the speed of changes.
• Pressing this key (in operation display) stop (resets) the program operation.
h. Data change key (Run key)
• Changes the parameter values. Pressing this key decreases the data value. Holding
down the key will gradually increase the speed of changes.
• Pressing this key (in operation display) starts (run) the program operation.
i. SET/ENT key (data
resistering key)
(Indicated as simply the
key hereafter)
• Switches the operation displays ➀, ➁ and ➂.
• Registers the data value changed using the data change keys.
• Switches between parameter setting displays sequentially.
• Pressing the key for 3 seconds or longer in the operation display retrieves the operation
parameter setting display.
• Pressing the key for 3 seconds or longer in Operating, Setup or Program parameter
setting display transfers back to operation display 1.
Name Function
a.
b.
h.
g.
c.
e.
d.
f.
i.
