YOKOGAWA UP150 User Manual

IM 05C01F12-41E
11
The controller is shipped with the parameters set at the factory-set defaults. Check the default values
against the “Parameter Lists” in the page 14 and 15, and change the parameter setpoints that need to be
changed.
Changing certain setup parameter may atomatically initialize the operating parameters. Therefore, after you
change the setup parameters, always check the operating parameter setpoints to find out if appropriate
values have been set for them. If the operating parameters have been initialized, set them to their appropri-
ate values.

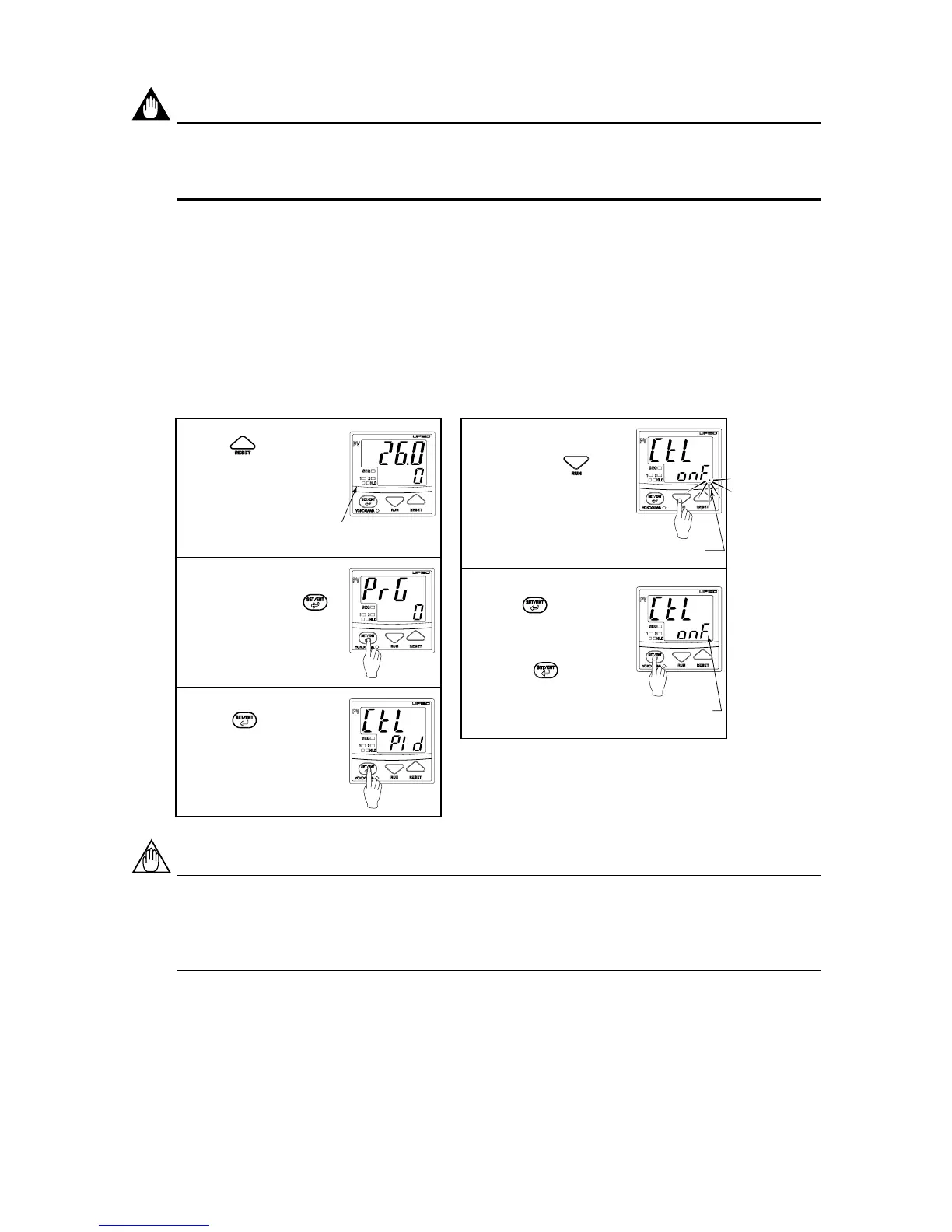

Step 2:
To enter the operating parameter
setting display, press the
key for at least 3 seconds.
• “PRG” parameter appears in
the PV display.
Step 3:
Press the key once to
display “CTL” parameter.
In this example, PID control mode
is selected.
Step 4:
When On/off control mode is
required, press the key to
change control mode to On/off.
■ Changing Control Mode (CTL)
The period flashes.
Step 5:
Press the key once to
register the setting.
Control mode is now changed.
To return to the operating display
➀, press the key for at least
3 seconds.
The period goes out.
Step 1:
Press the key for at least 1
second to reset the program
operation, and confirm that the
UP150 shows the operating
display ➀, ➁ or ➂.
Confirm that “RUN”
lamp is not lit.
EV
RUN
EV
RUN
EV
RUN
EV
RUN
EV
RUN
This section explains how to set and register parameter values.
The procedure for changing Control Mode (CTL) can be found on “Changing Control Mode (CTL).”
You can set the other parameters in the same way.
There are no parameter displays for parameters specific to functions, such as the optional external contact inputs func-
tions, if they were not selected at ordering.
