■ HOLD Function
During program operation, the time of “segment time” can be stopped by “HOLD function”.
When the controller is in “Hold”, the time of time events are also stopped. (PV events do not stop at this time.)
When program operation is held, time event and segment time are extended only by amount of the hold.

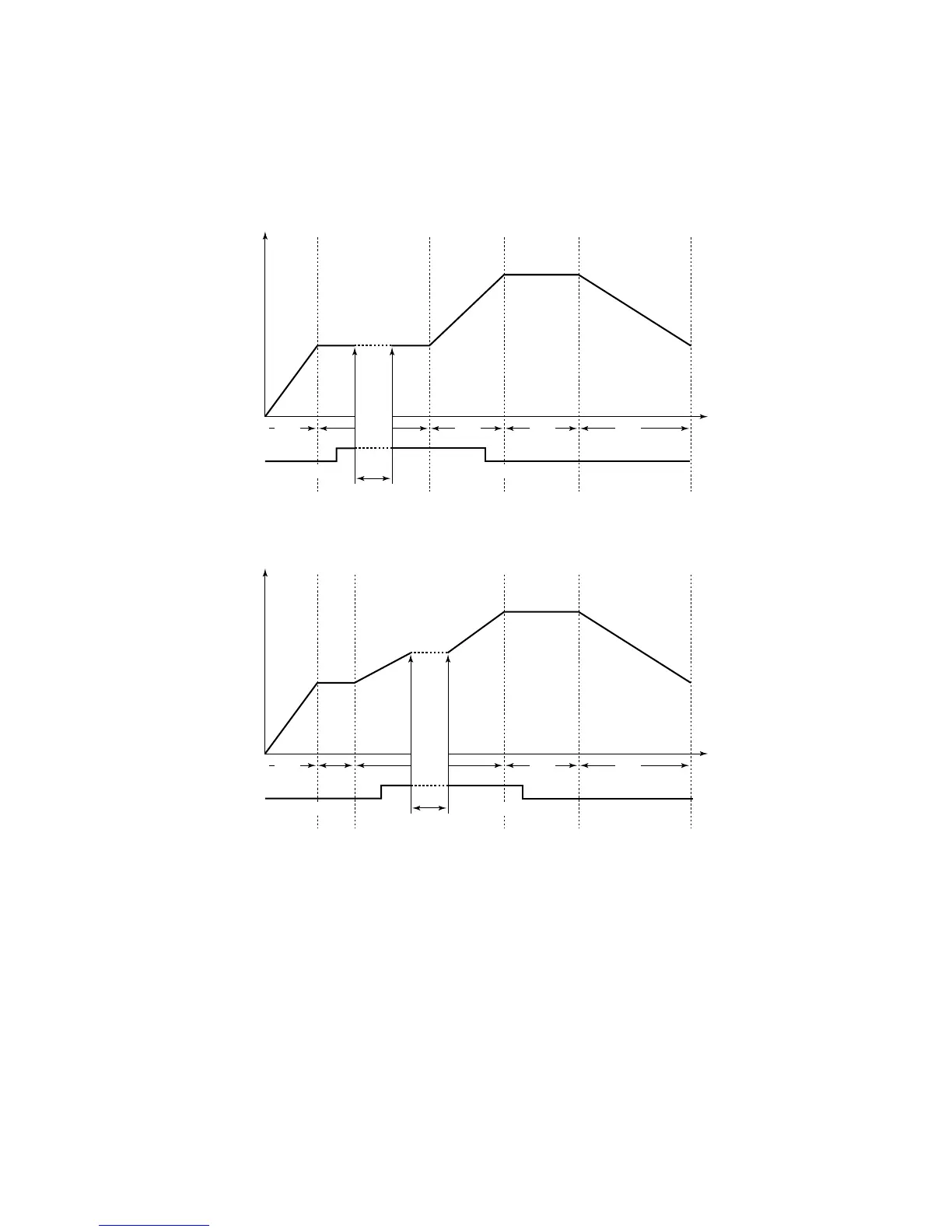

(1) “Hold” in soak segment
TM1
TM2
TM3
Time
ON time OFF time
SEG1
PV
SEG2 SEG3 SEG4 SEG5
SP1
SP2
SP3
SP4
SP5
Hold section
(timer stops)
Time event 1
TM4 TM5
(2) “Hold” in ramp segment
TM1
TM3
TM2
TM4 TM5
Time
ON time OFF time
PV
SEG2SEG1 SEG3 SEG4 SEG5
SP1 SP2
SP3
SP4
SP5
Hold section
(timer stops)
Time event 1
The SP value
does not change
in Hold section
