8. PROGRAMMING
To operate the controller using a program, first create the program. The UP150 have one program pattern.
Program operation is based on a program pattern consisting of up to 16 segments as shown in the figure below. To
create a program pattern, set the target setpoint to be reached and segment time for each segment. Tow PV events
and/or two time events can be set for a program.
0°C
50°C
EOFF
EON
100°C
30
Min.
30
Min.
20
Min.
30
Min.
30
Min.
35
Min.
30
Min.
Segment No.
Target setpoint (SP)
Segment time (TM)
(hour.minute or minute.second)
Use the TMU setup parameter to set
the time unit.
EON1
EOF1
AL1
A1
HY1
EON2
EOF2
AL2
A2
HY2
0:30
1:20
1(PV high limit)
110°C
10°C
Time event 1
(EV1=1)
PV event 1
(EV1=0)
Time event 2
(EV2=1)
PV event 2
(EV2=0)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
50°C 50°C 100°C 100°C 50°C 50°C 0°C
0:30 0:30 0:20 0:30 0:30 0:35 0:30
100%
RH
Maximum value of
measured input
range (scale)
Minimum value of
measured input
range (scale)
(Note) Displayed only for DC voltage input.
0%
RL
PV high limit (110°C)
0:30 (EVENT ON)
1:20 (EVENT OFF)
(Note)
(Note)
Measured Input
Range (Scale)
Starting target setpoint value (SSP)
Start code (STC)
Junction code (JC)
0 °C
0 (program operation begins with the starting target setpoint)
0 (reset)
Can not be used in this example because Event 1 is used as time event.
Can not be used in this example because Event 2 is used as PV event.

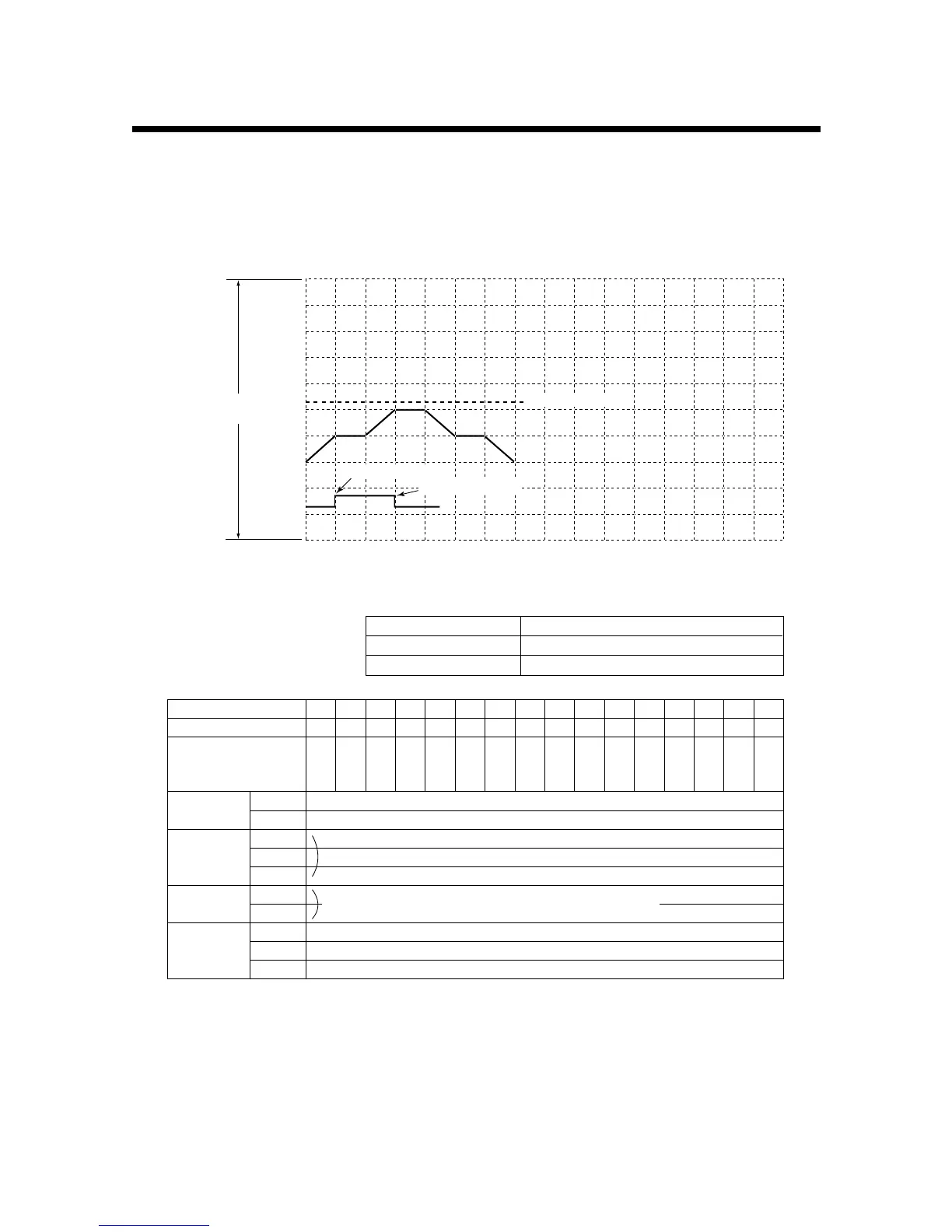

Example of Program Pattern Settings
