IM 05C01F12-41E
30

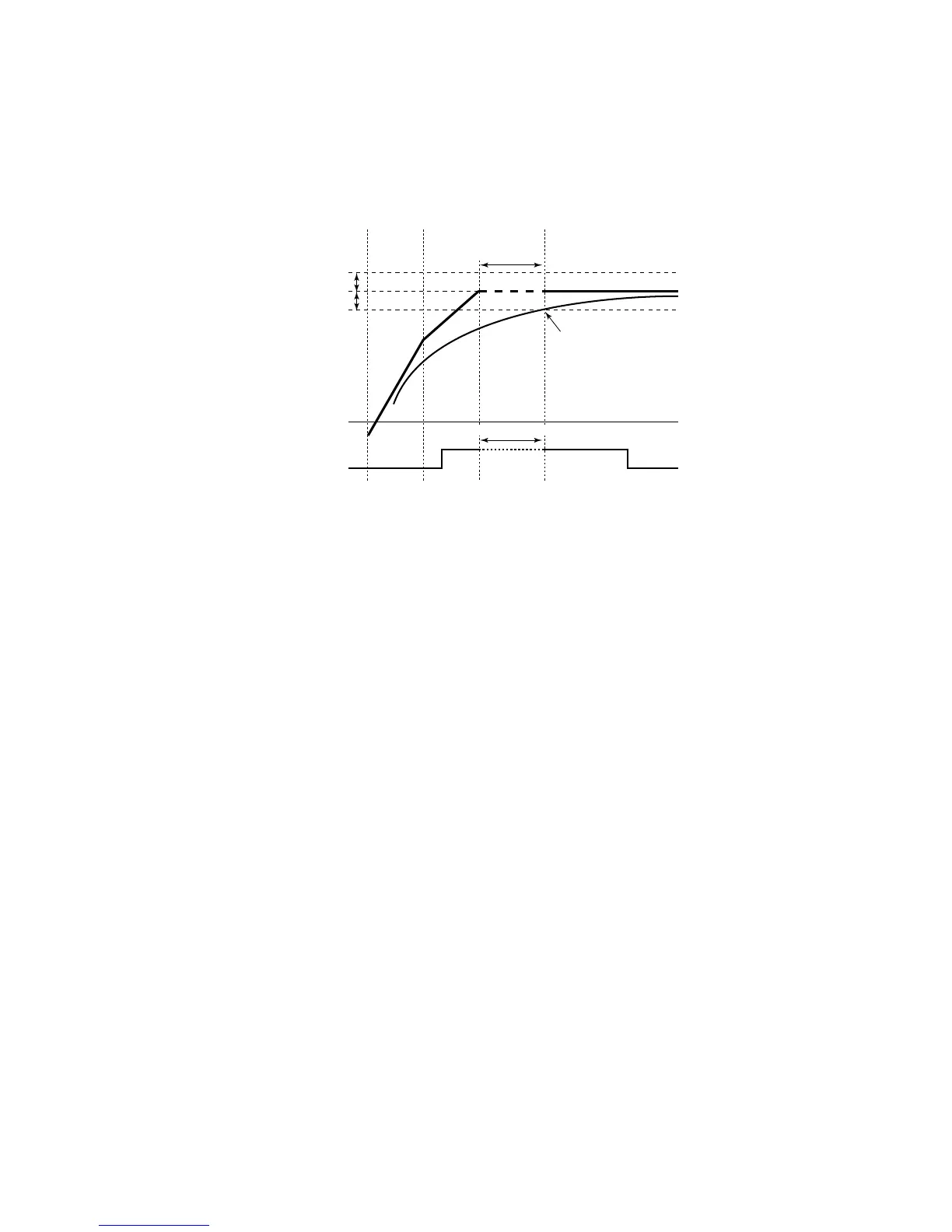

■ Wait Operation
During a segment transition, wait operation brings the transition to be next segment into a wait (standby) state,
using the wait zone, until the deviation is canceled. The wait zone is a span of deviation that determines to what
degree a PV input is tracked.
Wait operation is available only at a segment junction that transfers from ramp to soak.
Wait Zone WTZ
Wait Zone WTZ
Time event
SEGn–1 SEGn SEGn+1
The controller (UP150)
can move to the next
segment (SEGn+1) when
the PV reaches wait zone.
The time is not elapsed
Wait time
During the “wait”, the timer for the program pattern progress stops, so that time event (EVn) is held. (RUN lamp
flashes.)
The PV event does not stop even if the controller is in the “wait”.
To Next Page
