YOKOGAWA UP150 User Manual

IM 05C01F12-41E
14
CTL
Control mode
ONF(0): On/off control
PID(1): PID control
OFF(0): Cancel Hold
ON(1): Hold
(Displayed when a program operation is started.)
PID(1)
AT
Auto-tuning
OFF(0): Stop auto-tuning
ON(1): Start auto-tuning
(Displayed when a program operation is started.)
OFF(0)
P
Proportional
band
1°C/°F to the temperature that corresponds to 100% of the
measured input range (scale) span
5% of measured input
range (scale) span
I
Integral time
1 to 3600 seconds;
OFF(0): No integral action
240 seconds
D
Derivative
time
1 to 3600 seconds;
OFF(0): No derivative action
60 seconds
MR
Manual reset
50.0%
–100 to 100%
HYS
Hysteresis for
on/off control
0°C/°F to the temperature that corresponds to 100% of the
measured input range (scale) span
0.5% of measured
input range (scale)
span
CT
Control output
cycle time
1 to 240 seconds
30 seconds
FL
PV input filter
OFF(0), 1 to 120 seconds
OFF(0)
BS
PV input bias
–100 to 100% of measured input range (scale) span
0% of measured input
range (scale) span
LOC
Key lock
0
(1) Operating Parameters
HOLD
Program hold
OFF(0)
OFF(0): Not execute advance
ON(1): Execute advance
(Displayed when a program operation is started.)
ADV
Segment
advance
OFF(0)
Program
parameter
setting
0: Go to “CTL” setting display.
1: Enter the program parameter setting display
(Displayed when a program operation is stpped.)
0
PRG
0: No key lock (Note)
1: No key lock (Note)
2: Prevents all parameter changing operations
–1: Set ⬙-1⬙ to enter the setup parameter setting display.
But if ⬙LOC=1 or 2⬙ is already set, the parameter value can
not be changed by setting ⬙LOC=-1⬙ only. To change the
parameter value, set ⬙LOC=0⬙ at first (for disabling keylock),
then set ⬙LOC=-1⬙ once again.
(Note) Both 0 and 1 are No key lock.

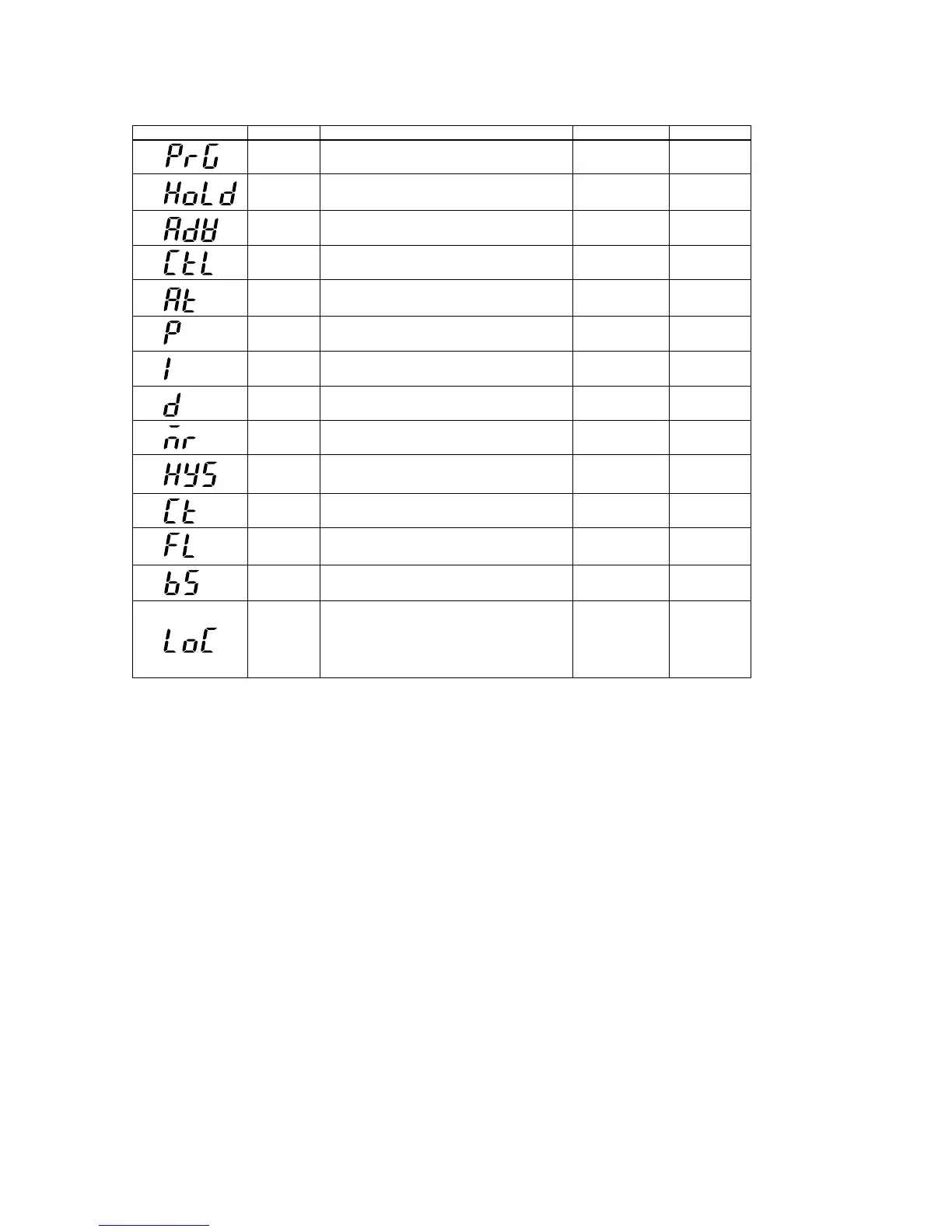

■ Parameter Lists
Code Setting range and unit Default User settingName
Numbers in ( ) are the parmeter setpoints that apply when the
communication function is used. Ex. OFF(0), ON(1)
Parameters changed rather frequently during operation.
When creating a program, set the prameter PRG=1 to display the
program parameter setting display.
