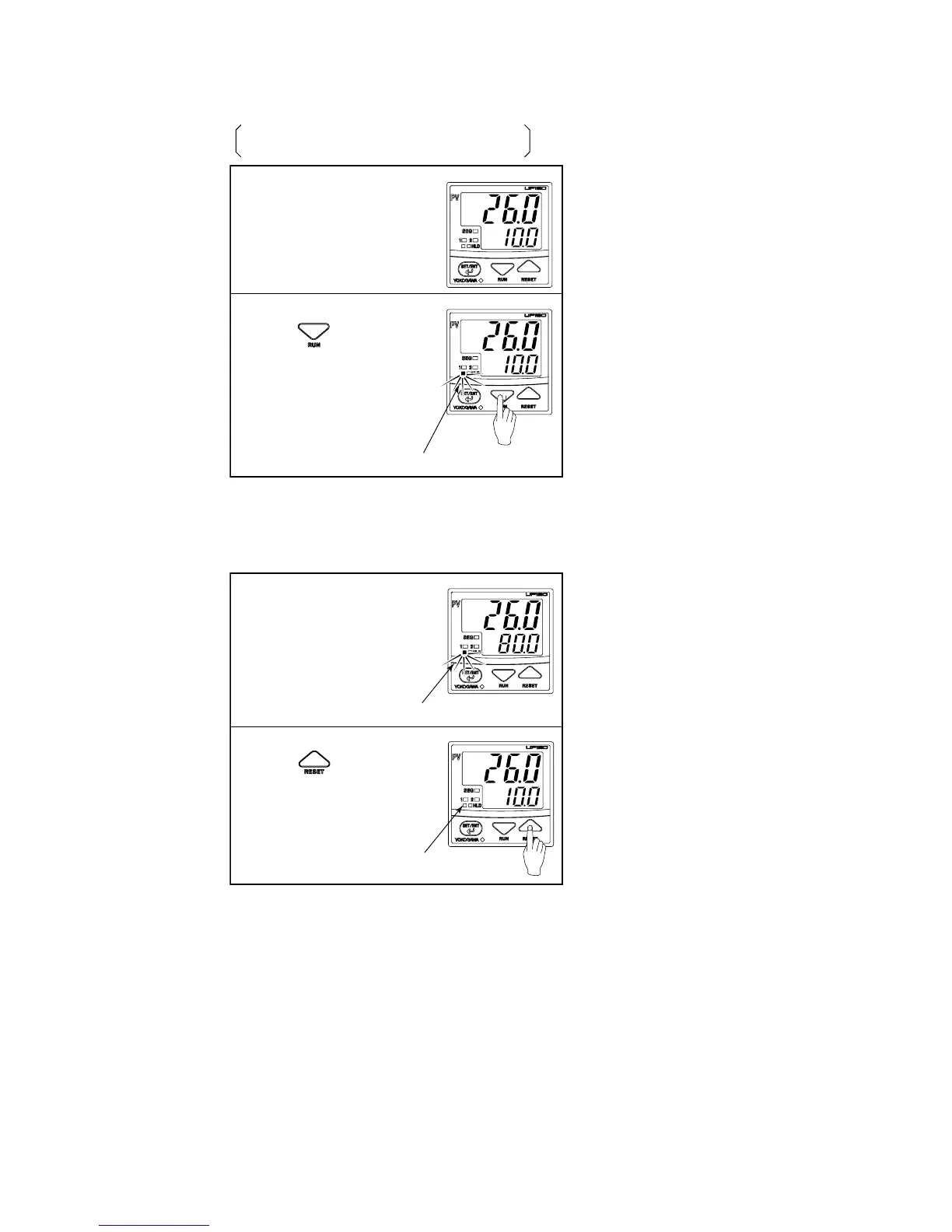

Step 2:
Press the key for at least 1
second.
“RUN” lamp is lit, and starts the
program operation.
Step 1:
Confirm that the controller shows
the operating display ➀, ➁ or ➂.
“Creating the program” must be finished before
starting program operation.
“RUN” lamp is lit.
EV
RUN
EV
RUN
Step 2:
Press the key for at least 1
second.
“RUN” lamp goes out, and
resets(stops) the program
operation.
Step 1:
Confirm that the controller is in
program operation.
“RUN” lamp goes out.
“RUN” lamp is lit.
Note:
➀ “Program operation” mode can be changed (run/reset) by key
operation, communication or external contact input signal.
➁ When the program operation is reset (stopped), control action is
also stopped, and the control output is to be 0% or OFF.
EV
RUN
EV
RUN
■ Start Program Operation
■ Reset (Stop) Program Operation
