IM 05C01F12-41E
7
● Cable Specifications and Recommended Products
● Recommended Terminals

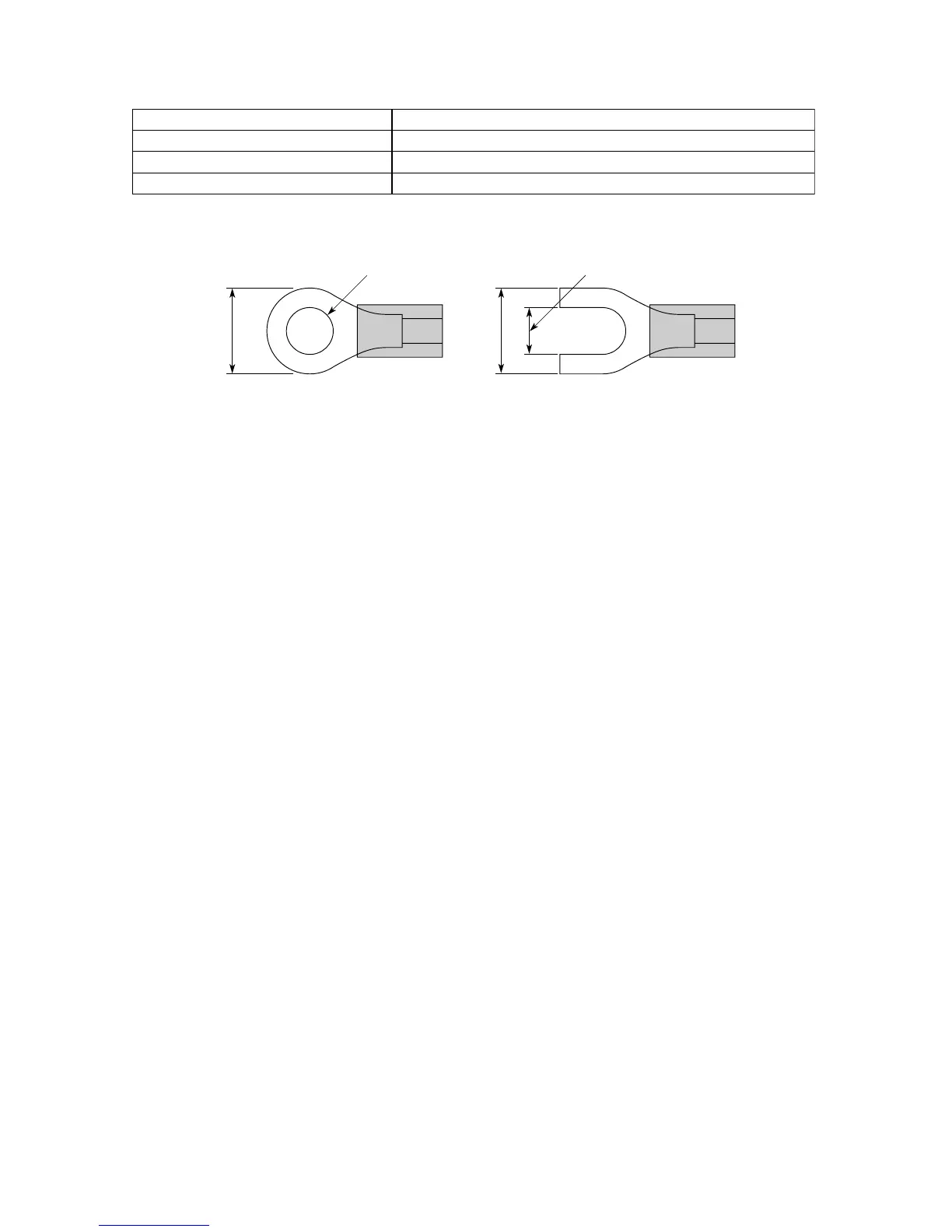

Use M3.5 screw-compatible crimp-on terminals with an insulating sleeve, as shown below.
Power supply and relay contact output
600V vinyl insulated wire/cable, JIS C3307, 0.9 to 2.0mm
2
Shielded wire (3-wire), UL2482 (Hitachi cable)
Thermocouple input
Shielded compensating lead wire, JIS C1610
RTD input
Other signals
Shielded wire
7mm or less
7mm or less
ø 3.7mm ø 3.7mm
