1. Product name and model
Intelligent LCD display for e-bike; model: YL81C.
2. Specifications
 36V/48V power supply
 Rated working current 15mA
 Maximum working current 30mA
 Leakage current at power-off <1uA
 Working current at the supply controller end 50mA
 Working temperature -20～60
 Storage temperature -30～70
3. Appearance and dimensions

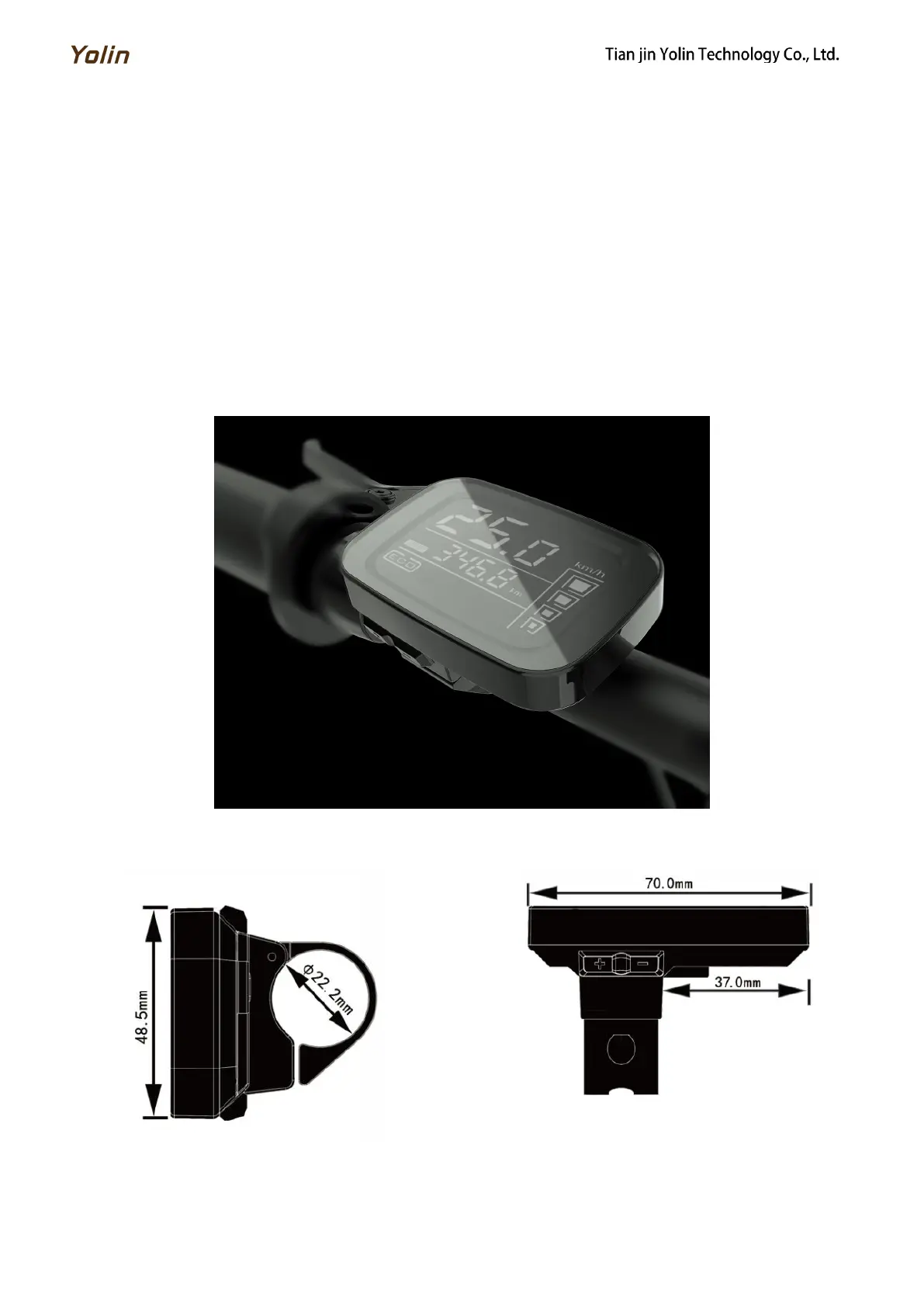

Fig. 3-1 Picture of Display 81C
Fig. 3-2 Top View of Display 81C Dimensions
Fig. 3-3 Side View of Display 81C Dimensions
