York 480 - UNIT DIMENSIONS AND CONNECTIONS; UNIT DIMENSIONS (LA300, LB360, LB480)

036-21335-002-A-1102
Unitary Products Group 11

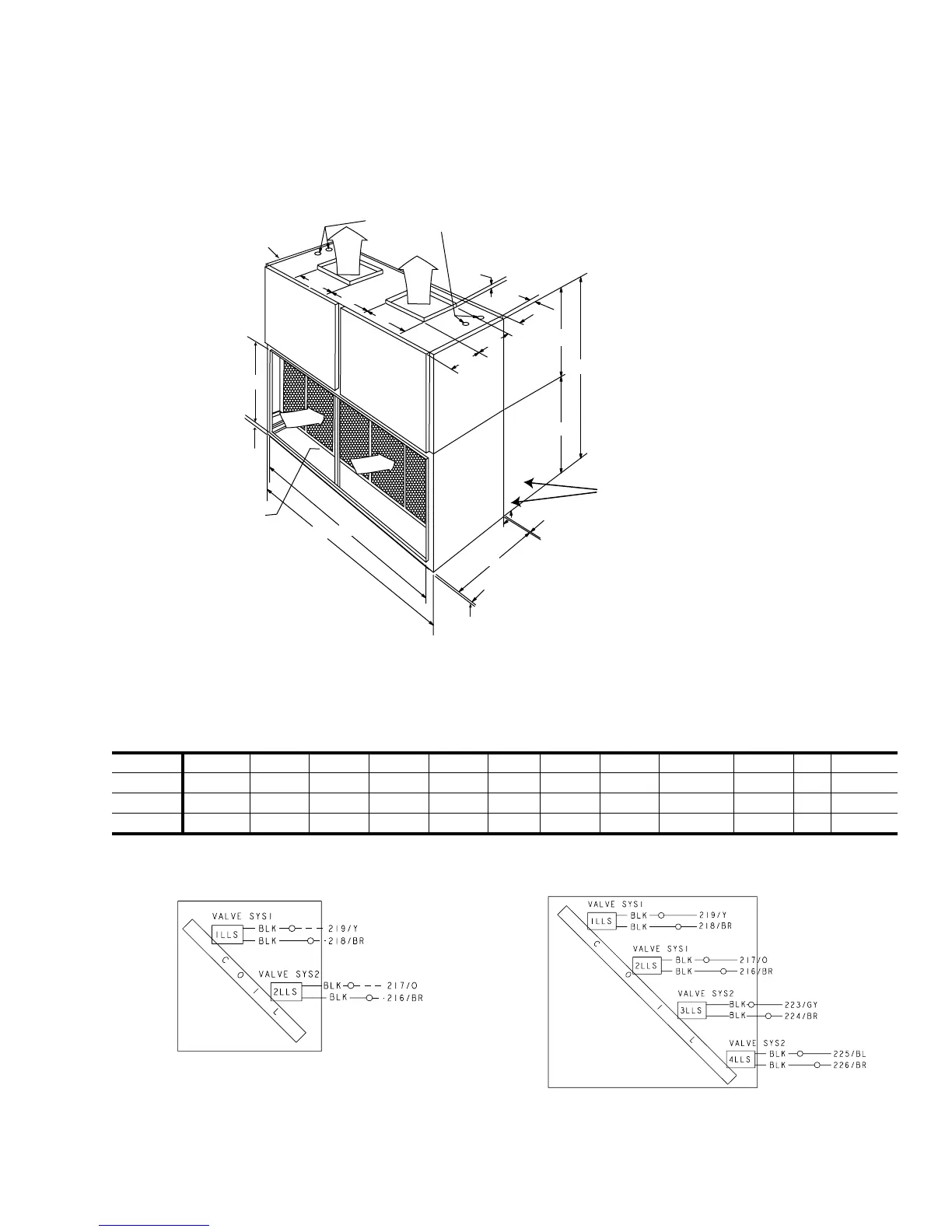

FIGURE 5: UNIT DIMENSIONS - LA300, LB360 & LB480
AIR
OUT
AIR
OUT
AIR
IN
AIR
IN
5/8
5/8
5/8 PANEL
5/8 BOTTOM
PANEL
7/8 KNOCKOUTS FOR POWER
AND CONTROL WIRING
M
C
A
B
EVAPORATOR
COIL SECTION
D
D
D
E
LESS
BOTTOM
PANEL
{
BLOWER
SECTION
J
L
K
K
See detailed drawings for piping
and drain connections
on following pages.
EVAPORATOR
SECTION
TABLE 12: UNIT DIMENSIONS - LA300, LB360, LB480
MODEL
A BCDEFGH J KLM
LA300
100-1/8 95-5/8 33-1/4 36-5/8 74 2-1/2 18-7/8 16-1/2 15-13/16 21-7/8 18 22-9/16
LB360
100-1/8 95-5/8 33-1/4 36-5/8 74 2-1/2 18-7/8 16-1/2 15-13/16 21-7/8 18 22-9/16
LB480
103-1/8 95-5/8 40-5/8 44 88-5/8 2-1/2 18-7/8 23-7/8 20-11/16 21-7/8 18 22-11/16
FIGURE 6: 25 TON LIQUID LINE SOLENOID
WIRING
FIGURE 7: 30, 40 & 50 TON LIQUID LINE
SOLENOID WIRING
