York 480 - LB600 SPECIFIC DETAILS; LB600 UNIT DIMENSIONS

036-21335-002-A-1102
Unitary Products Group 13

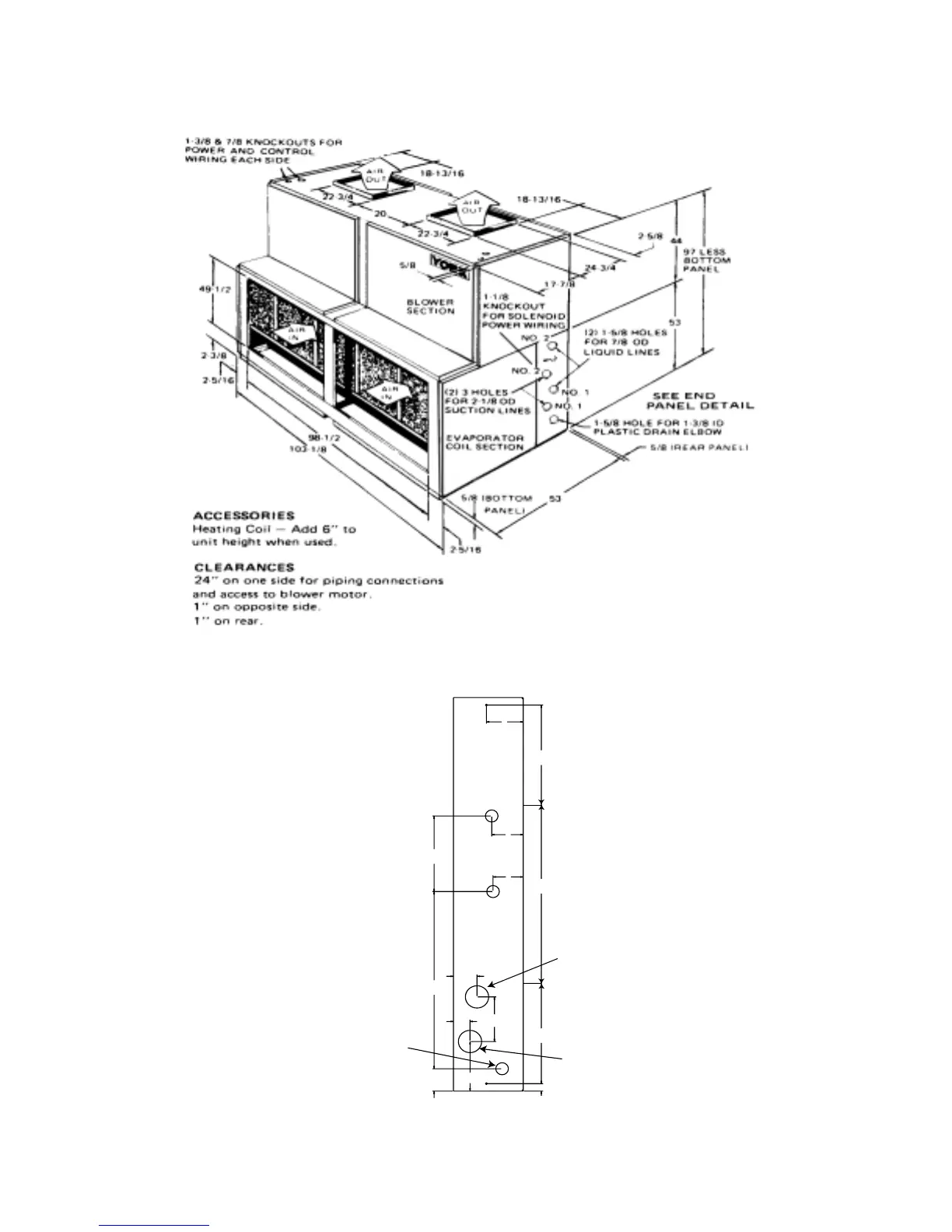

FIGURE 11: UNIT DIMENSIONS - LB600
FIGURE 12: LB600 PIPING CONNECTIONS - END PANEL DETAIL
6.7"
13.5"
6.0"
2.1"
3.0"
10.1"
23.86"
3.0"
3.8"
Liquid
Line
Sys. #2
4.0"
24.0"
13.5"
4.7"
Liquid
Line
Sys. #1
Condensate
Drain
Suction
Line
Sys. #1
Suction
Line
Sys. #2
