York Affinity BHZ024 - Weights and Dimensions; Unit 4 Point Load Weight

333495-YTG-D-0609
Johnson Controls Unitary Products 75

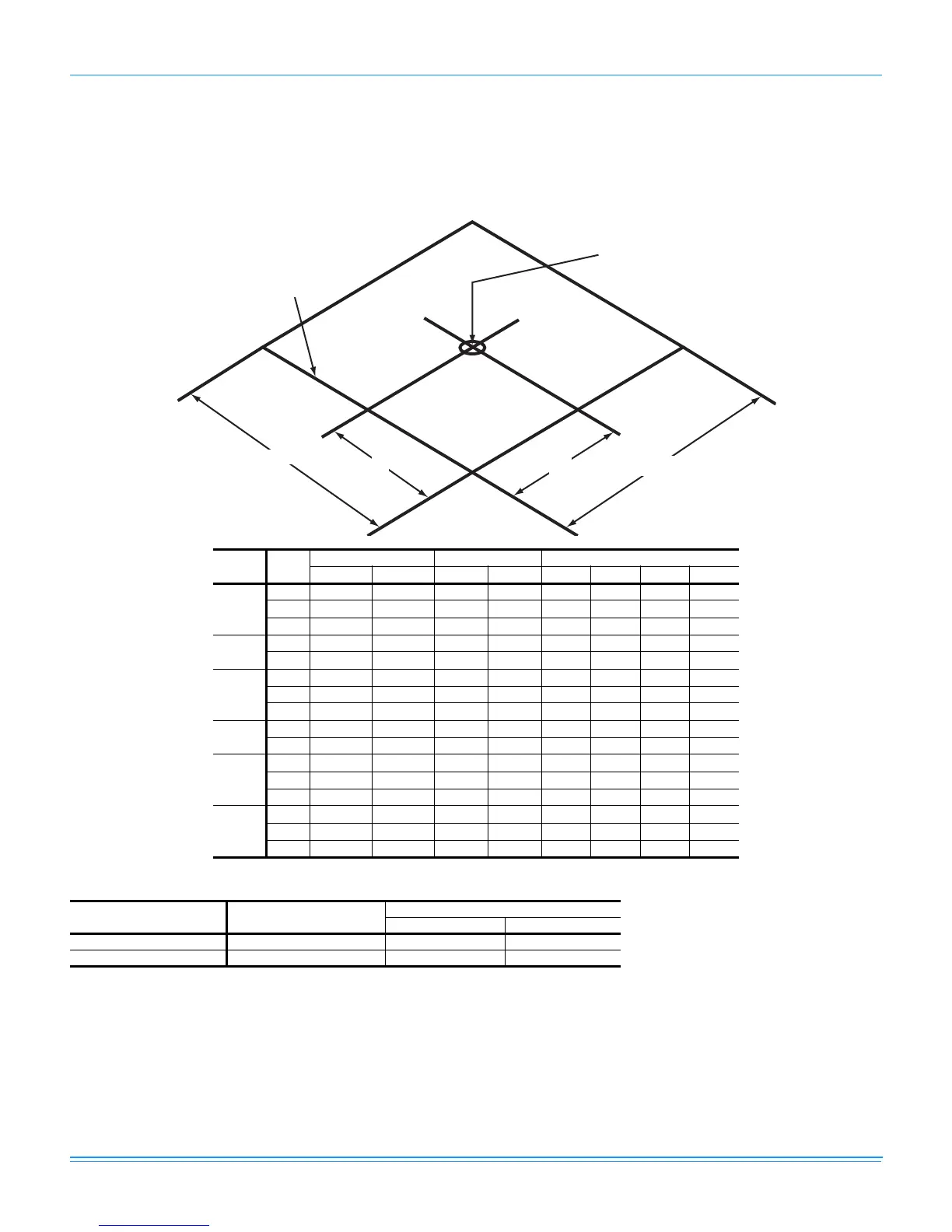

Weights and Dimensions
BHX, BHQ and BHZ Unit Weights
Unit 4 Point Load Weight
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
Shipping Operating X Y A B C D
024
(2.0)
BHZ 360 355 22.25 25 96 84 81 93
BHQ 360 355 22.25 25 96 84 81 93
BHX 385 380 22.25 25 103 90 87 100
030
(2.5)
BHZ 355 350 22.25 25 96 84 81 93
BHQ 380 375 22.25 25 102 89 86 98
036
(3.0)
BHZ 395 390 22.25 25 106 92 89 102
BHQ 405 400 22.25 25 109 95 92 105
BHX 405 400 21.75 24.25 108 90 92 110
042
(3.5)
BHZ 445 440 22.25 25 120 104 101 115
BHQ 425 420 22.25 25 114 100 96 110
048
(4.0)
BHZ 490 485 22.25 25 132 115 111 127
BHQ 445 440 22.25 25 120 104 101 115
BHX 445 440 22 26 126 107 95 112
060
(5.0)
BHZ 500 495 22.25 25 135 117 113 130
BHQ 495 490 22.25 26 137 122 109 122
BHX 465 460 22 26.25 133 113 99 116
X
CENTER OF
GRAVITY
49-1/8
FRONT
OF
UNIT
Y
47-1/4
"D"
"C"
"B"
"A"
Unit Accessory Weights
Unit Accessory Model
Weight (lbs.)
Shipping Operating
Add Economizer All 45 40
Add Electric Heat
1
BHX, BHQ and BHZ 13 12
1. Weight given is for the maximum heater size available (25 kW).
